Removal & Installation (Driver-side)

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove driver-side air bag module Torx bolts from rear of steering wheel. Pull driver-side air bag module away from steering wheel. Remove Connector Position Assurance (CPA) clip from driver-side air bag module connector and disconnect connector. See Fig 1. Disconnect horn leads. Remove driver-side air bag module.
  3. To install, reverse removal procedure. Tighten driver-side air bag module Torx bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

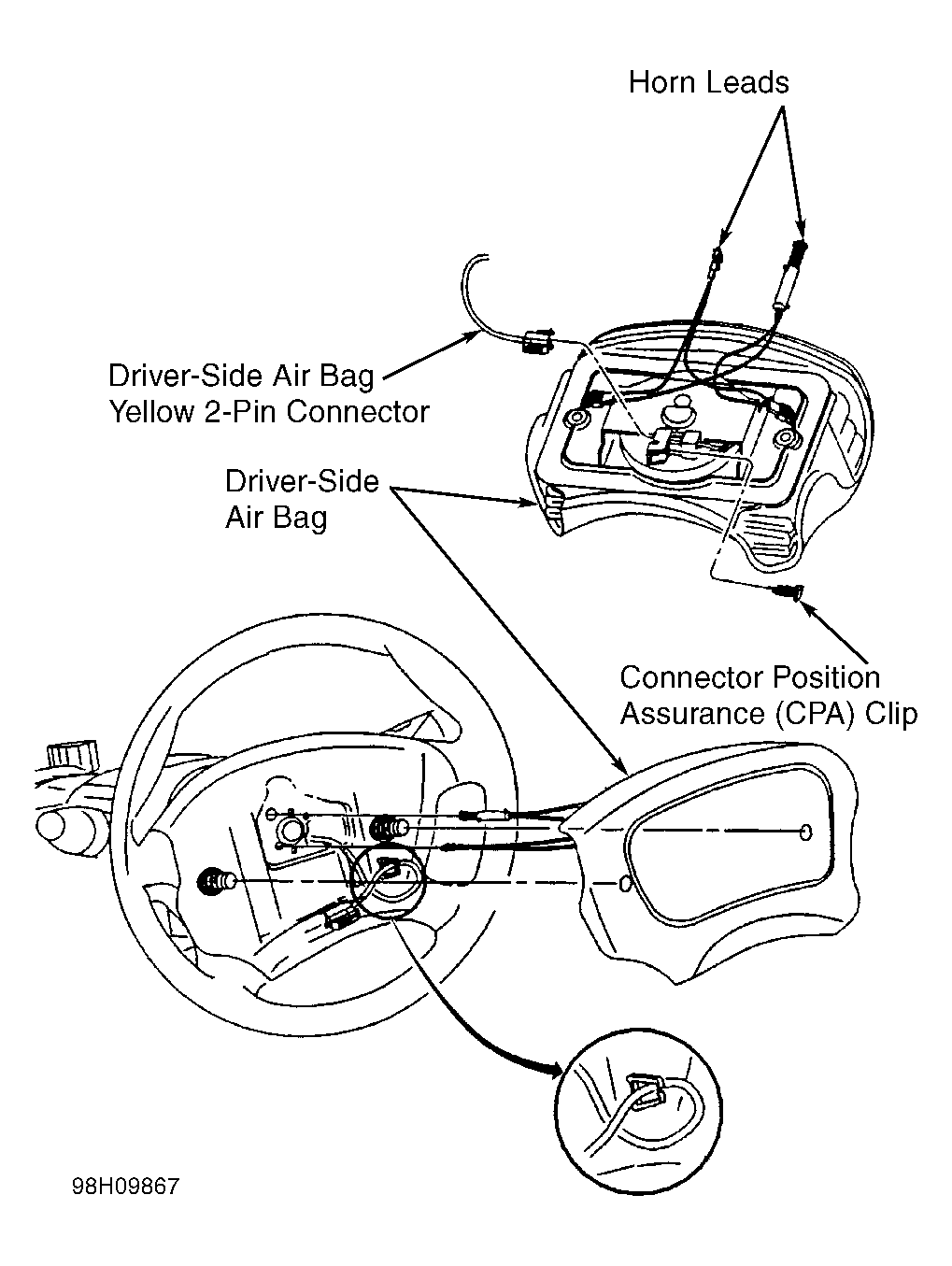

Fig 1: Identifying Driver-side Air Bag Module
G98H09867Courtesy of GENERAL MOTORS CORP.
