Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

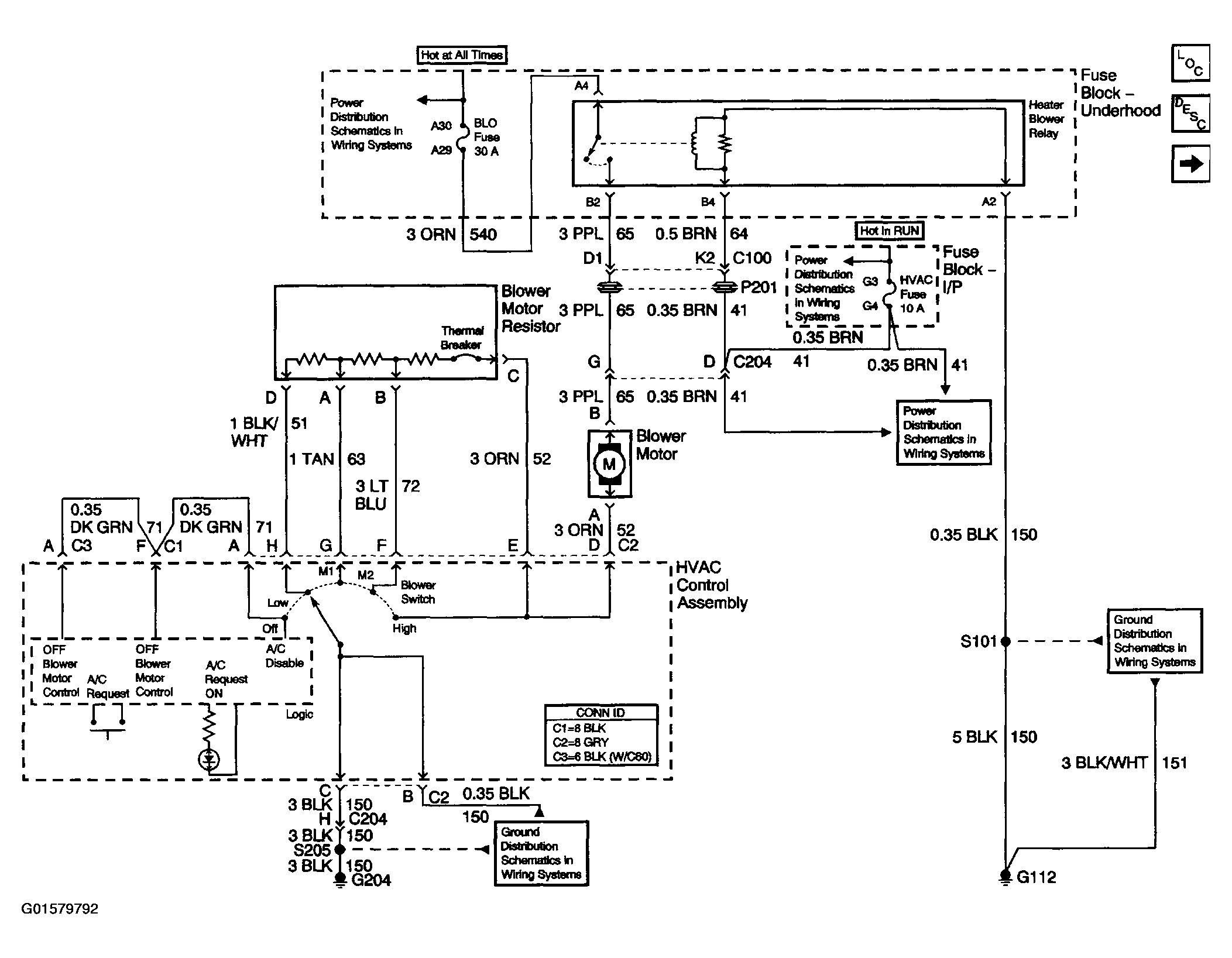

Fig 1: HVAC Schematics (Blower Controls)

Courtesy of GENERAL MOTORS CORP.

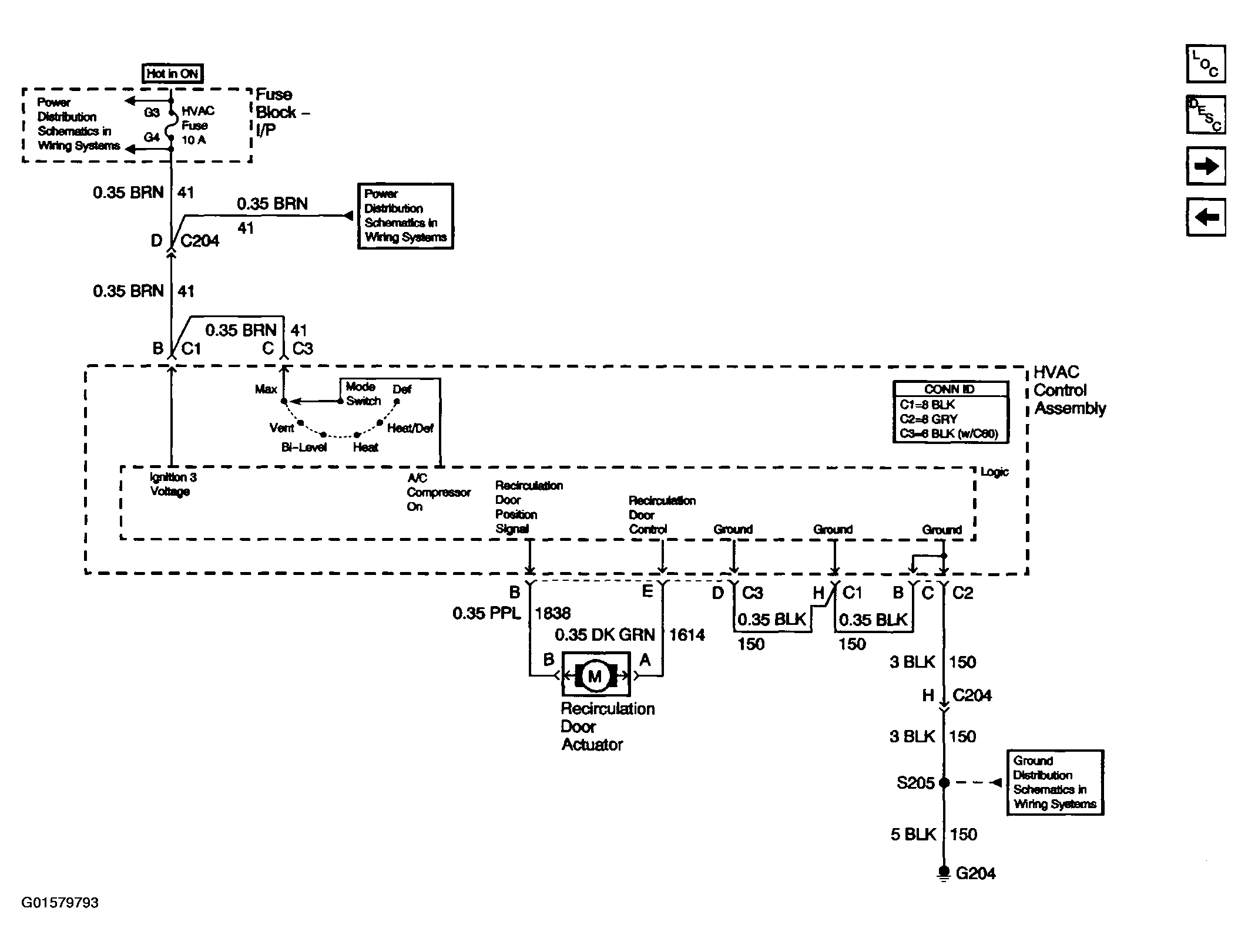

Fig 2: HVAC Schematics (Air Delivery Controls)

Courtesy of GENERAL MOTORS CORP.

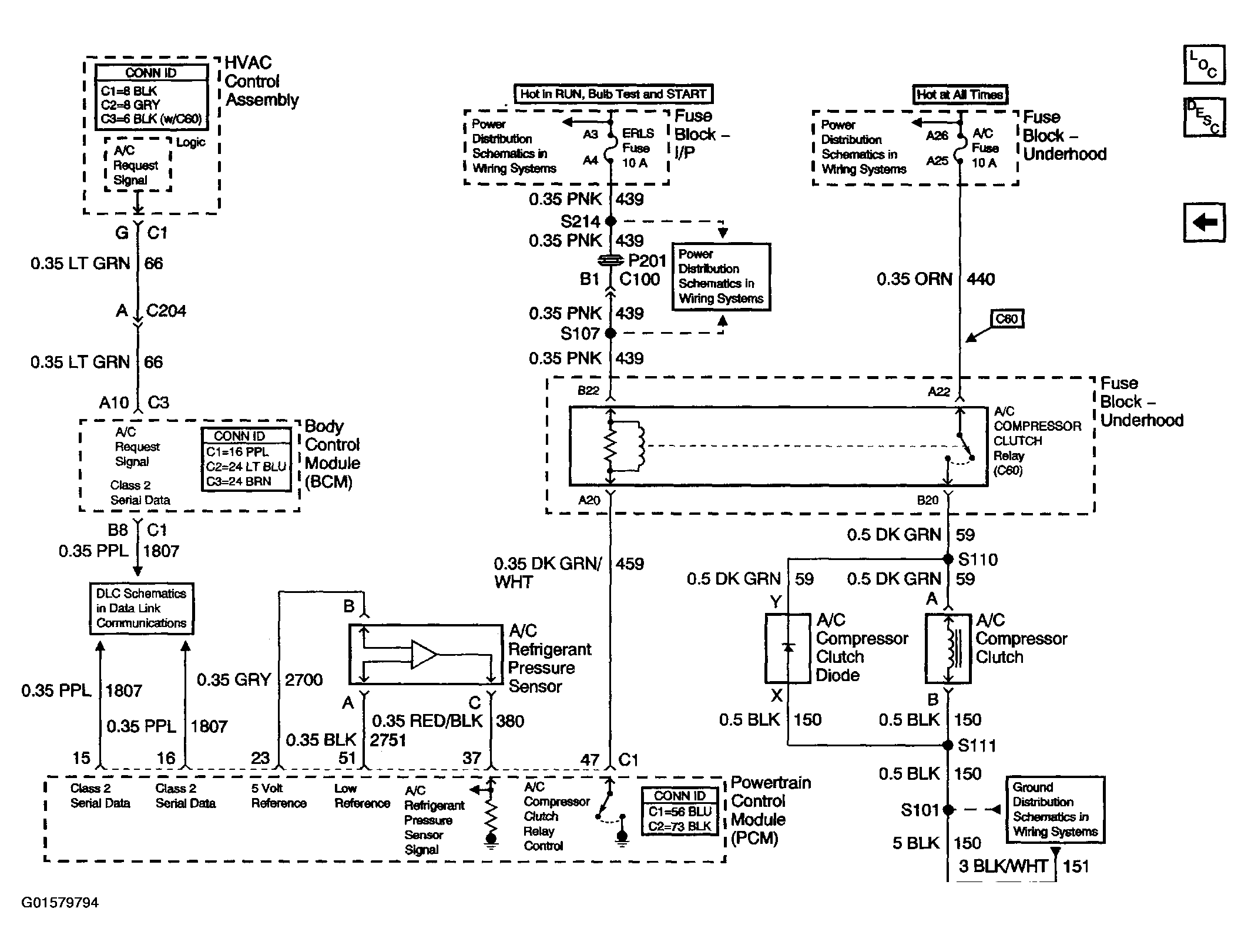

Fig 3: HVAC Schematics (Compressor Controls)

Courtesy of GENERAL MOTORS CORP.
