Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT (CHEVROLET) or INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT (PONTIAC) in Instrument Panel, Gages and Console.
  2. Disconnect the temperature control cable from the temperature door lever.

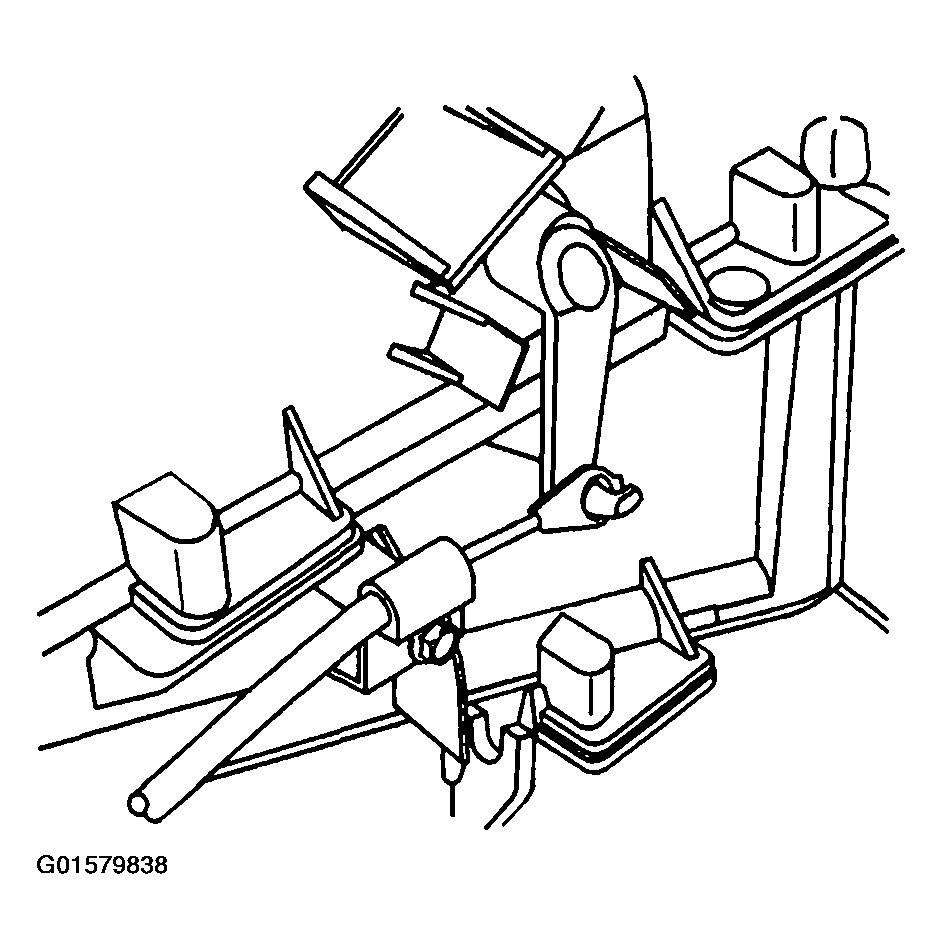

    Fig 1: Identifying Temperature Control Cable Connection At Temperature Door Lever (Pontiac)
    G01579838Courtesy of GENERAL MOTORS CORP.
  3. Remove the cable flag retaining screw.

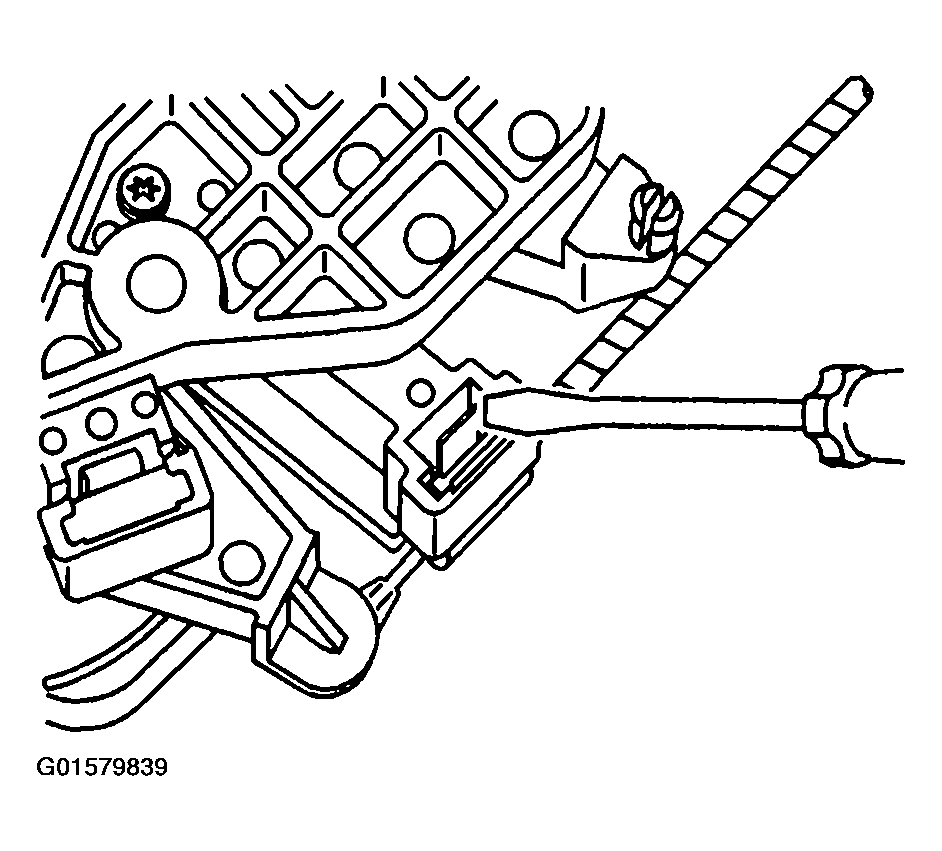

    Fig 2: Releasing Temperature Control Cable Flag From HVAC Control Assembly
    G01579839Courtesy of GENERAL MOTORS CORP.
  4. Remove the HVAC control assembly.
  5. Remove the temperature control cable.
