Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC) in Instrument Panel, Gages and Console.
  2. Disconnect the temperature control cable from the temperature door lever.

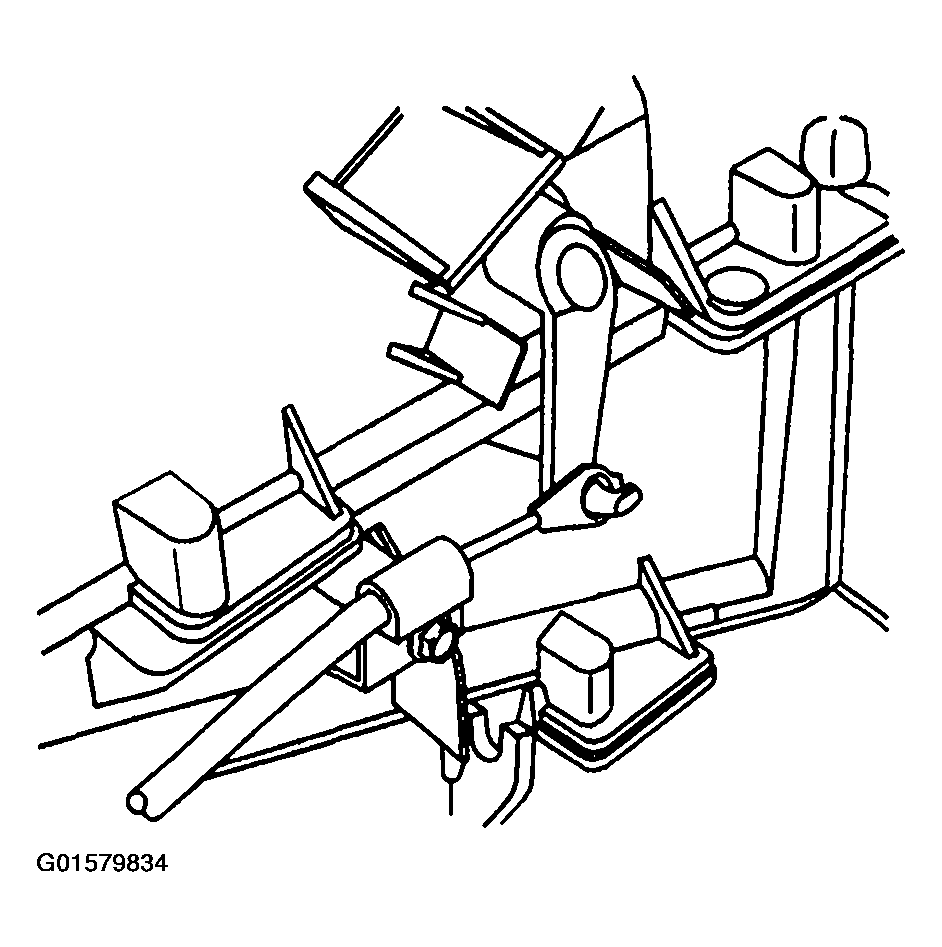

    Fig 1: Identifying Temperature Control Cable Connection At Temperature Door Lever (Chevrolet)
    G01579834Courtesy of GENERAL MOTORS CORP.
  3. Remove the cable flag retaining screw.
  4. Remove the HVAC control assembly. Refer to HVAC Control Assembly Replacement (Chevrolet)  or HVAC Control Assembly Replacement (Pontiac) .
  5. Use the tab to release the flag from the HVAC control assembly.

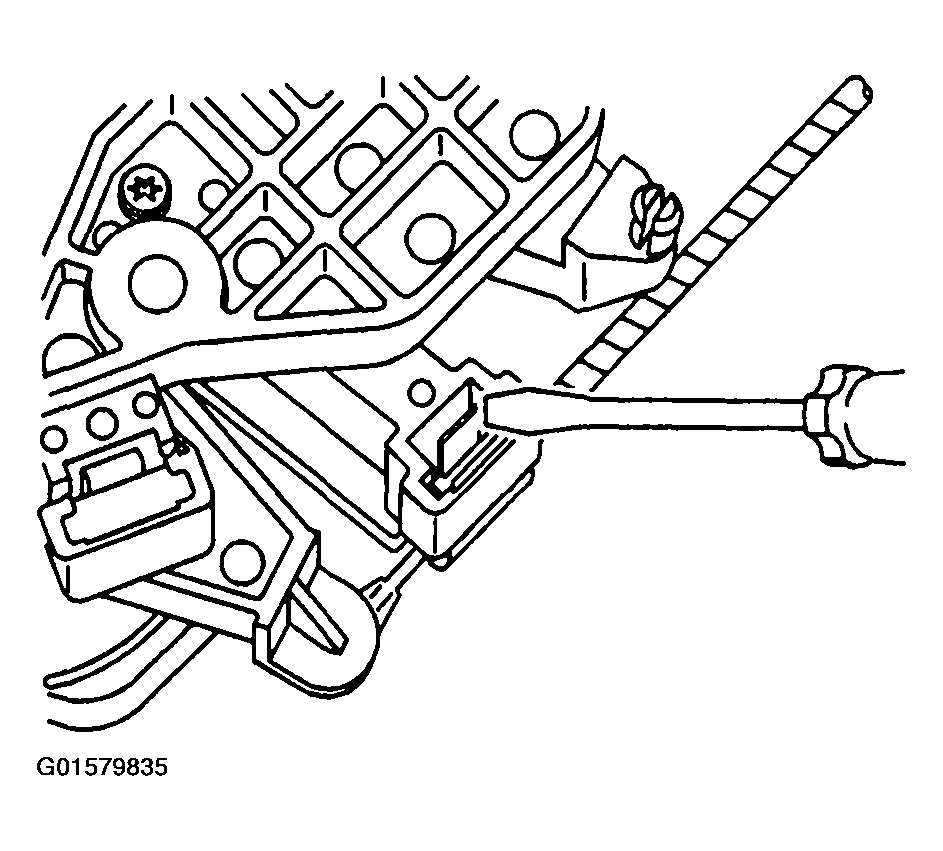

    Fig 2: Releasing Temperature Control Cable Flag From HVAC Control Assembly
    G01579835Courtesy of GENERAL MOTORS CORP.
  6. Remove the temperature control cable.
