Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the temperature control cable to the HVAC control assembly.
  2. Snap the flag into the mode base.
  3. Snap the cable end form over the lever post.
  4. Install the HVAC control assembly.
  5. Install the cable to the mode door lever/cam.

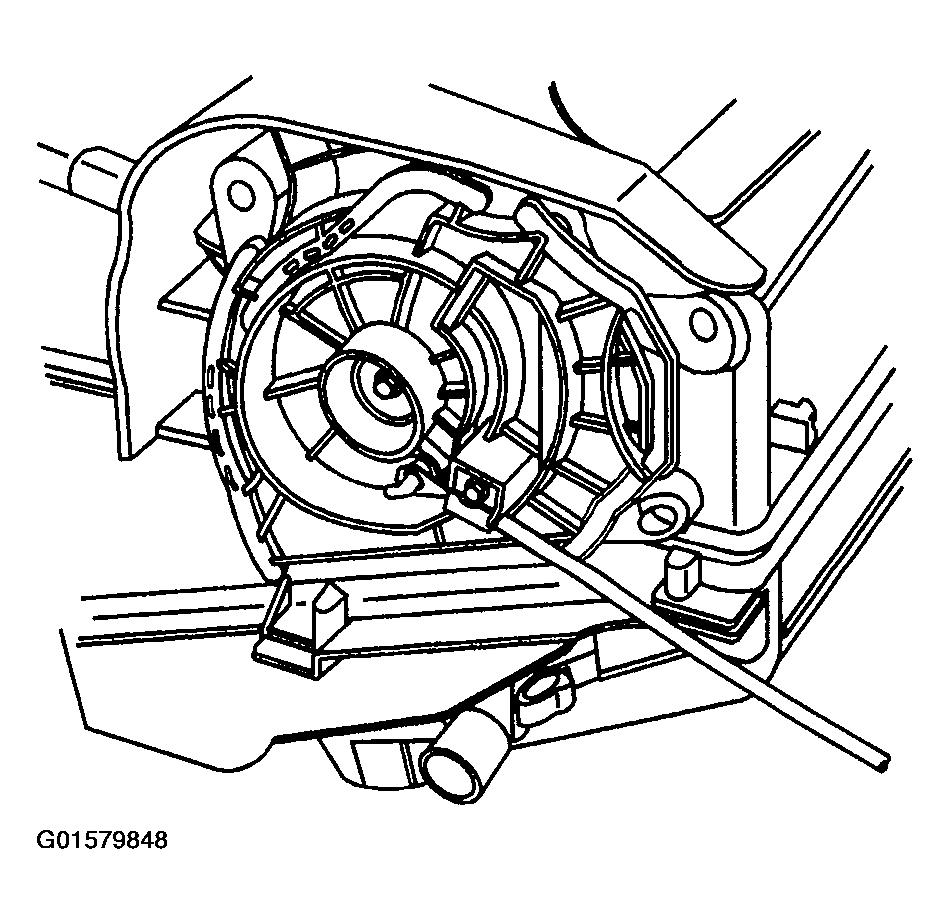

    Fig 1: Identifying Mode Control Cable At Mode Door Lever
    G01579848Courtesy of GENERAL MOTORS CORP.
  6. Install the cable flag and screw to the HVAC module assembly.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  7. Install the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT (CHEVROLET) or INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT (PONTIAC) in Instrument Panel, Gages and Console.
