Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (CHEVROLET) or TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (PONTIAC) in Instrument Panel, Gages and Console.
  2. Remove the HVAC control assembly retaining screws.

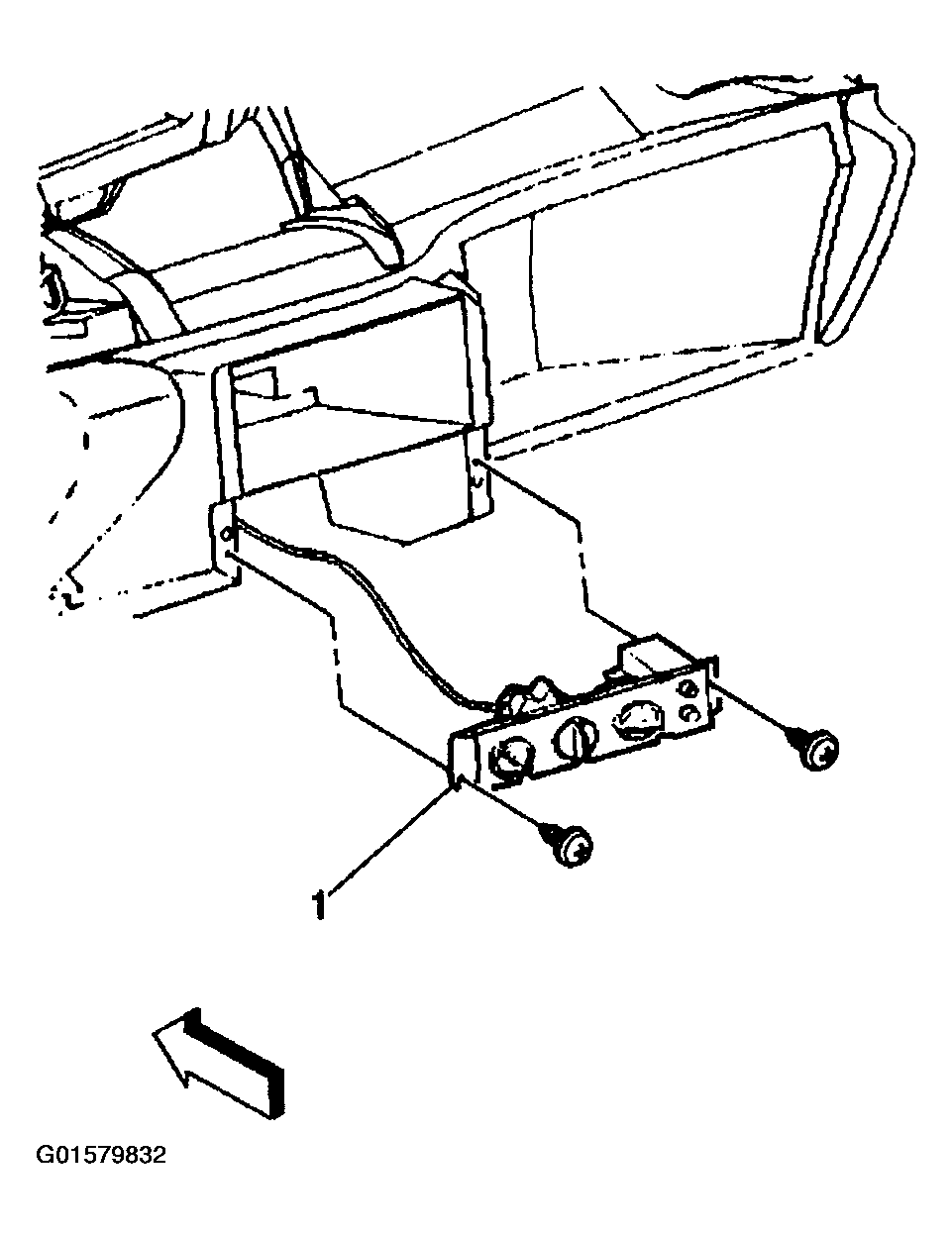

    Fig 1: Removing/Installing HVAC Control Assembly (Pontiac)
    G01579832Courtesy of GENERAL MOTORS CORP.
  3. Pull the HVAC control assembly (1) away from the I/P.
  4. Disconnect the electrical connections.
  5. Disconnect the mode control cable. Refer to Mode Control Cable Replacement (Chevrolet)  or Mode Control Cable Replacement (Pontiac) .
  6. Disconnect the temperature control cable. Refer to Temperature Control Cable Replacement (Chevrolet)  or Temperature Control Cable Replacement (Pontiac) .
