Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers in the diagnostic table.

  1. 2. This tests for the blower motor functionality.
  2. 5. This tests for the A/C compressor clutch always on.
  3. 7. This test is to insure the cooling system is operating normally.

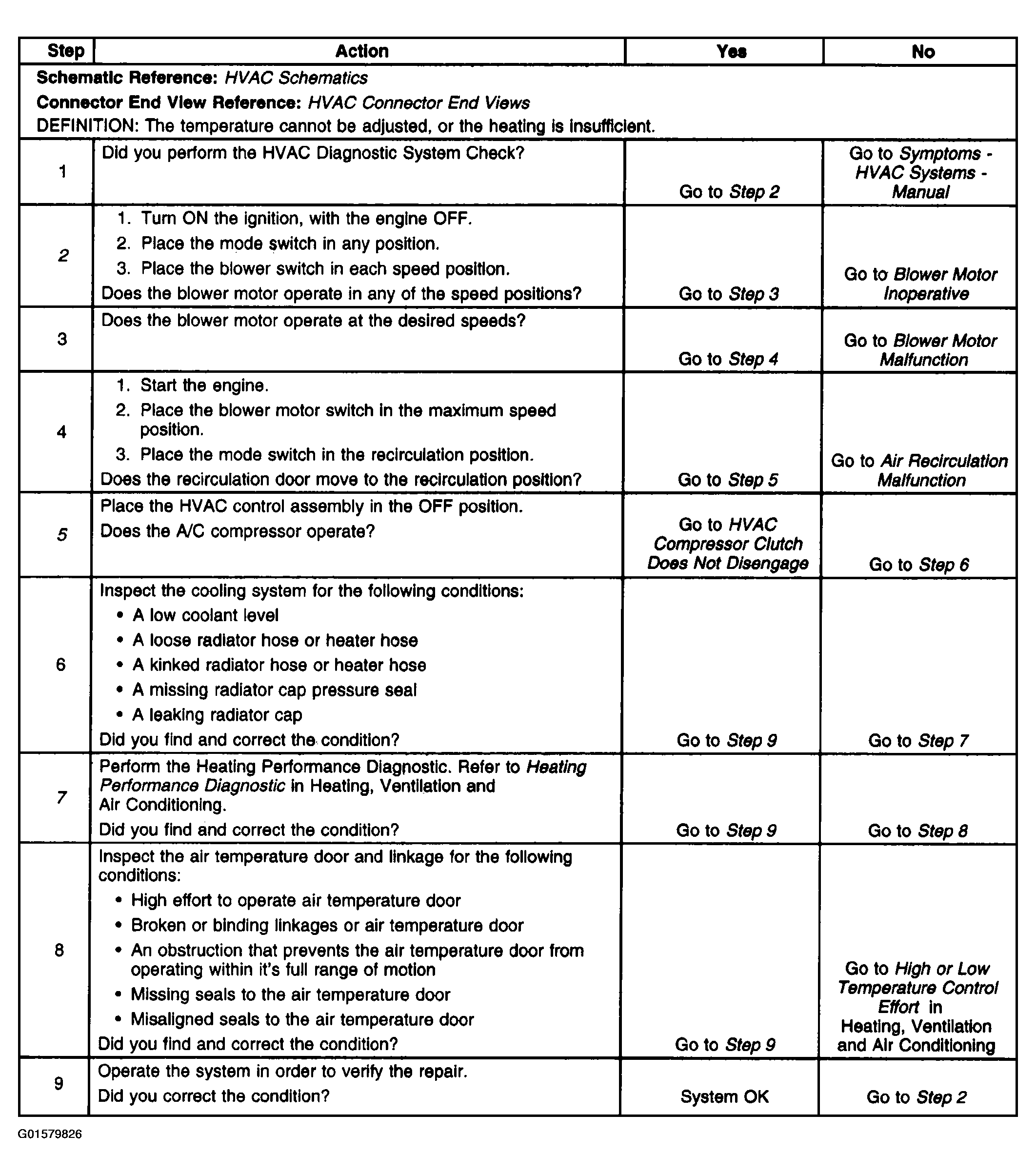

Fig 1: Too Cold in Vehicle
G01579826Courtesy of GENERAL MOTORS CORP.
