HVAC Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

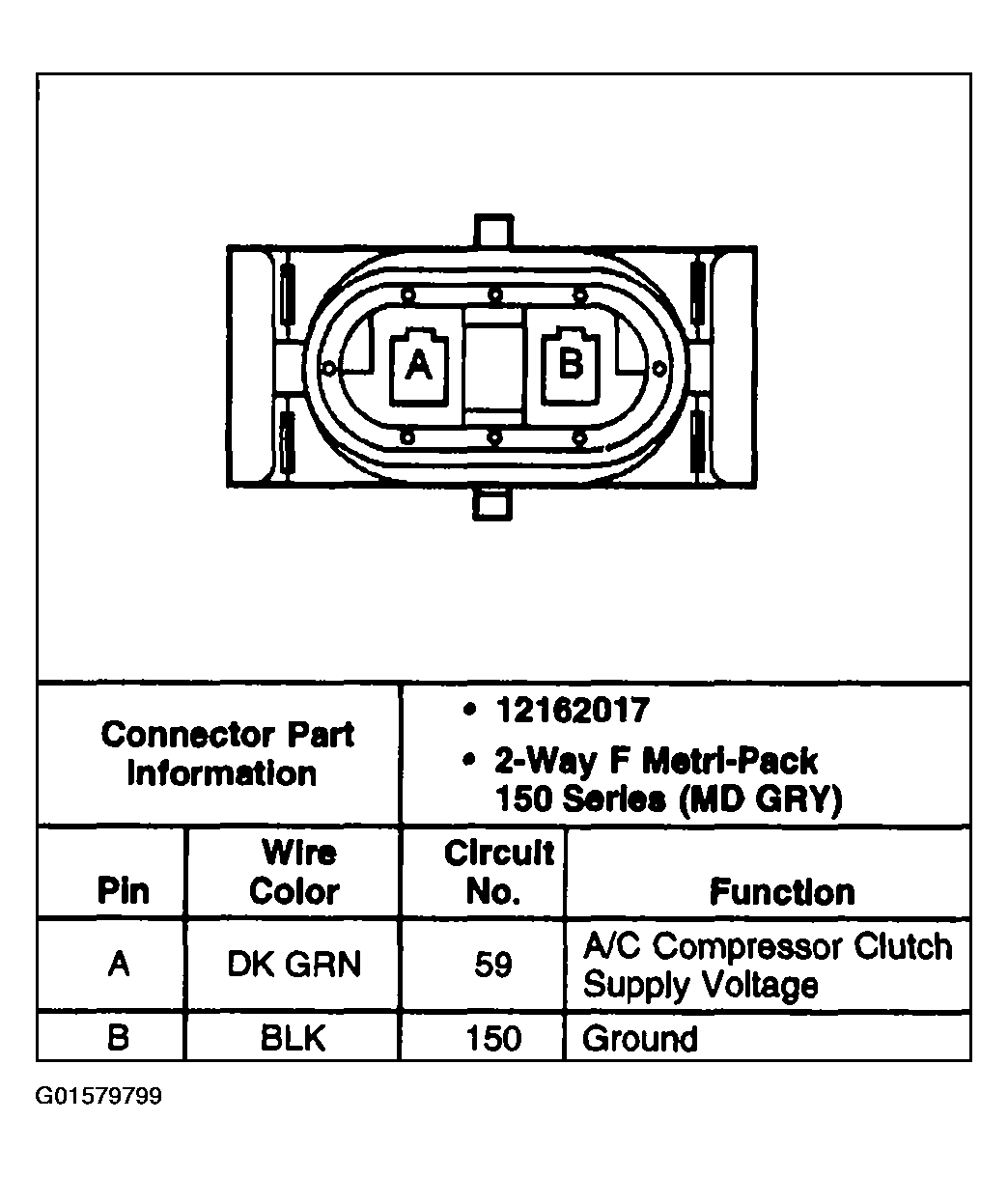

Fig 1: A/C Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

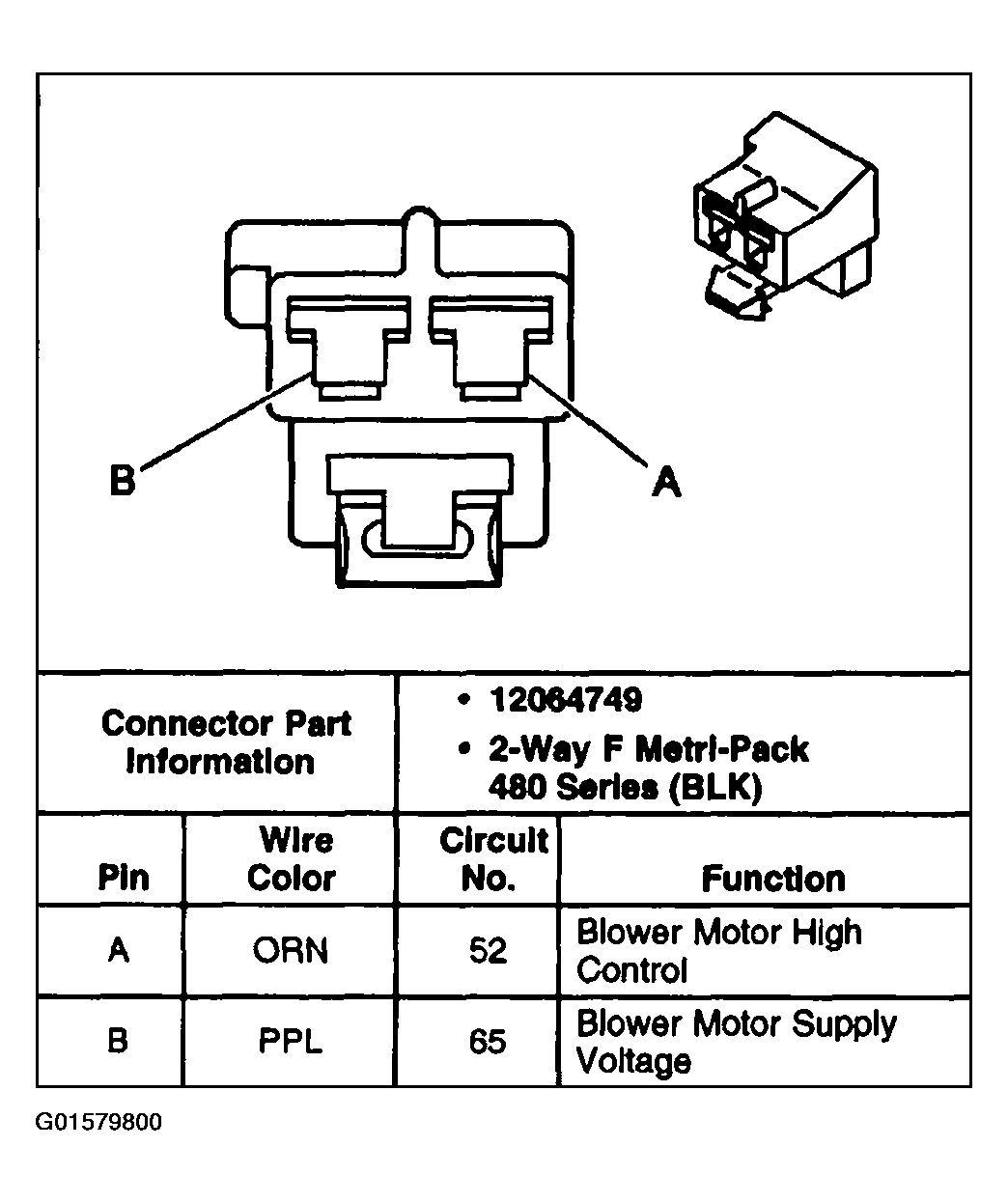

Fig 2: Blower Motor

Courtesy of GENERAL MOTORS CORP.

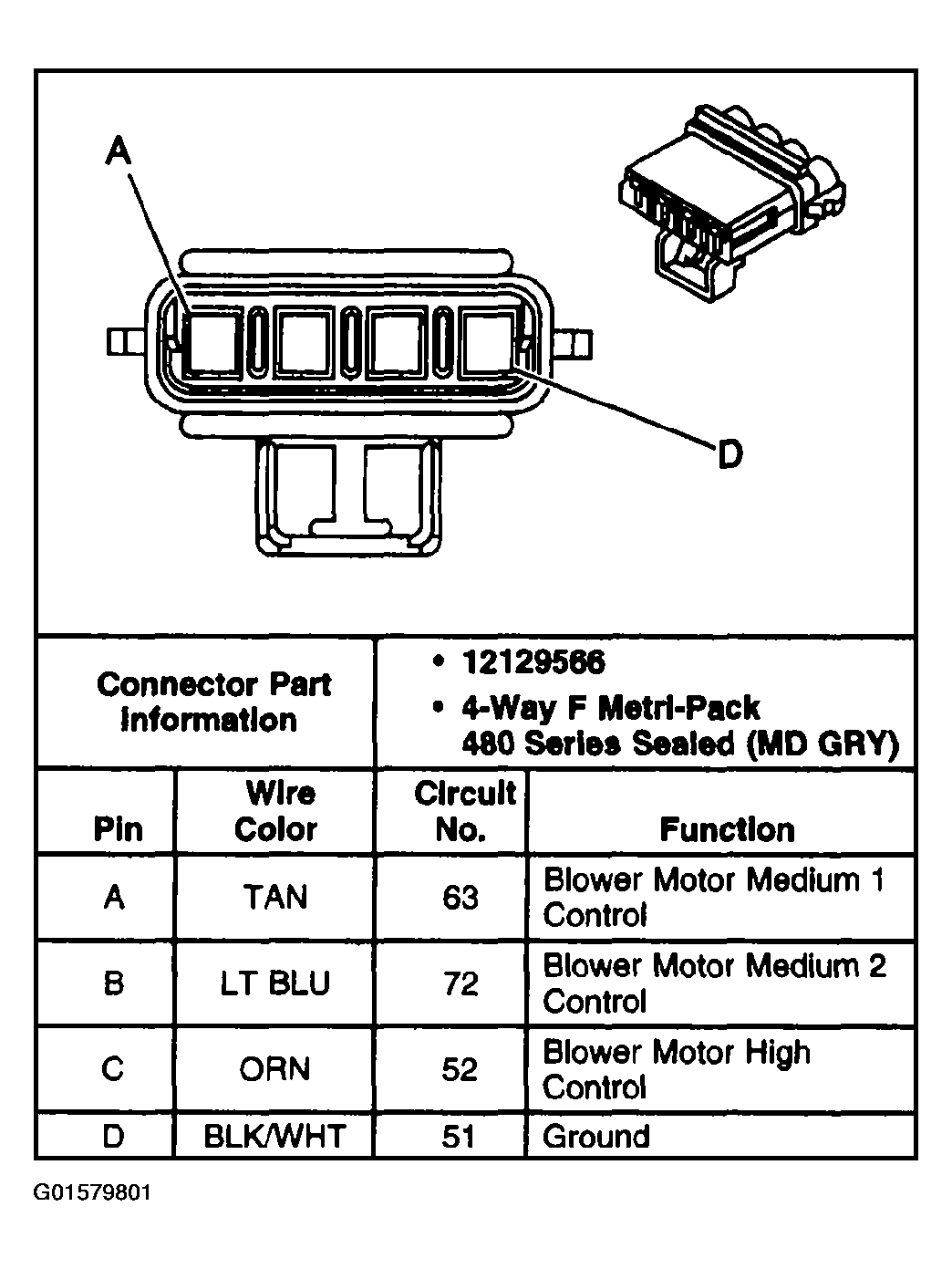

Fig 3: Blower Motor Resistor

Courtesy of GENERAL MOTORS CORP.

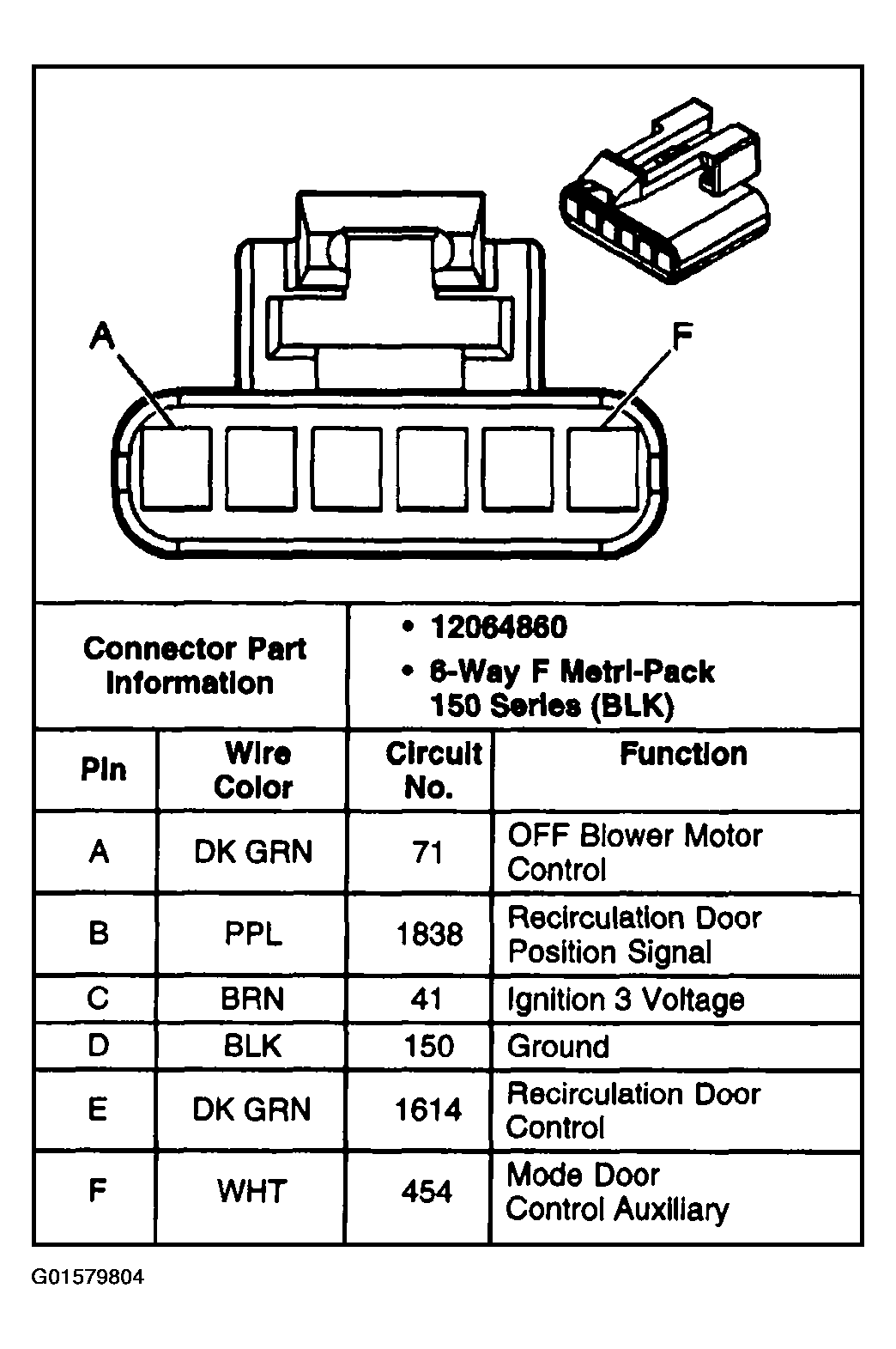

Fig 4: HVAC Control Assembly Connector C1

Courtesy of GENERAL MOTORS CORP.

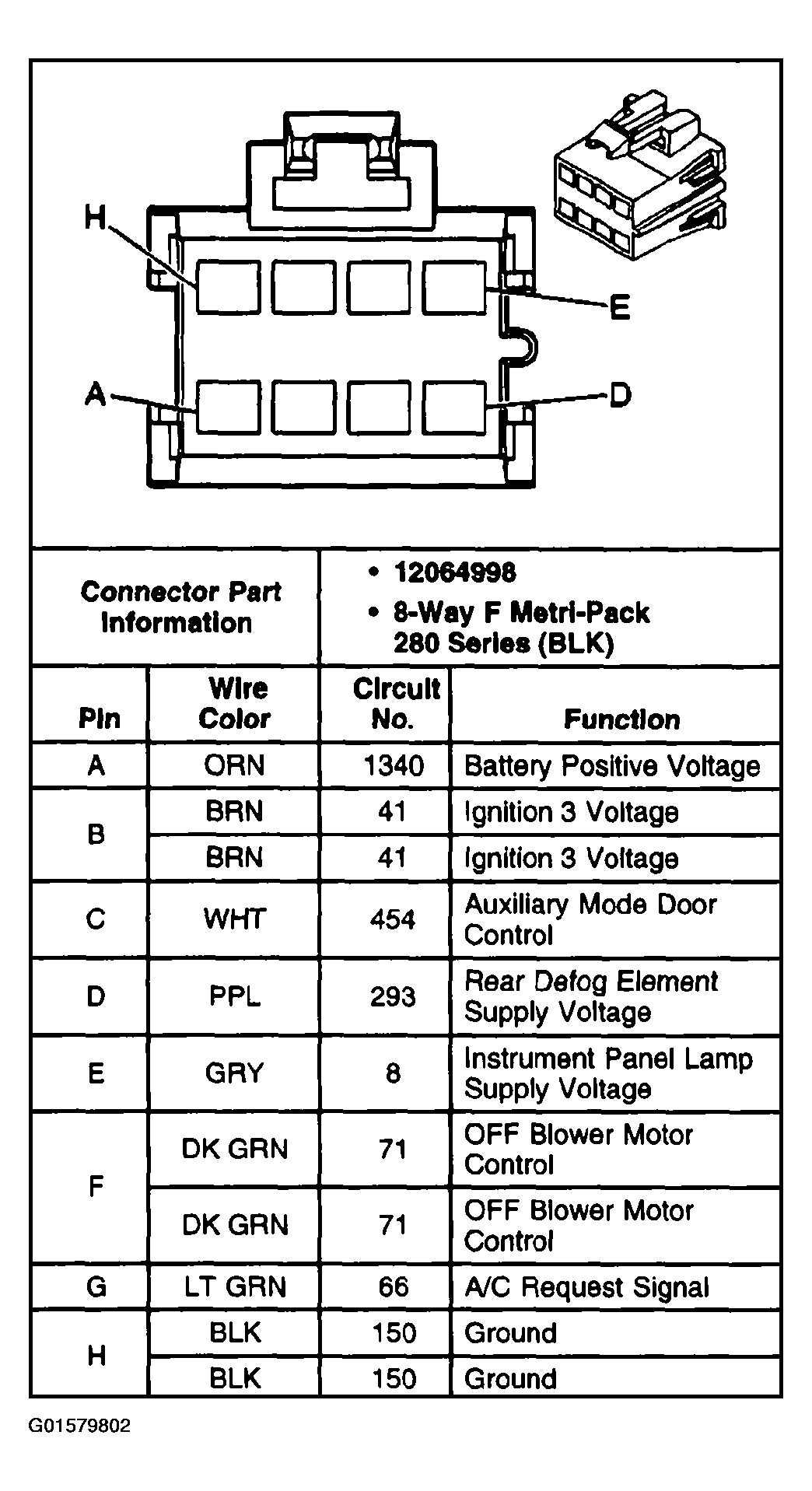

Fig 5: HVAC Control Assembly Connector C2

Courtesy of GENERAL MOTORS CORP.

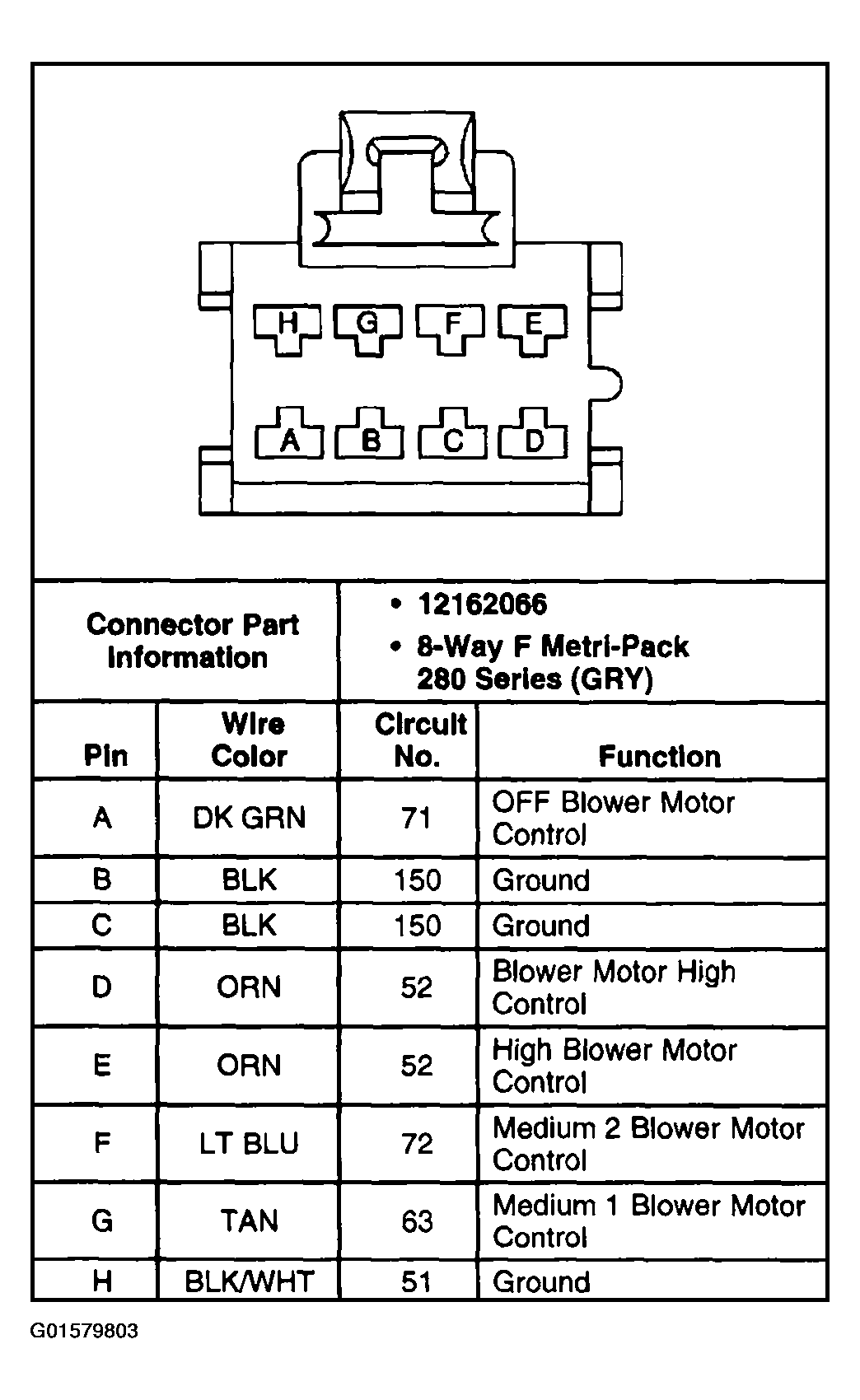

Fig 6: HVAC Control Assembly Connector C3

Courtesy of GENERAL MOTORS CORP.

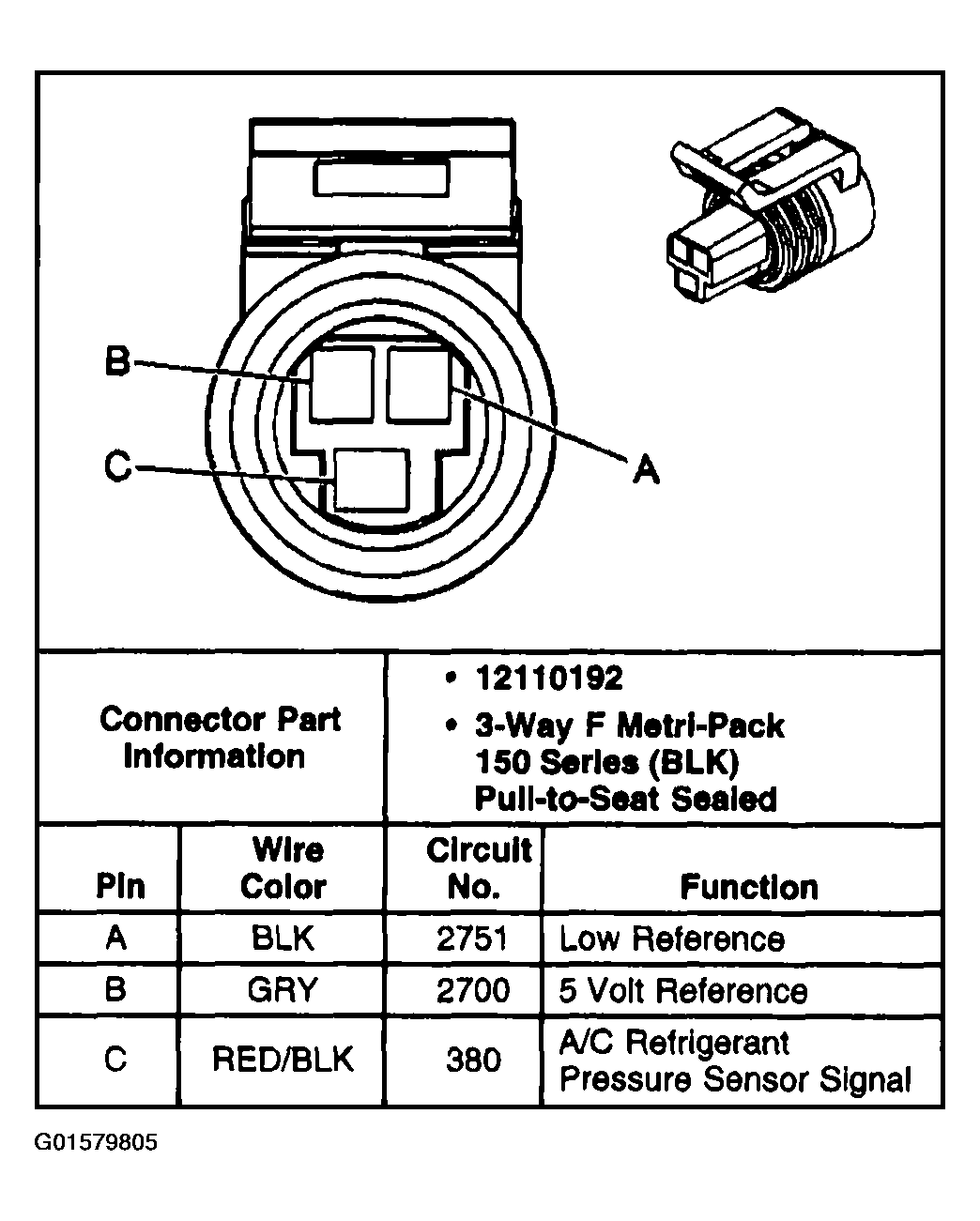

Fig 7: A/C Refrigerant Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

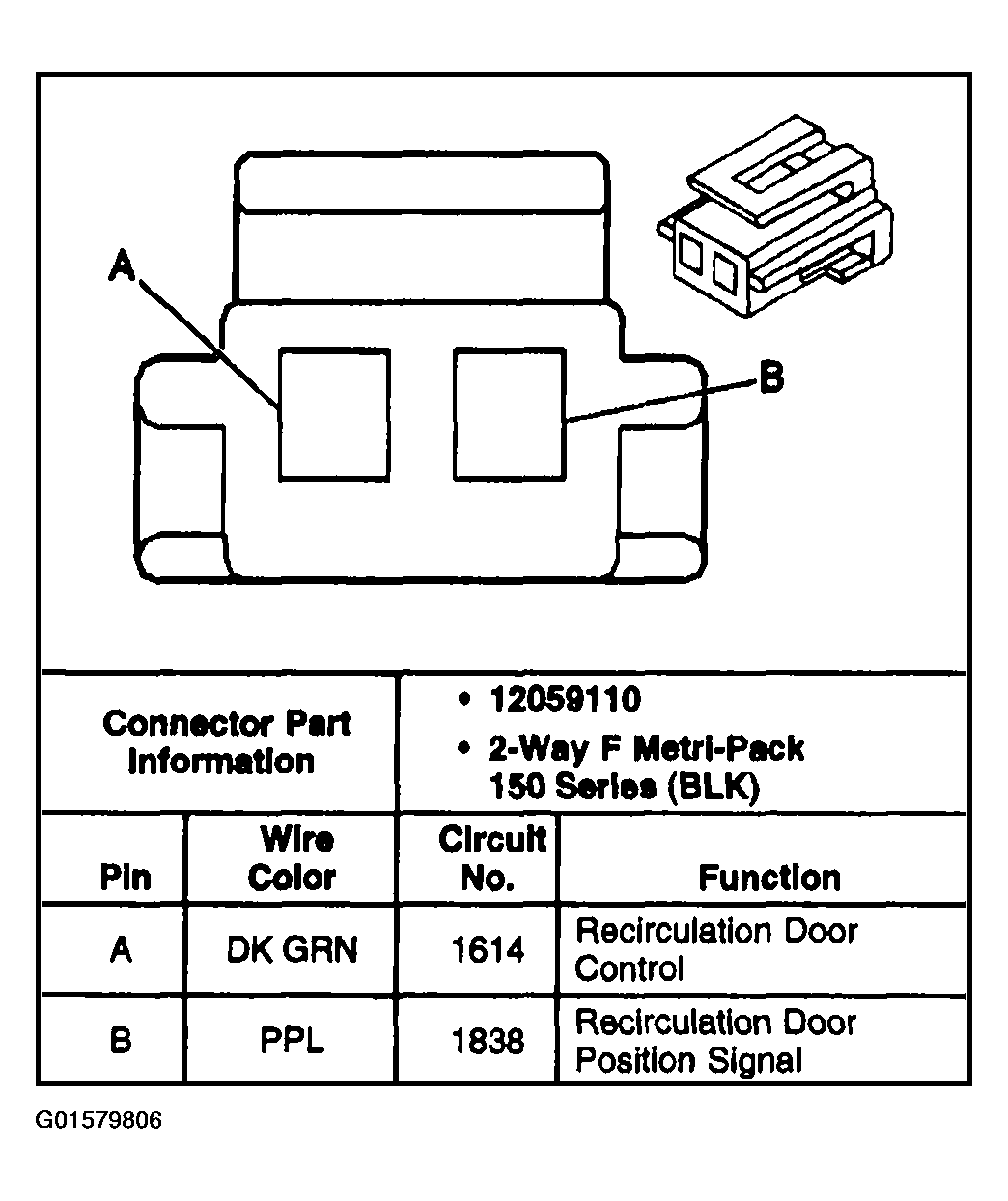

Fig 8: Recirculation Actuator

Courtesy of GENERAL MOTORS CORP.
