HVAC Component Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

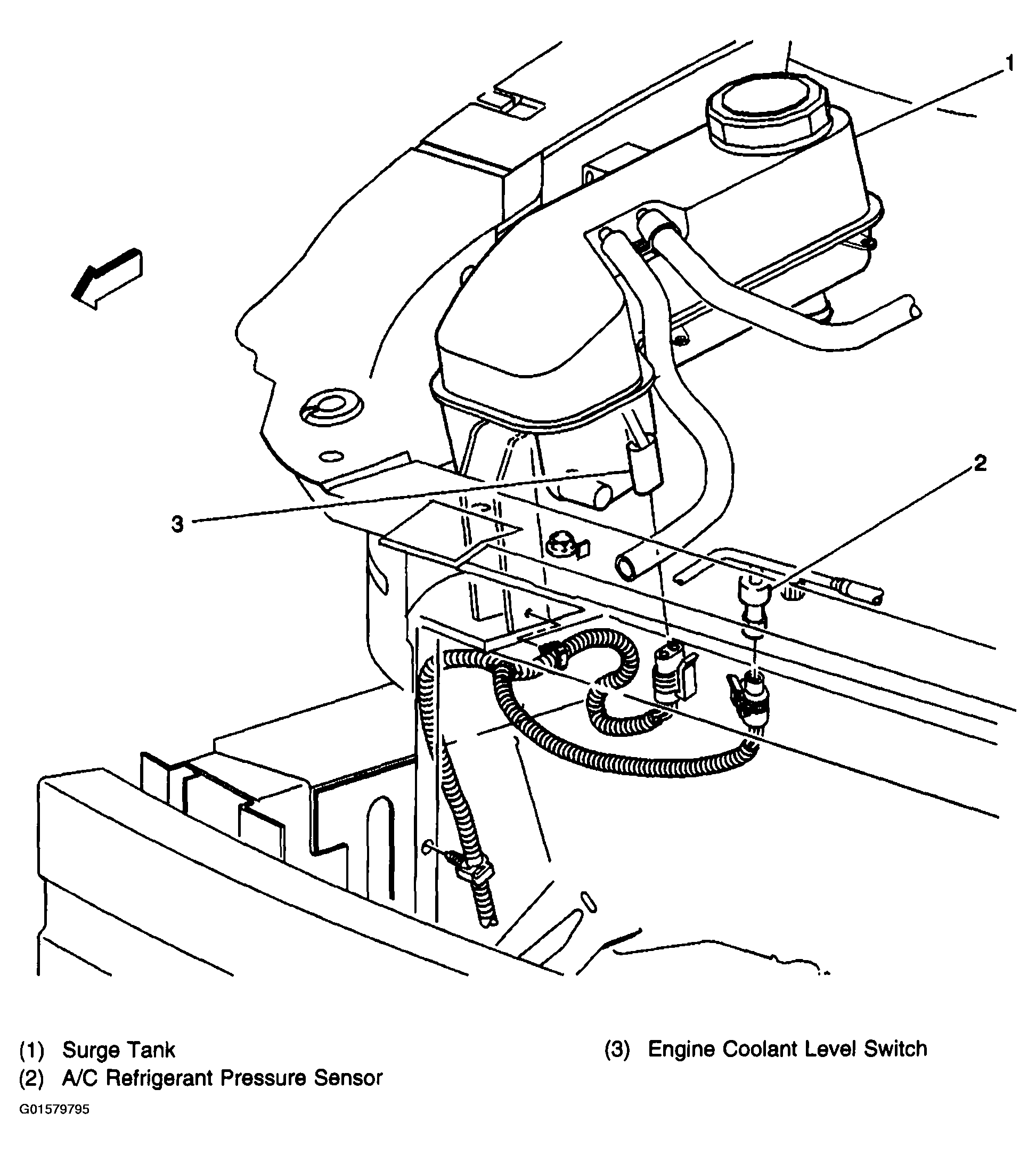

Fig 1: Right Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

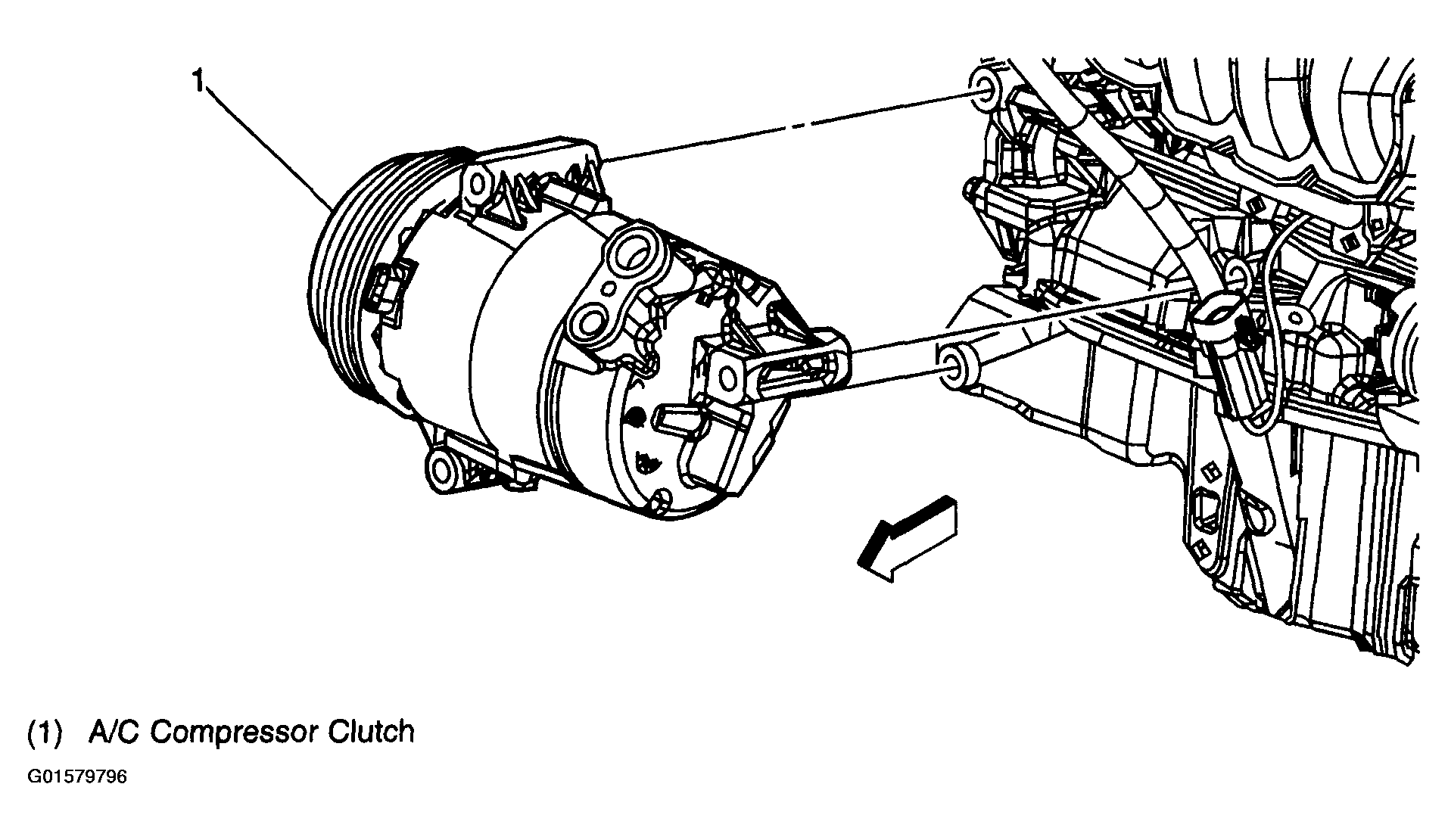

Fig 2: Front of Engine

Courtesy of GENERAL MOTORS CORP.

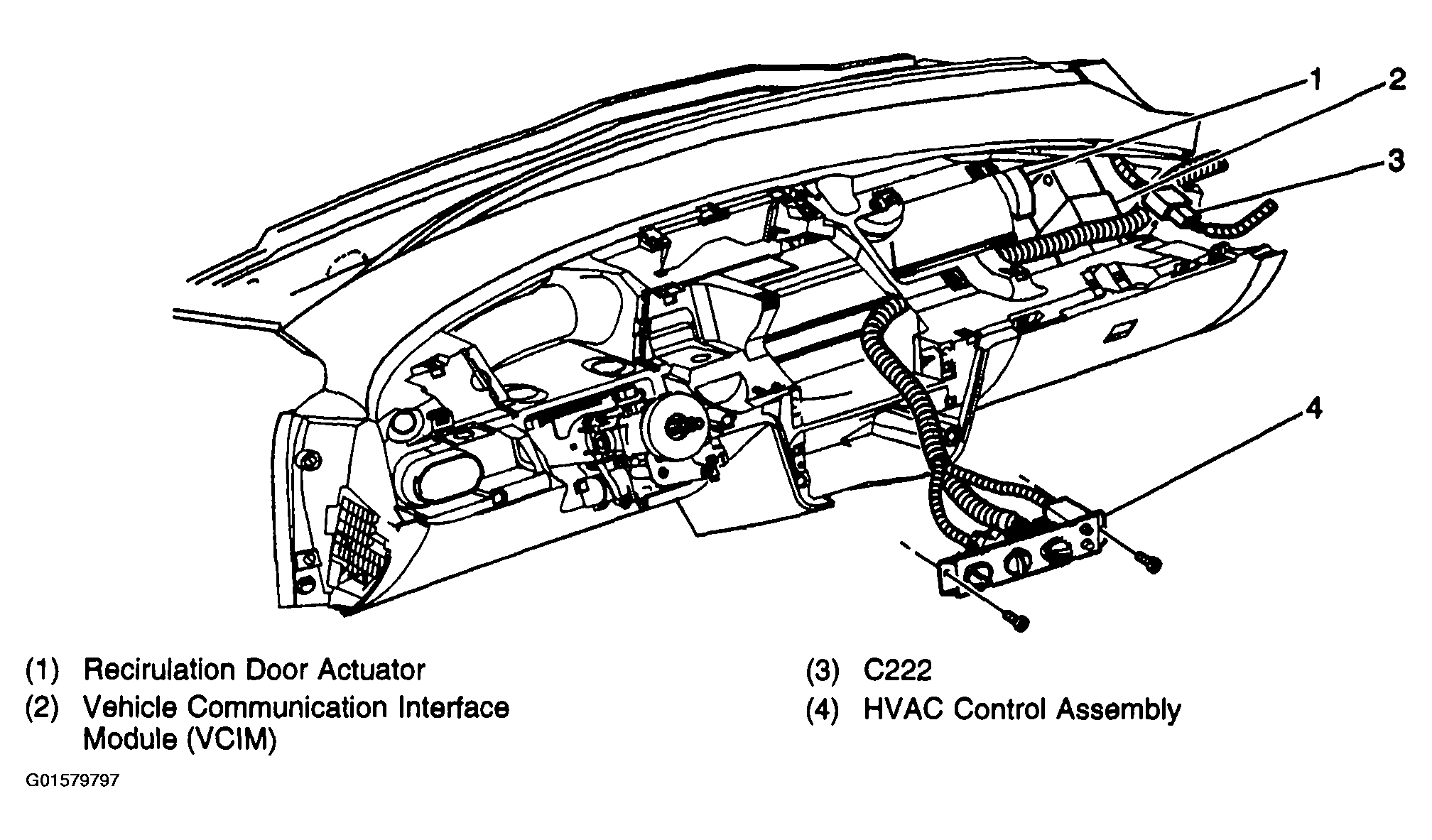

Fig 3: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

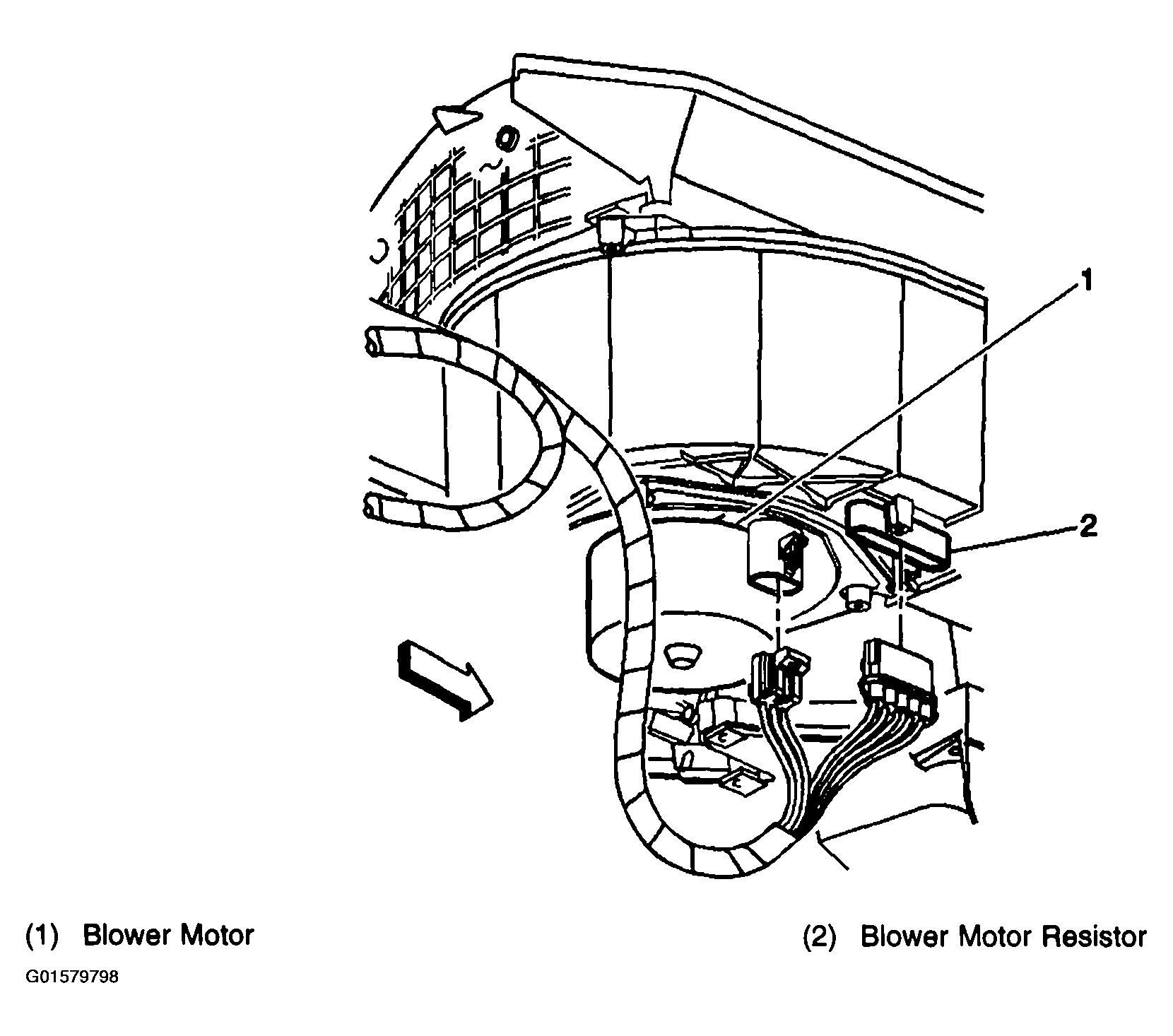

Fig 4: Under the Center of the Instrument Panel

Courtesy of GENERAL MOTORS CORP.
