Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the rear seat cushion, if necessary. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  3. Remove the rear seat belt retractor anchor plate bolt.
  4. Remove the retractor anchor plate from the floor.
  5. Remove the retractor bolt (1).
  6. Remove the retractor from the rear shelf.

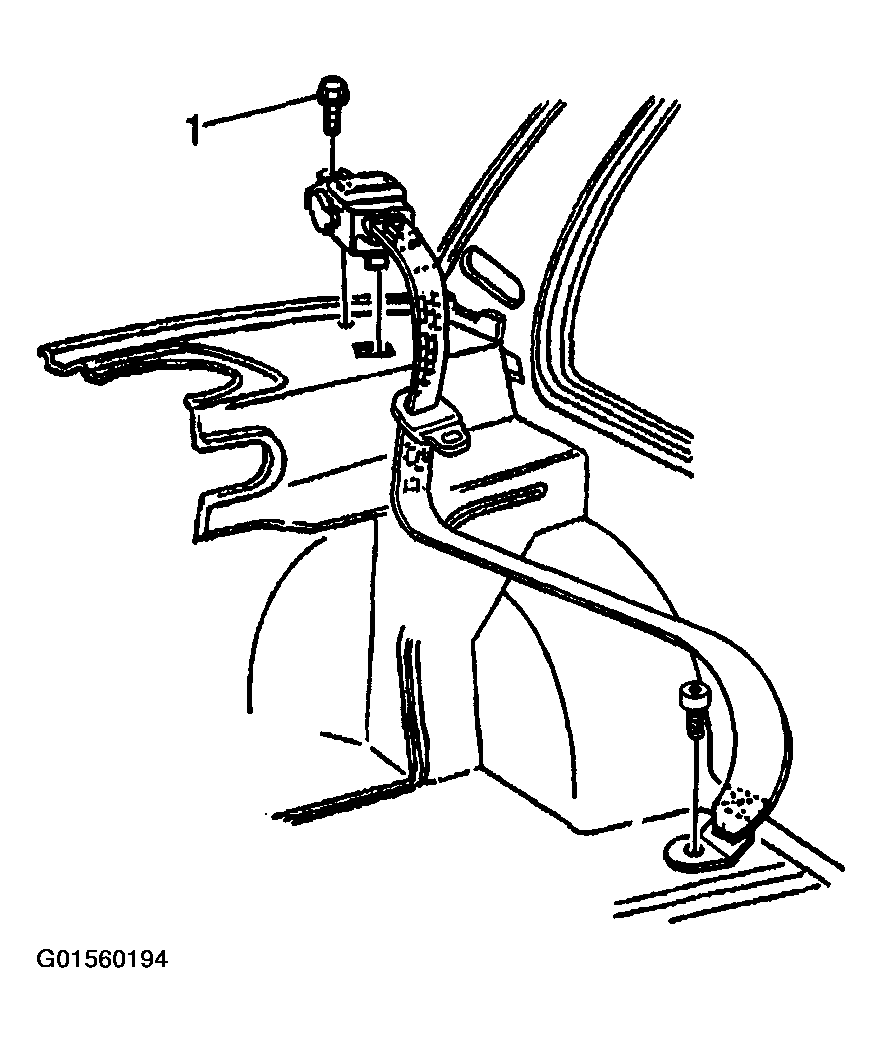

    Fig 1: Removing Seat Belt Retractor & Bolt From Rear Shelf - Rear
    G01560194Courtesy of GENERAL MOTORS CORP.
