Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retractor to the rear shelf.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retractor bolt (1).

    Tighten

    Tighten the bolt to 28 N.m (21 lb ft).

  3. Install the retractor anchor plate to the floor pan.
  4. Install the retractor anchor plate bolt.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

  5. Install the rear seat cushion, if necessary. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  6. Install the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  7. Check the rear seat retractor belt for proper operation.

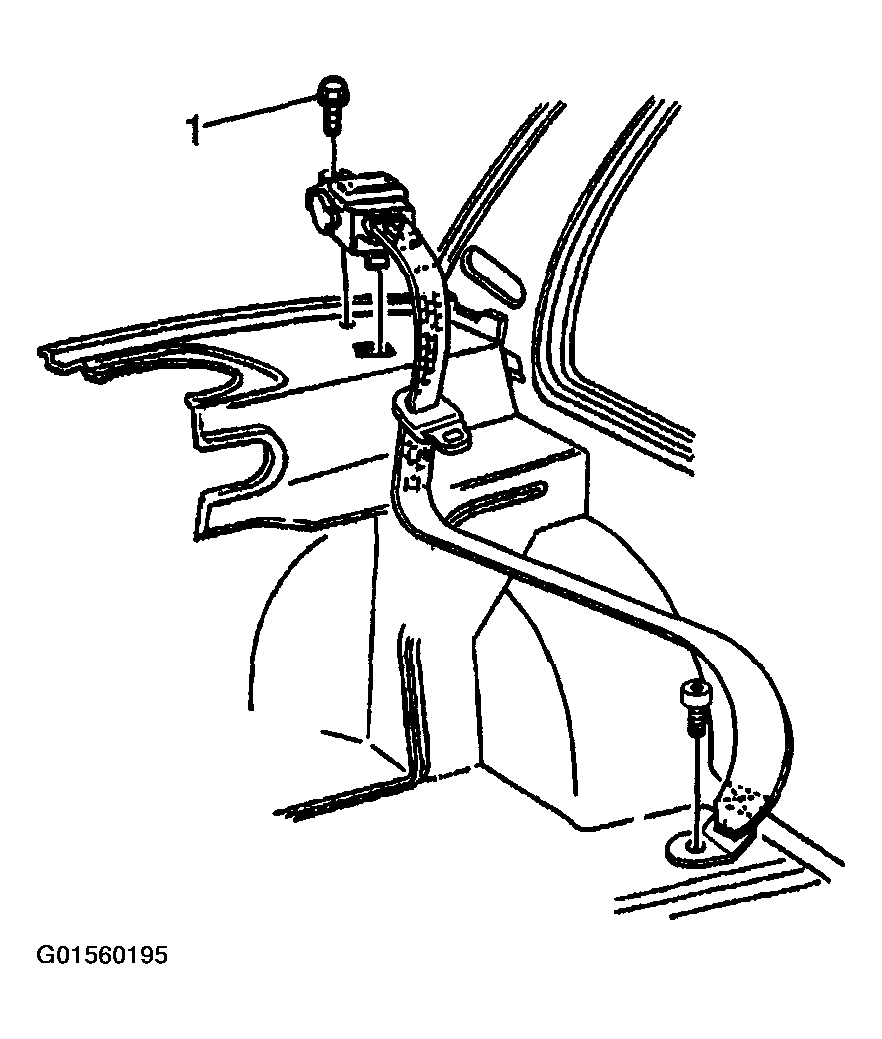

    Fig 1: Installing Seat Belt Retractor & Bolt To Rear Shelf - Rear
    G01560195Courtesy of GENERAL MOTORS CORP.
