Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Remove any twists in the seat belt webbing before final assembly.

  1. Insert the top of the seat belt retractor into the T-slot.

    Push down the top of the retractor to engage the retractor with the T-slot in the center pillar.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt retractor bolt (2).

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

  3. Install the seat belt intermediate guide rivet.
  4. Install the rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER in Interior Trim.
  5. Install the shoulder belt guide bolt (1).

    Tighten

    Tighten the bolt to 41 N.m (30 lb ft).

  6. Push down on the shoulder belt guide cover (5) until fully seated.
  7. Install the seat belt anchor bolt (4).

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

  8. Install the seat belt anchor bolt plug (3).
  9. Inspect the seat belt retractor for proper operation. Refer to OPERATIONAL AND FUNCTIONAL CHECKS  .

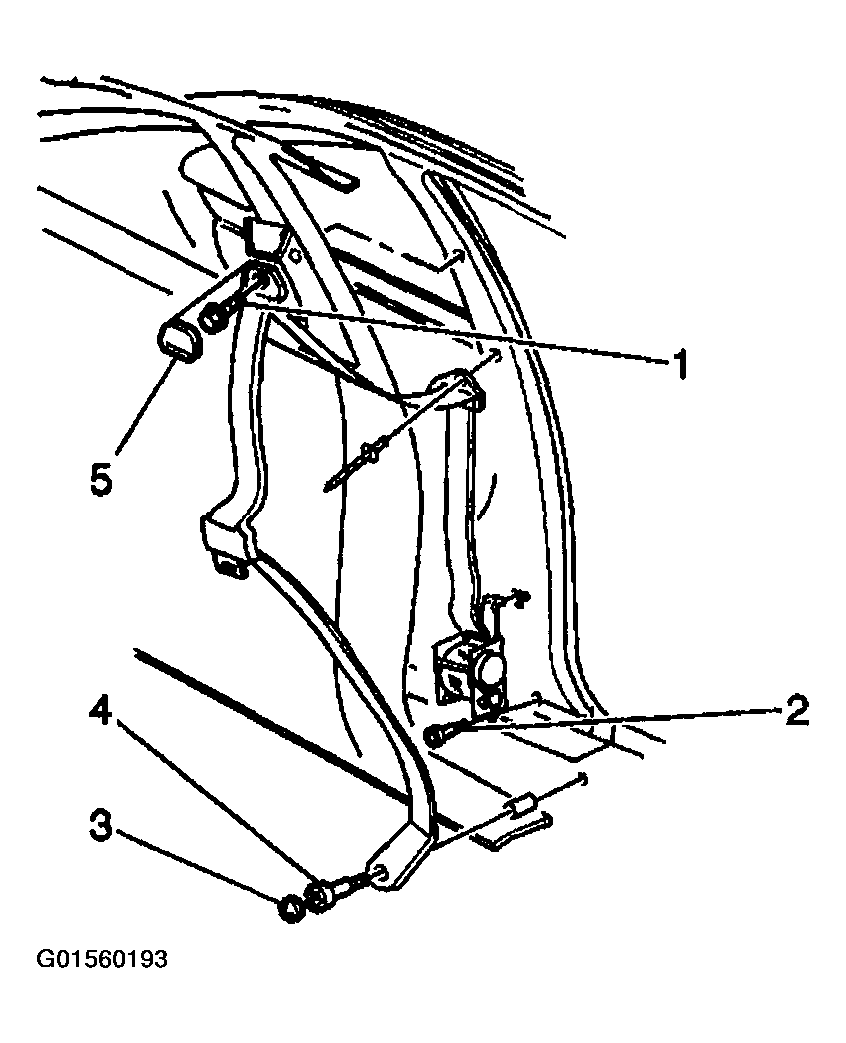

    Fig 1: Installing Seat Belt Retractor & Components - Front (Coupe)
    G01560193Courtesy of GENERAL MOTORS CORP.
