Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Open the rear compartment.
  3. Remove the center rear seat belt retractor bolt (3) from the rear compartment.
  4. Slide the retractor (1) forward to disengage the locking tab (4) from the retractor bracket (5).
  5. From inside the vehicle remove the retractor (1) from the rear shelf (2).

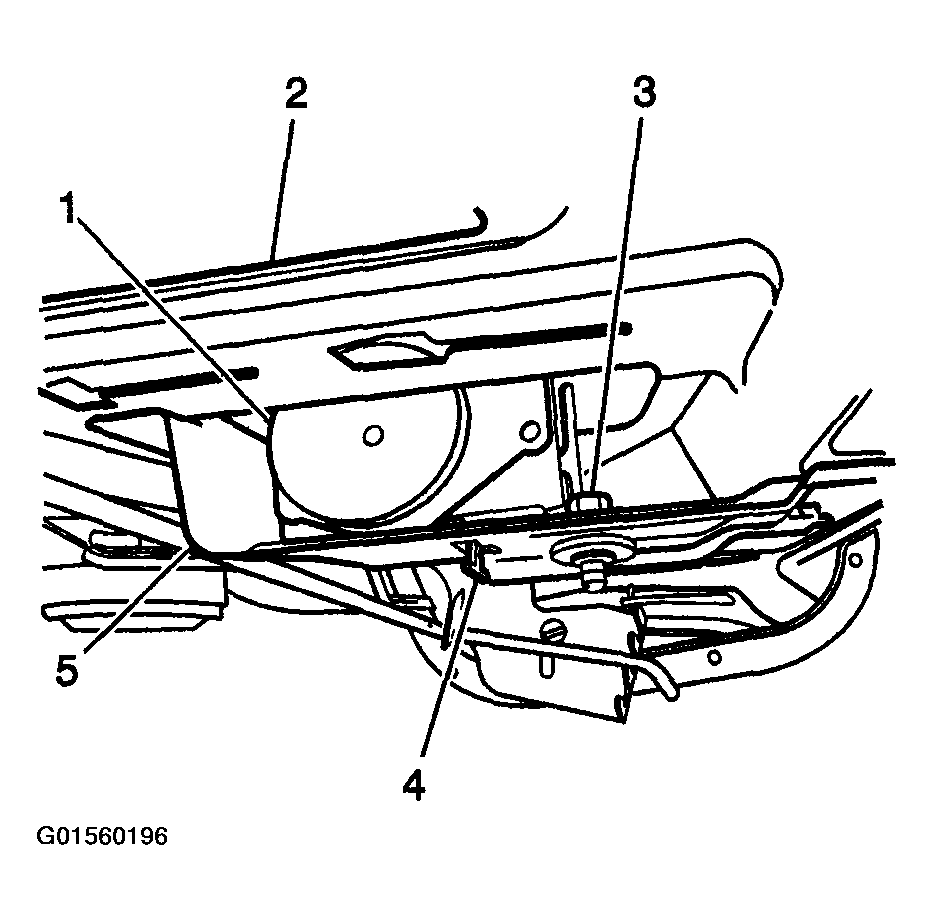

    Fig 1: Removing Seat Belt Retractor From Rear Shelf
    G01560196Courtesy of GENERAL MOTORS CORP.
