Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. From inside the vehicle install the rear seat belt retractor assembly (1) to the rear shelf (2).
  2. From the rear compartment slide the retractor rearward to engage the locking tab (4) into the retractor bracket (5).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the rear seat belt retractor bolt (3).

    Tighten

    Tighten the bolt to 28 N.m (21 lb ft).

  4. Install the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in interior Trim.
  5. Check the rear seat retractor belt for proper operation.

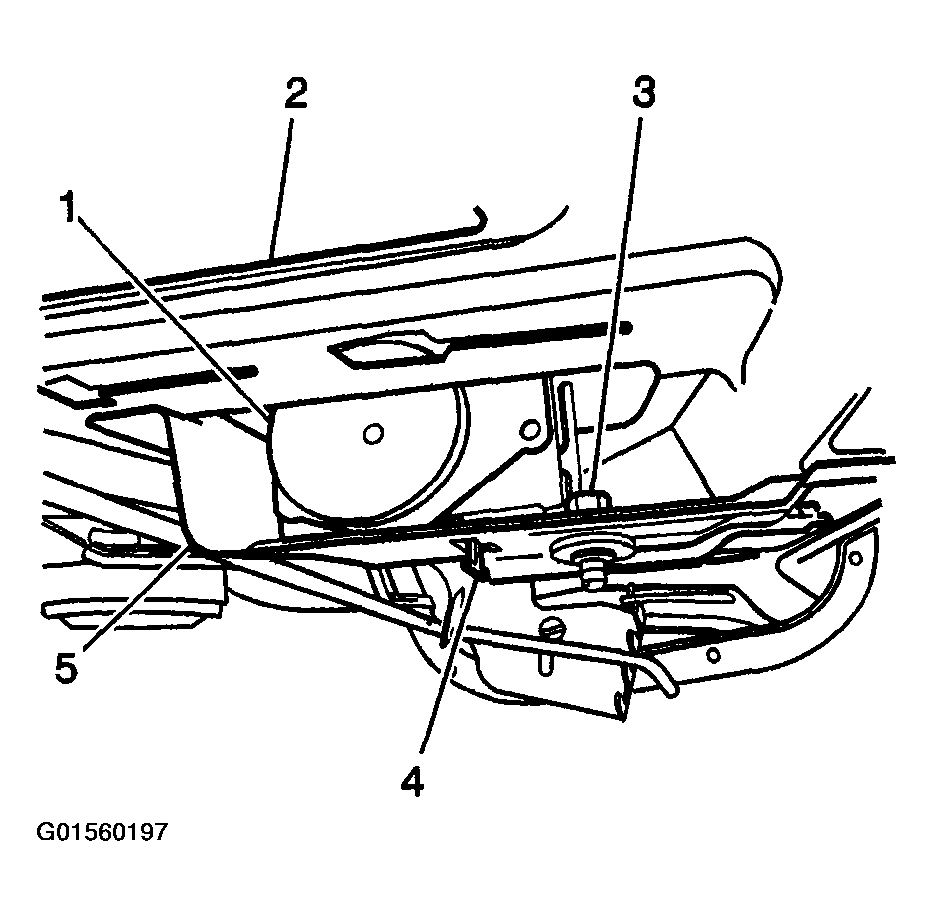

    Fig 1: Installing Rear Seat Belt Retractor Assembly To Rear Shelf
    G01560197Courtesy of GENERAL MOTORS CORP.
