Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.
  2. Remove the front seat shoulder belt guide track cover.
  3. Remove the front seat shoulder belt guide track bolts.
  4. Remove the front seat shoulder belt guide track.

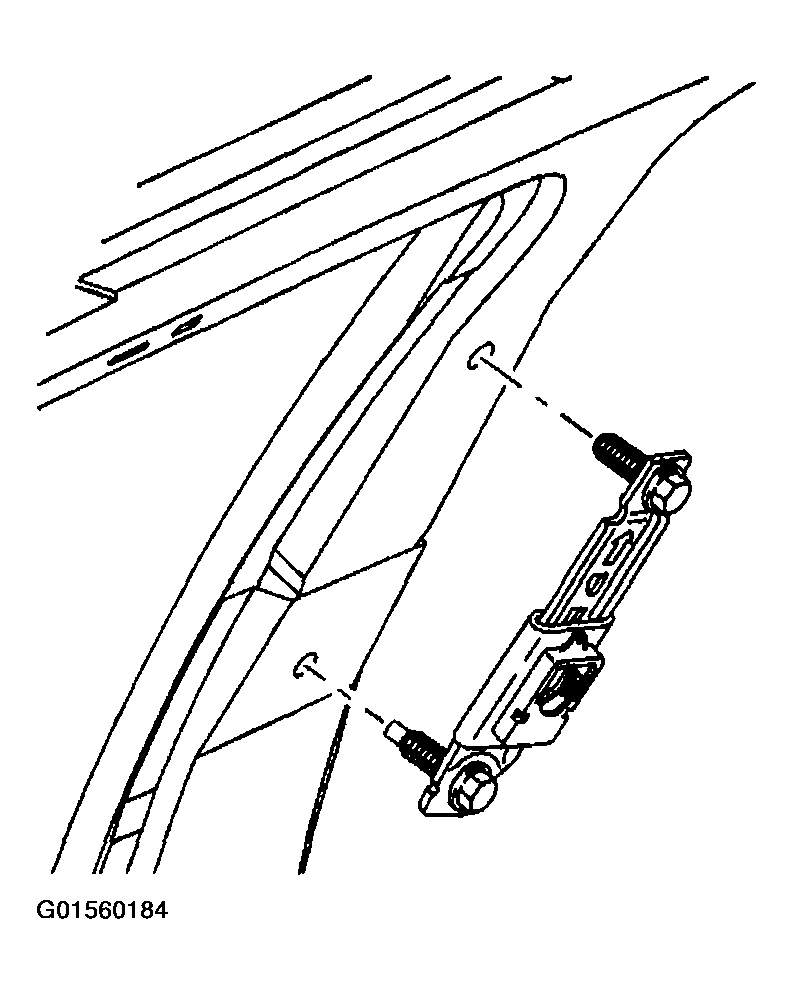

    Fig 1: Removing Front Seat Shoulder Belt Guide Track, Cover & Bolts
    G01560184Courtesy of GENERAL MOTORS CORP.
