Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat shoulder belt guide track.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the front seat shoulder belt guide track bolts.

    Tighten

    Tighten the bolts to 28 N.m (21 lb ft).

  3. Install the front seat shoulder belt guide track cover.
  4. Install the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.

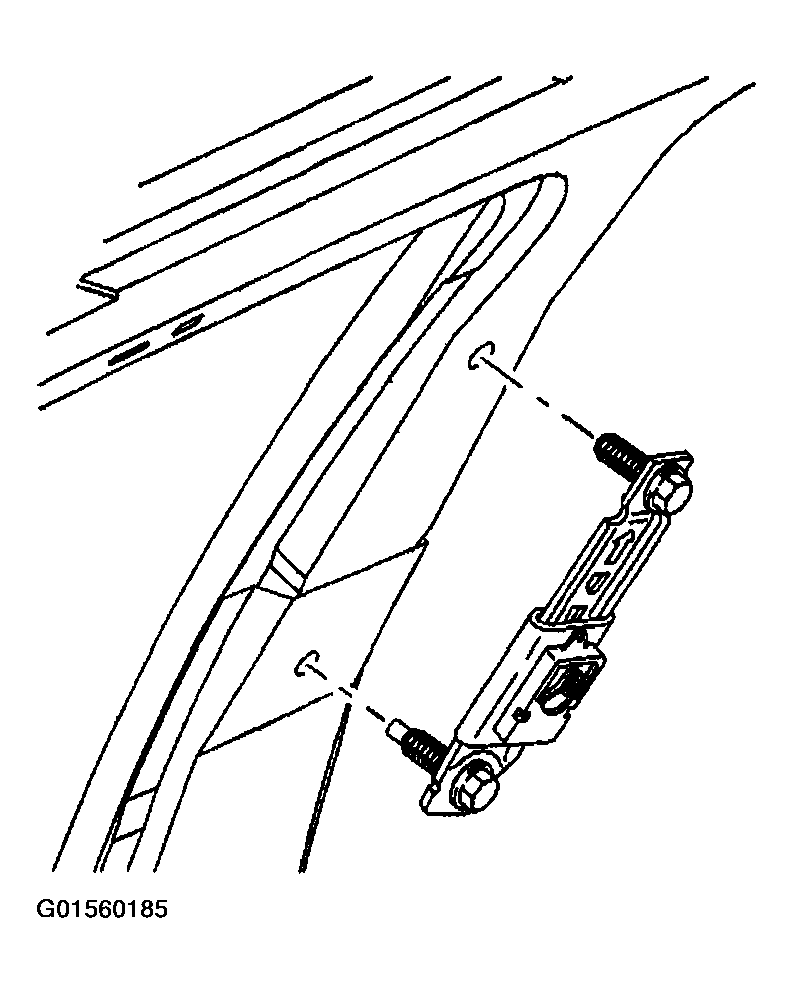

    Fig 1: Installing Front Seat Shoulder Belt Guide Track, Cover & Bolts
    G01560185Courtesy of GENERAL MOTORS CORP.
