Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the nut from the rear seat belt buckles.
  3. Remove the seat belt buckles from the floor pan studs.

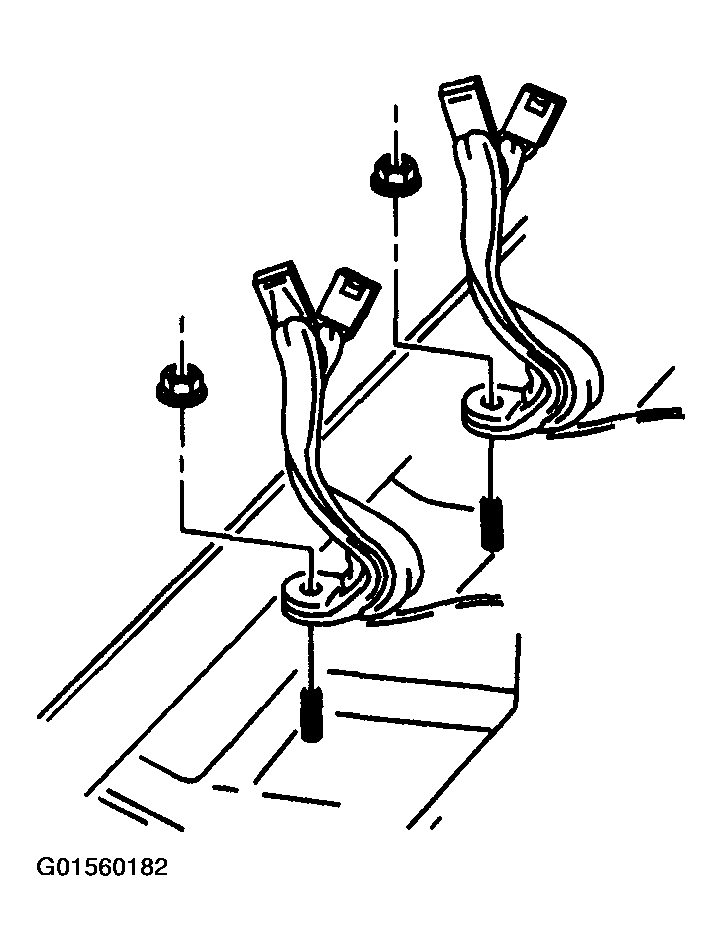

    Fig 1: Removing Seat Belt Buckles From Floor Pan Studs
    G01560182Courtesy of GENERAL MOTORS CORP.
