Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seat belt buckles to the floor pan studs.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear seat belt buckle nut.

    Tighten

    Tighten the nut to 50 N.m (37 lb ft).

  3. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.

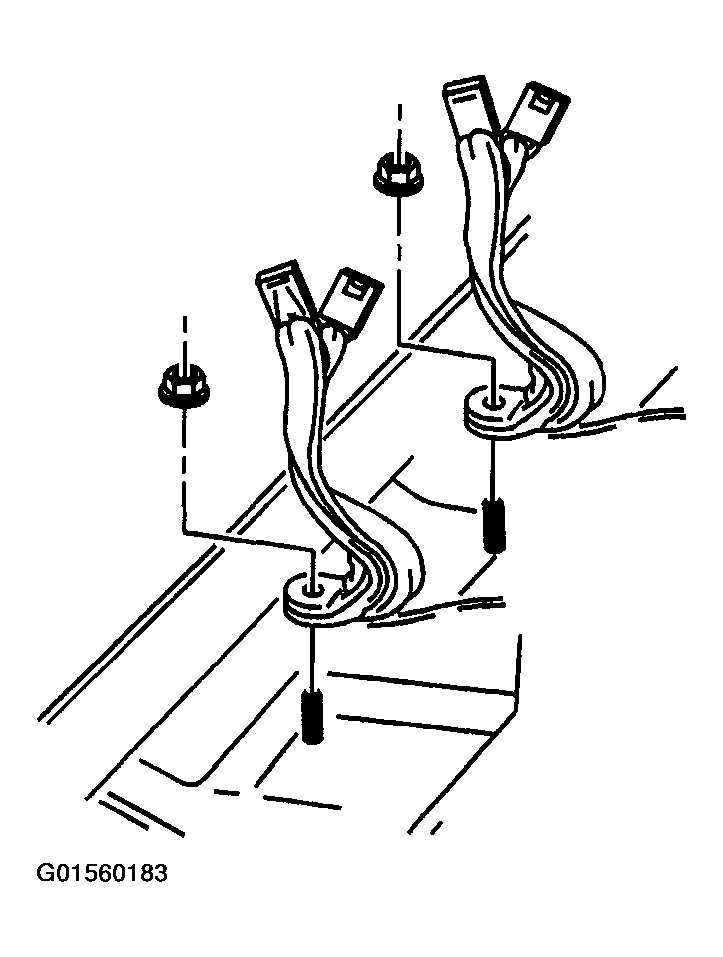

    Fig 1: Installing Seat Belt Buckles To Floor Pan Studs
    G01560183Courtesy of GENERAL MOTORS CORP.
