Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  2. Remove the split folding rear seat back. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING in Seats.
  3. Remove the bolts (2) from the child seat latch bracket (1).
  4. Remove the bracket (1) from the vehicle.

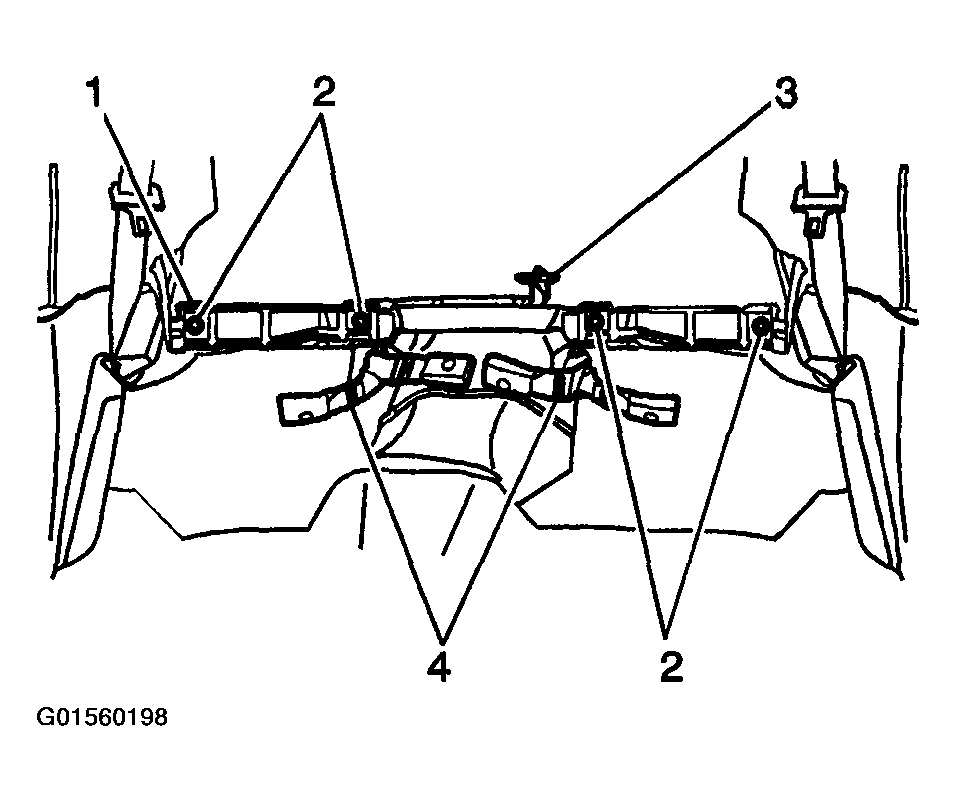

    Fig 1: Removing Child Seat Latch Bracket
    G01560198Courtesy of GENERAL MOTORS CORP.
