Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bracket (1) in the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the child seat latch bracket bolts (2).

    Tighten

    Tighten the bolts to 26 N.m (19 lb ft).

  3. Install the split folding rear seat back. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING in Seats.
  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.

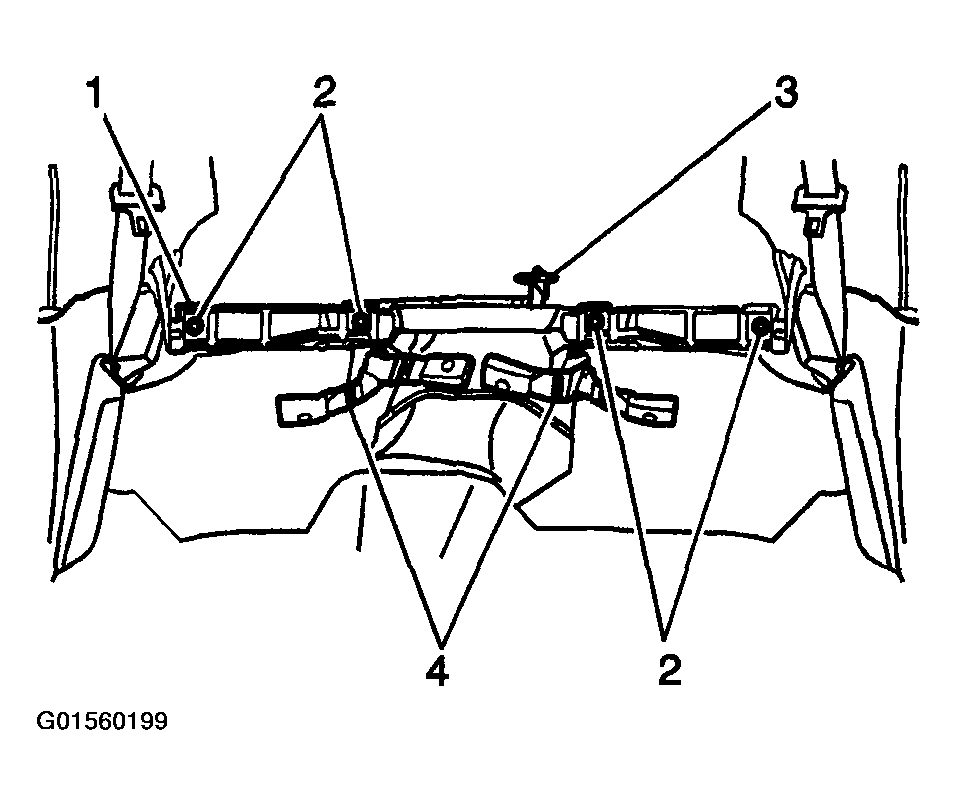

    Fig 1: Installing Child Seat Latch Bracket
    G01560199Courtesy of GENERAL MOTORS CORP.
