Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Peel the weatherstrip from the pinch weld flange. Move the weatherstrip in the following direction:
    1. Toward the lower corners
    2. Around the complete opening
  2. Clean all of the adhesive from the pinch-weld flange.

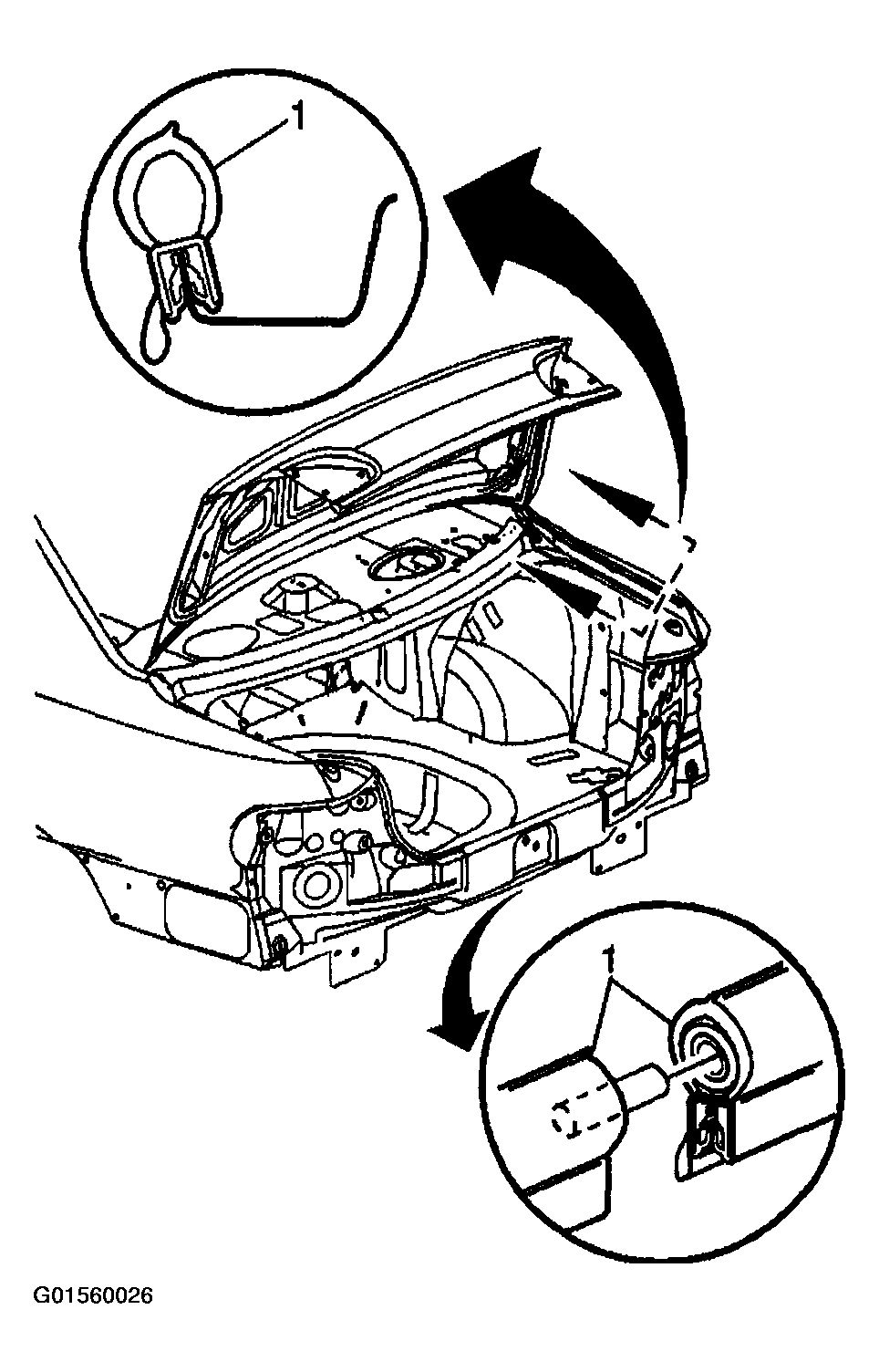

    Fig 1: Removing Weatherstrip From Pinch Weld Flange
    G01560026Courtesy of GENERAL MOTORS CORP.
