Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a bead of weatherstrip adhesive GM P/N 12345096 to the following areas:
    1. The edge of the pinch-weld flange
    2. Around the entire perimeter of the rear compartment opening
  2. Install the center of the weatherstrip onto the gutter flange. Begin at the forward center of the opening between the hinge arms.
  3. Push down by hand on the weatherstrip over the entire area until fully seated.

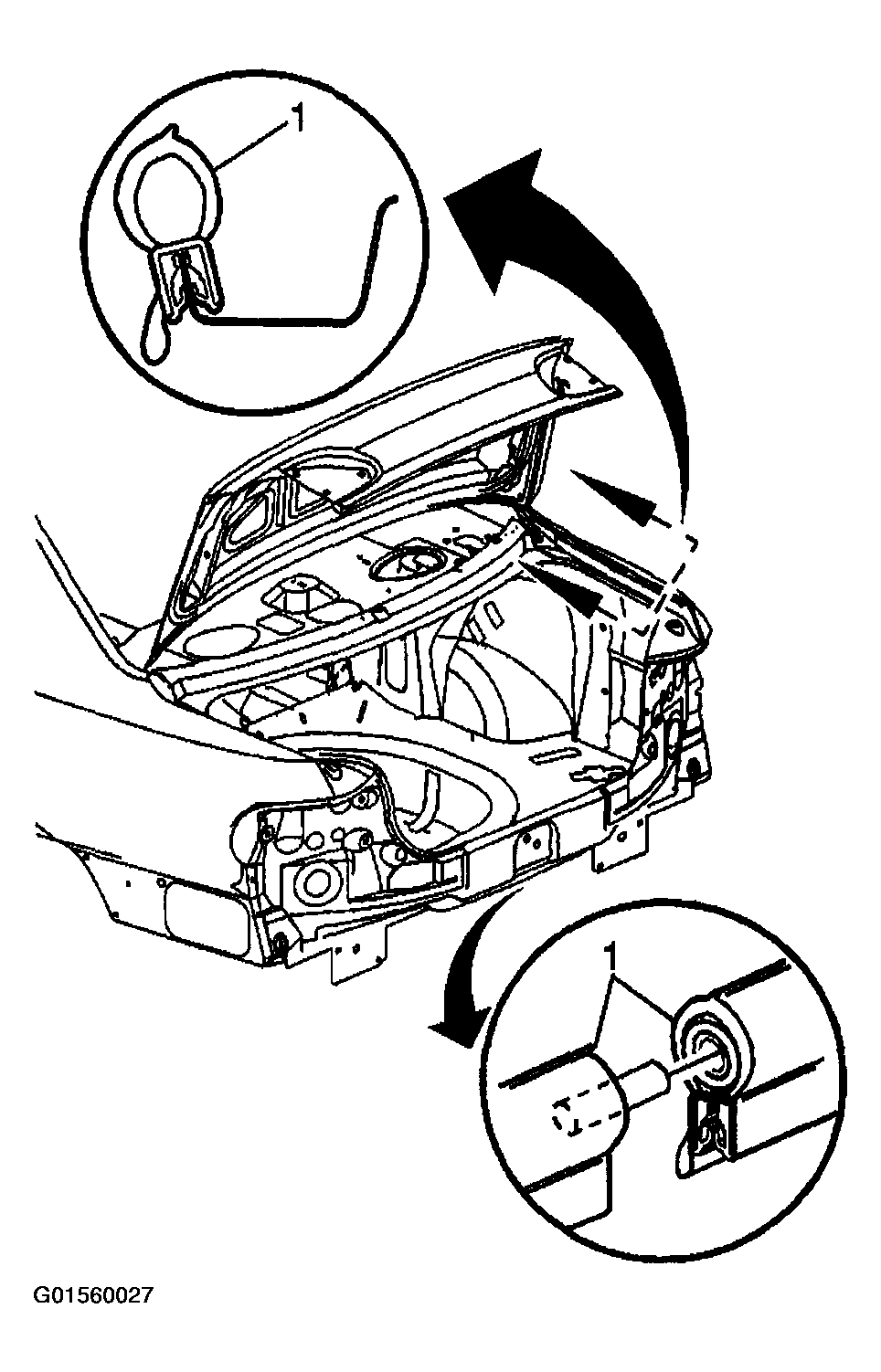

    Fig 1: Installing Center Of Weatherstrip Onto Gutter Flange
    G01560027Courtesy of GENERAL MOTORS CORP.
