Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When a hood hold open device is being removed or Installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Prop the compartment lid (2) in the full-open position.

Fig 1: Identifying Compartment Lid In Full-Open Position
Courtesy of GENERAL MOTORS CORP.

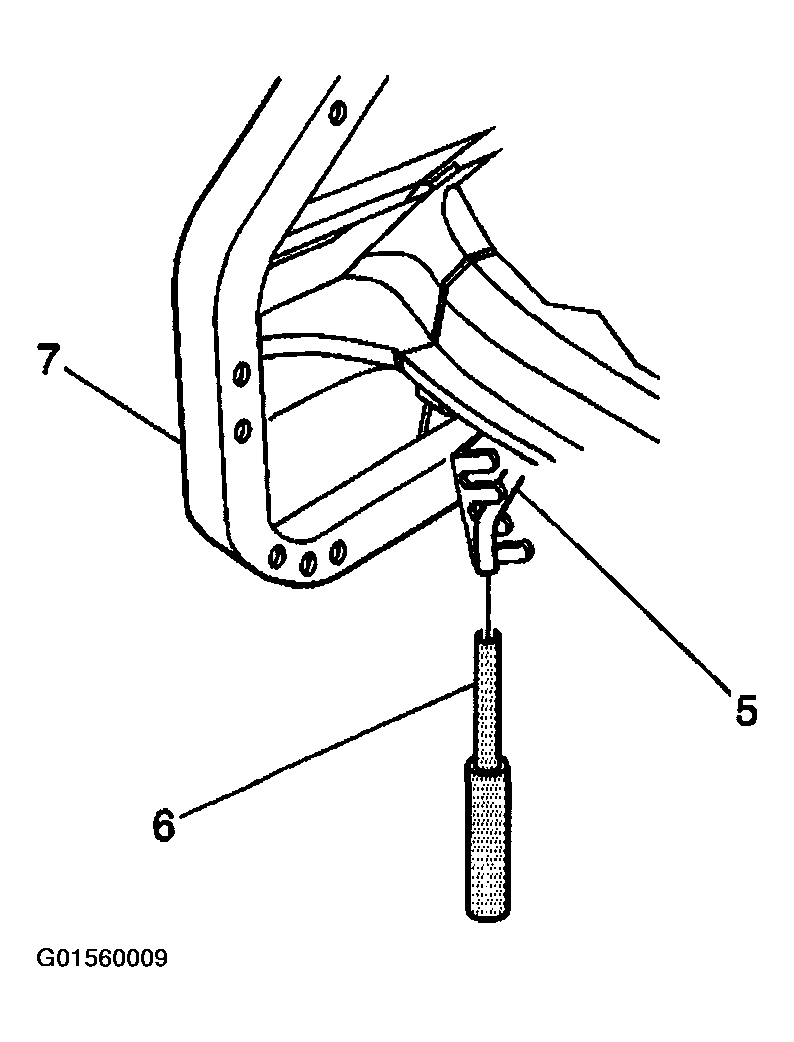

Use the J 39719 , the J 39384-10 or the equivalent (6) in order to remove the torque rod (5) from the adjusting notch.
With the torque rod removed from the adjuster notch, push the rod out of the hinge arm.

Fig 2: Removing Torque Rod From Adjusting Notch
Courtesy of GENERAL MOTORS CORP.

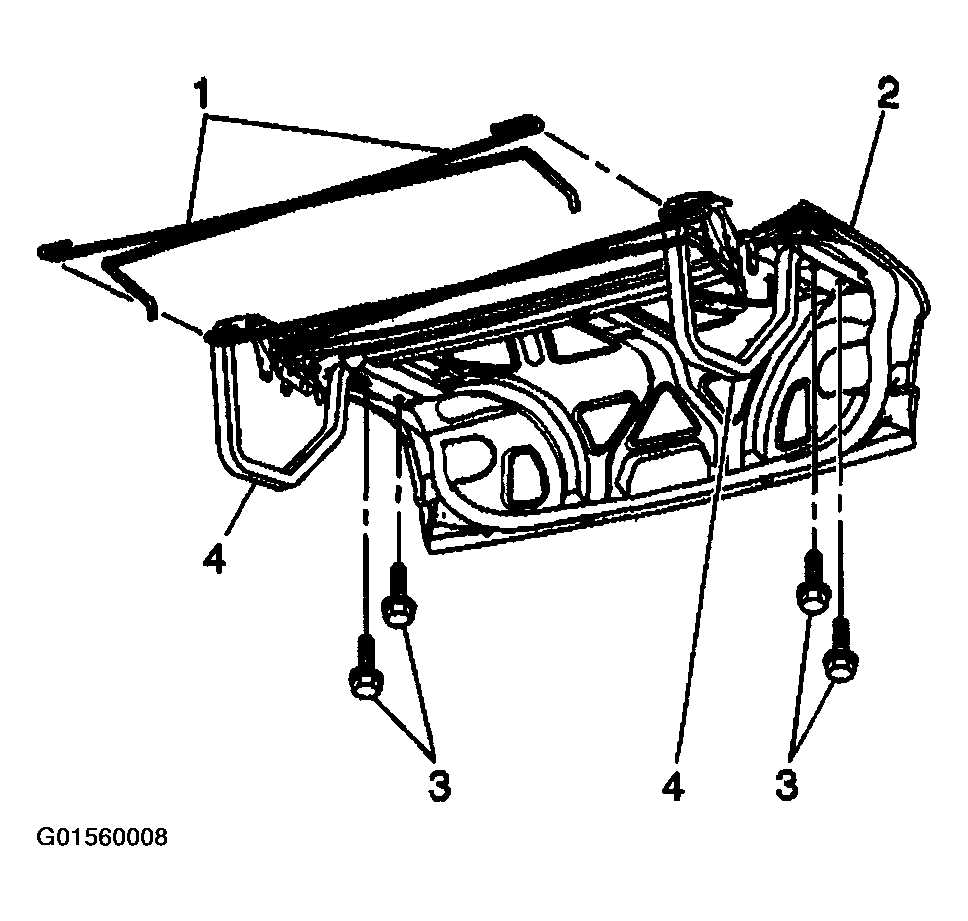

Remove the torque rod (1) from the rear compartment lid hinge (4).

Fig 3: Removing Torque Rod From Rear Compartment Lid Hinge
Courtesy of GENERAL MOTORS CORP.
