Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Install the torque rod to the compartment lid hinge arm (4).

Fig 1: Installing Torque Rod To Compartment Lid Hinge Arm
Courtesy of GENERAL MOTORS CORP.
Use the J 39719 , the J 39384-10 or the equivalent (6) in order to engage the torque rod (5) to the adjusting notch.
Adjust the operating effort by adjusting the rear compartment torque rods.
Use the following procedure:
1. Reposition the end of the torque rod (5) to a lower adjusting notch in order to obtain the following results:
  - Increase the amount of effort needed in order to raise the compartment lid.
  - Decrease the amount of effort needed in order to close the compartment lid.
2. Reposition the end of the torque rod (5) to a higher adjusting notch in order to obtain the following results:
  - Decrease the amount of effort needed in order to raise the compartment lid.
  - Increase the amount of effort needed in order to close the compartment lid.

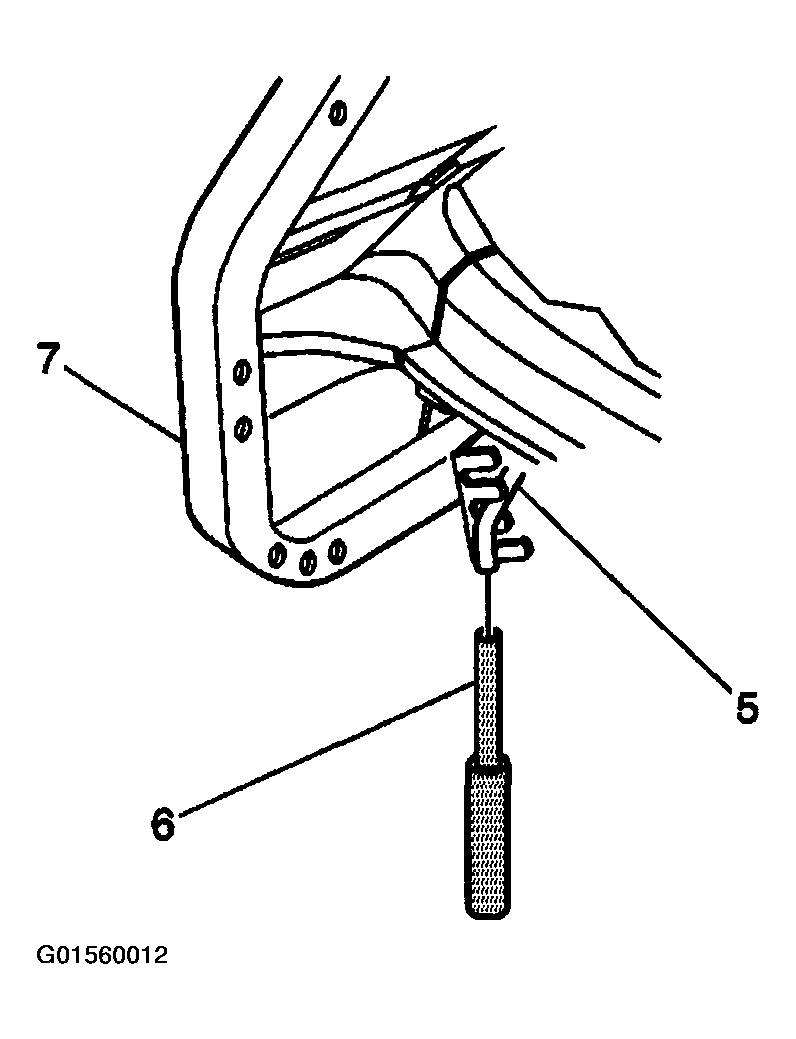

    Fig 2: Installing Torque Rod To Adjusting Notch
    Courtesy of GENERAL MOTORS CORP.
