Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nut access plugs (1) from the rear compartment lid as necessary.
  2. Remove the bolts from rear compartment lid spoiler.

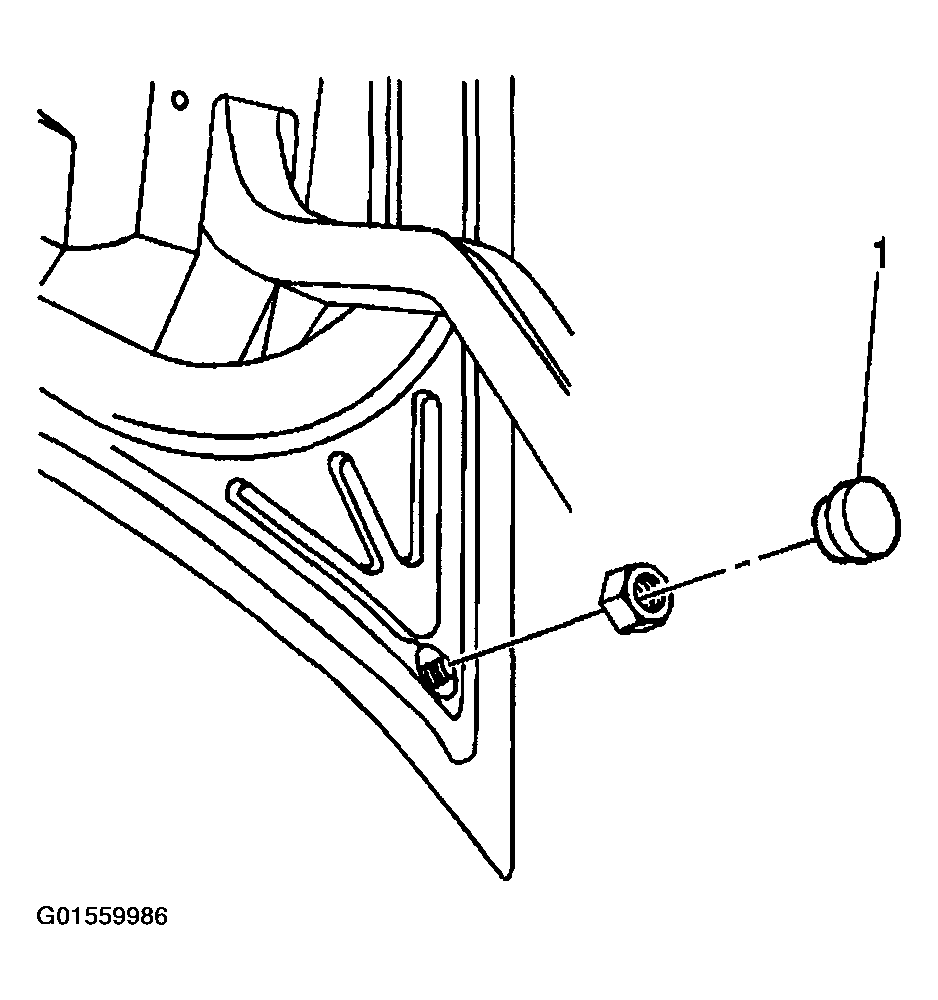

    Fig 1: Removing Bolts From Rear Compartment Lid Spoiler
    G01559986Courtesy of GENERAL MOTORS CORP.
  3. Remove the nuts (2) from the rear compartment lid spoiler.
    Fig 2: Removing Lid Spoiler With Nuts From Rear Compartment
    G01559987Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the wire harness connector (1) from the rear compartment lid spoiler.

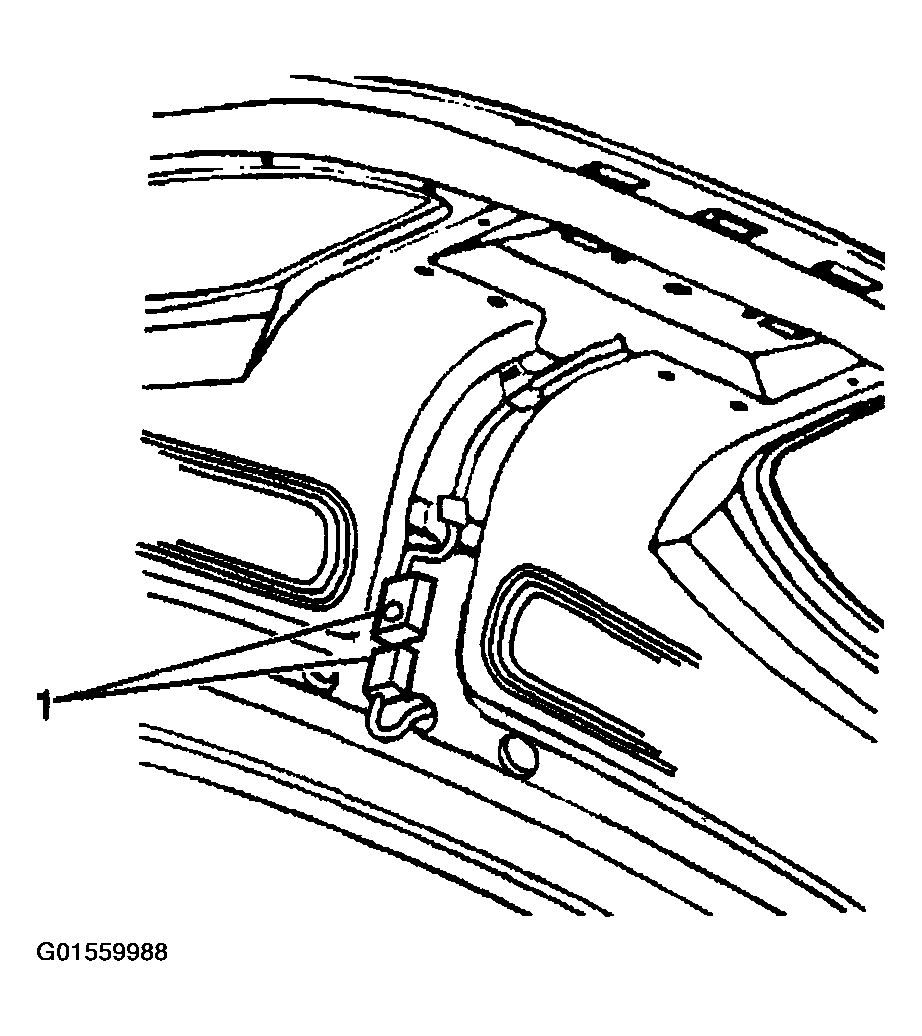

    Fig 3: Disconnecting Wire Harness Connector From Rear Compartment Lid Spoiler
    G01559988Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear compartment lid spoiler (1).
  6. Remove the high mount stop lamp. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT (PONTIAC REAR SPOILER) in Lighting.

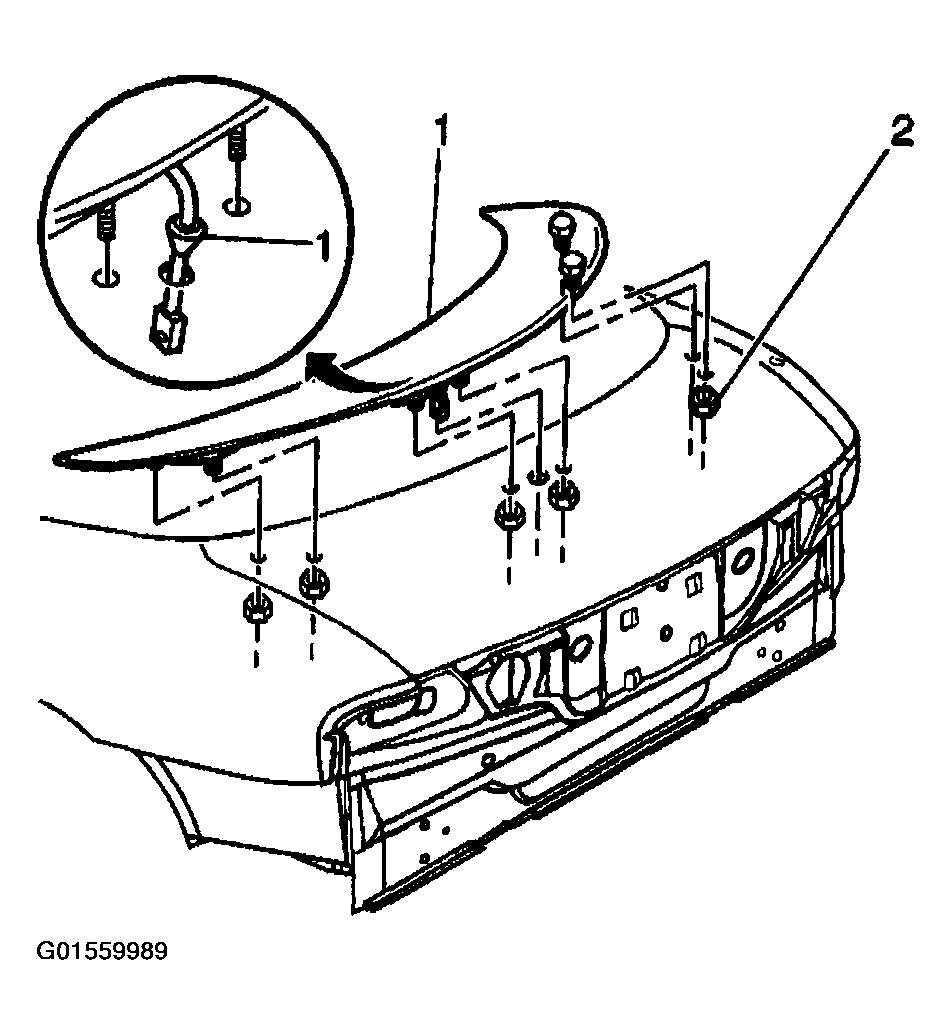

    Fig 4: Removing Rear Compartment Lid Spoiler
    G01559989Courtesy of GENERAL MOTORS CORP.
