Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the high mount stop lamp. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT (PONTIAC REAR SPOILER)  in Lighting.
  2. Position the rear compartment lid spoiler (1) on the rear compartment lid.

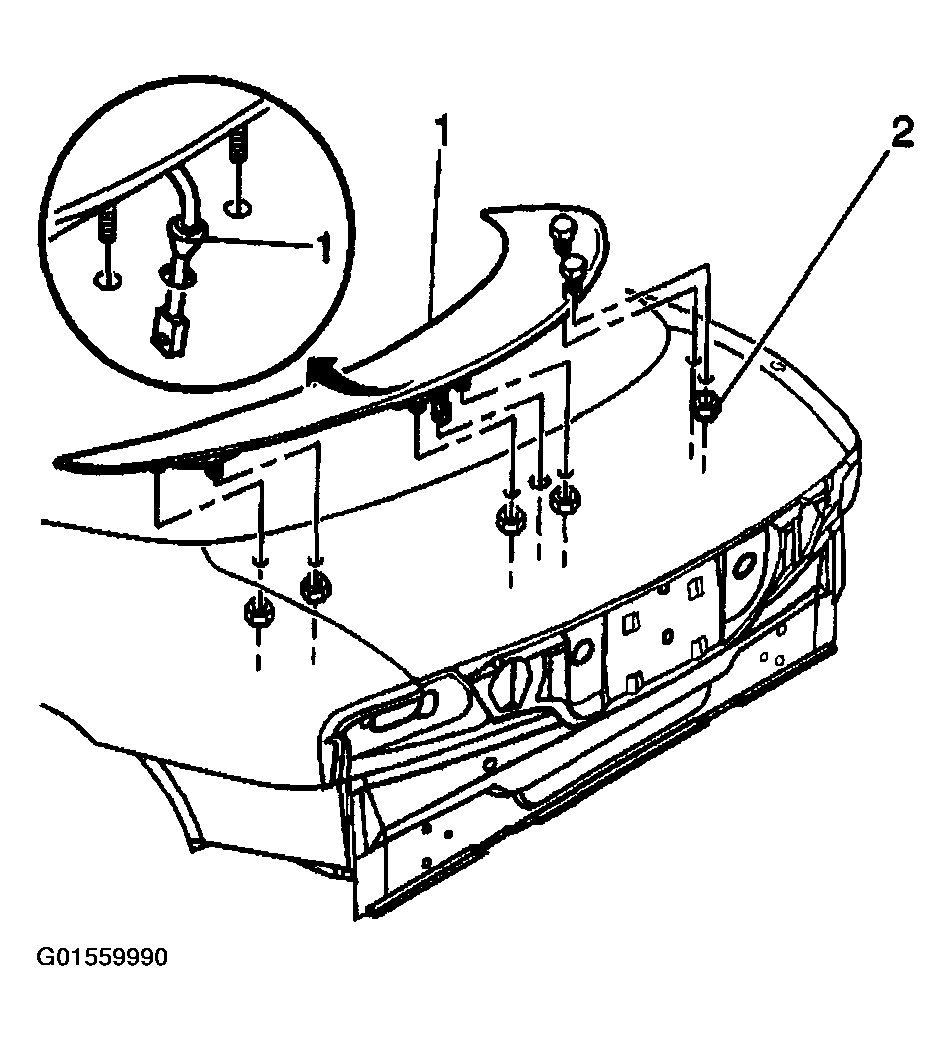

    Fig 1: Installing Nuts To Rear Compartment Lid Spoiler
    G01559990Courtesy of GENERAL MOTORS CORP.
  3. Pull gently on the spoiler wire harness in order to seat the grommet.
  4. Connect the wire harness connector (1) to the rear compartment lid spoiler.

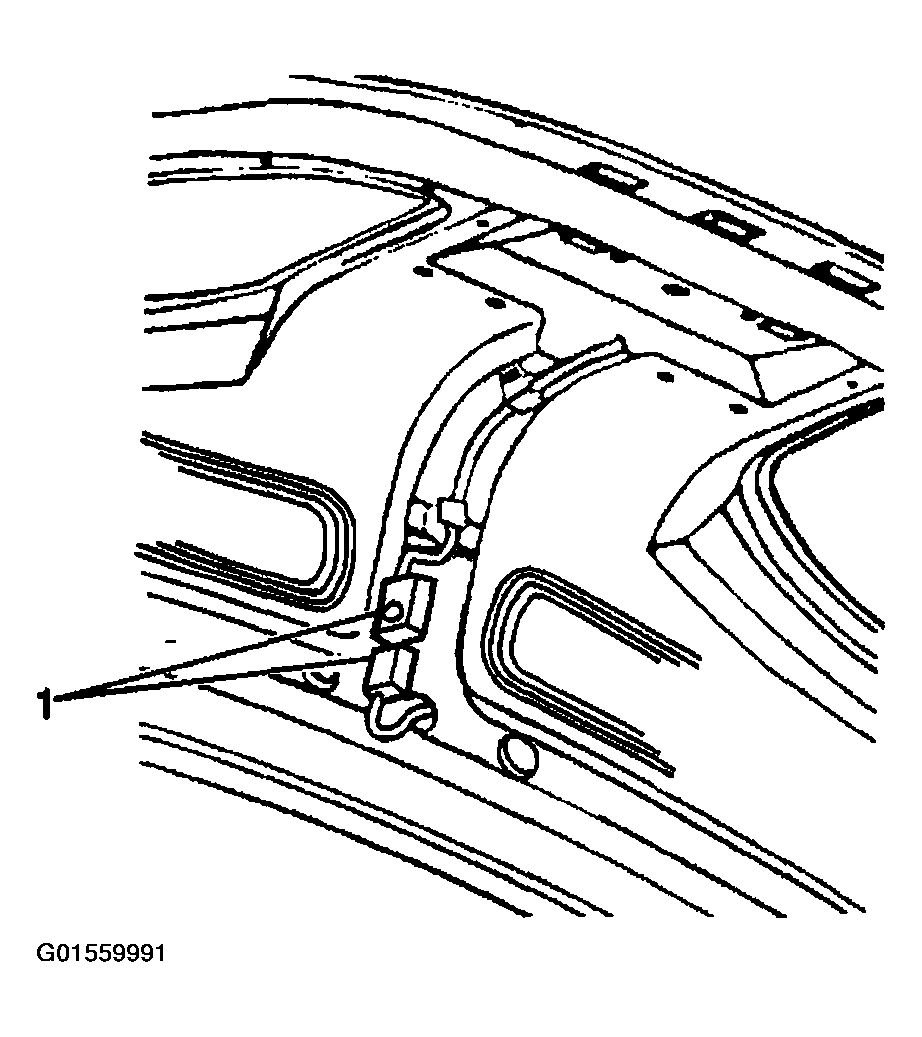

    Fig 2: Connecting Wire Harness Connector To Rear Compartment Lid Spoiler
    G01559991Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the nuts (3) to the rear compartment lid spoiler.

    Tighten

    Tighten the rear compartment lid spoiler nuts to 5 N.m (44 lb in).

  6. Install the rear compartment lid spoiler bolts (4).

    Tighten

    Tighten the rear compartment lid spoiler bolts to 5 N.m (44 lb in).

    Fig 3: Installing Rear Compartment Lid Spoiler
    G01559992Courtesy of GENERAL MOTORS CORP.
  7. Install the retaining nut access plugs.

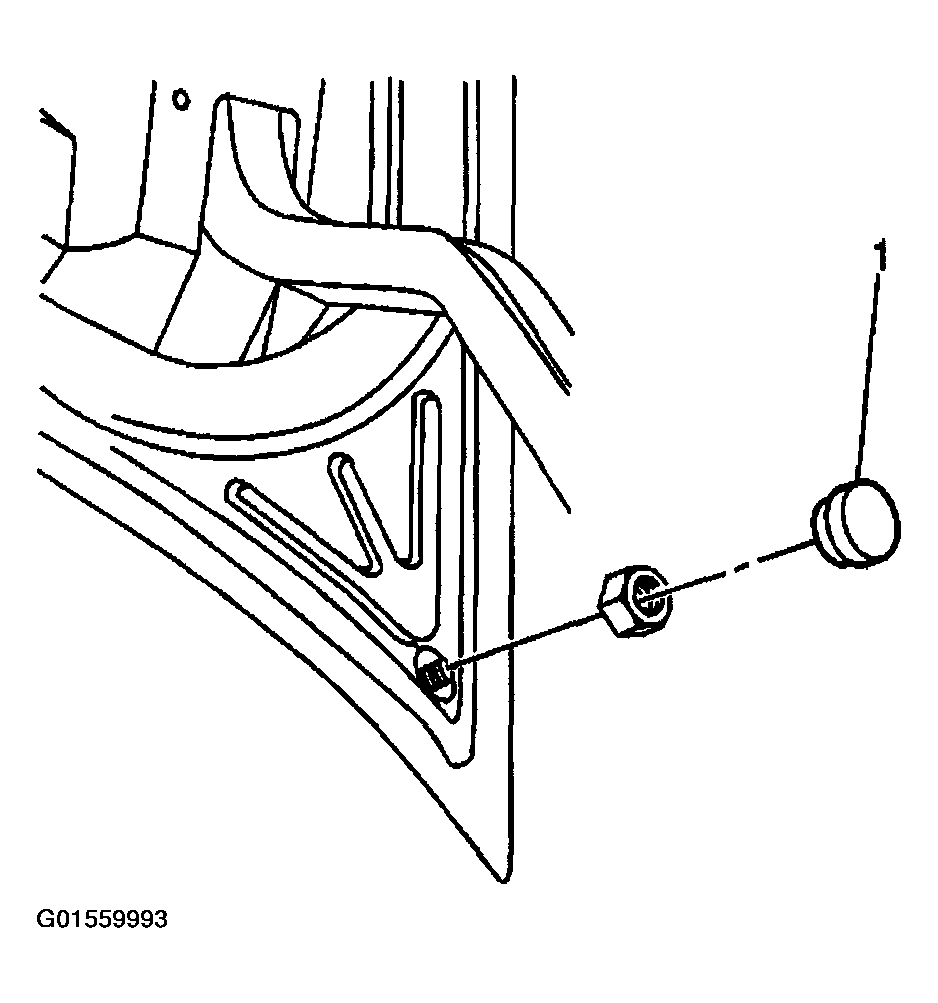

    Fig 4: Installing Retaining Nut Access Plugs
    G01559993Courtesy of GENERAL MOTORS CORP.
