Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the spoiler on the rear compartment lid.
  2. Push firmly on the outboard edges of the spoiler to seat the spoiler into the grommets on the rear compartment lid.
  3. Pull gently on the wire harness of the spoiler in order to seat the grommet.

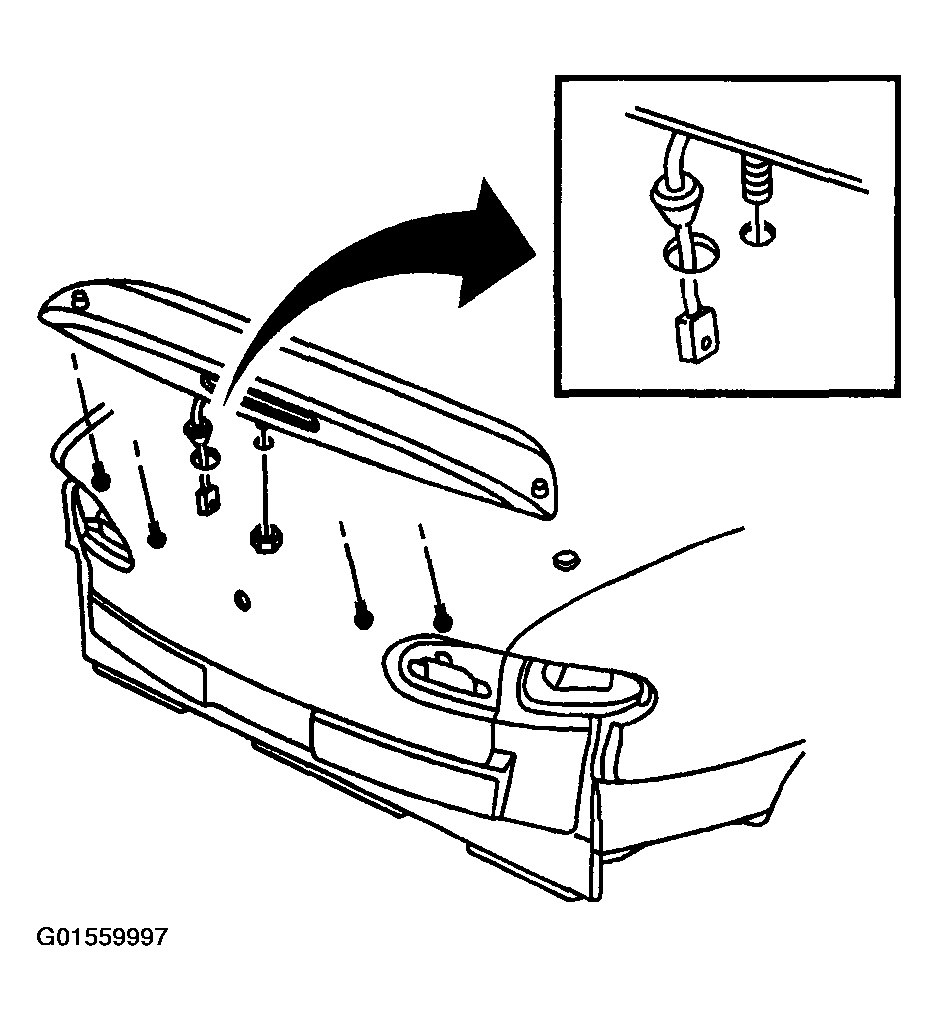

    Fig 1: Installing Bolts From Spoiler - Rear (Chevrolet)
    G01559997Courtesy of GENERAL MOTORS CORP.
  4. Connect the wire harness connector (1) to the spoiler.

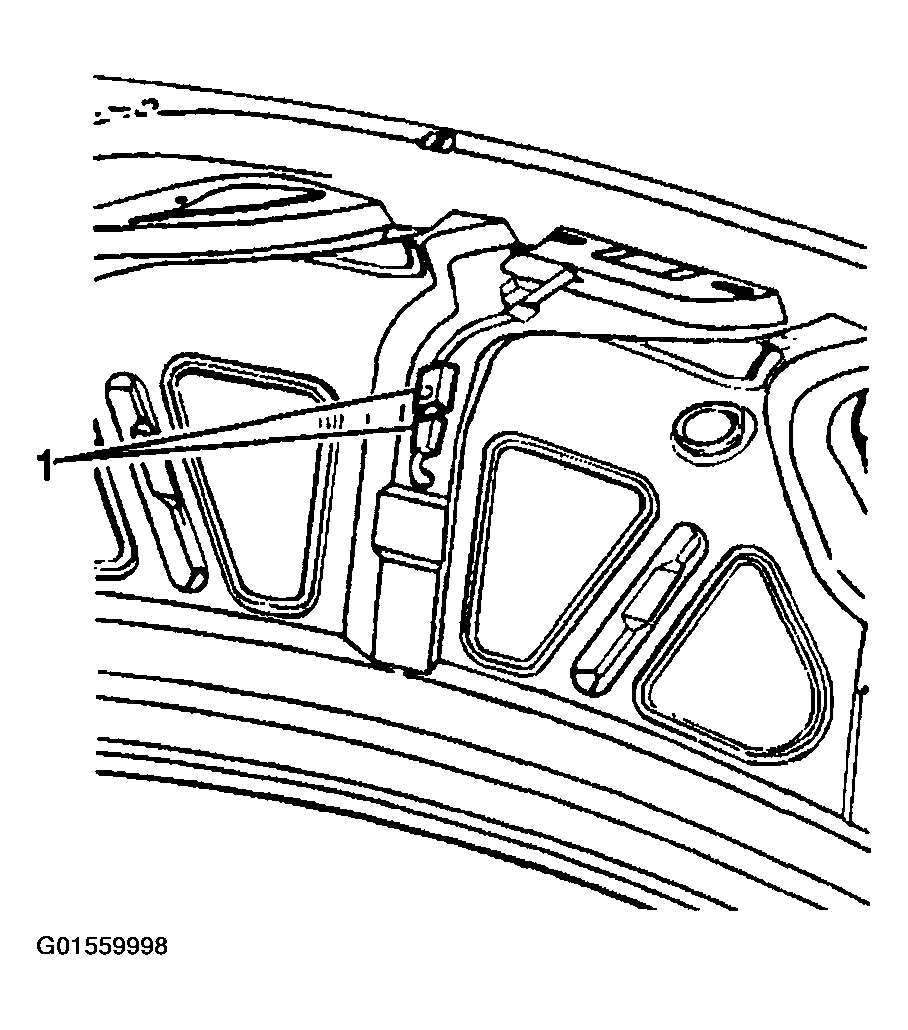

    Fig 2: Connecting Wire Harness Connector To Spoiler
    G01559998Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the spoiler nut.

    Tighten

    Tighten the nut to 5 N.m (44 lb in).

  6. Install the spoiler bolts (4).

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

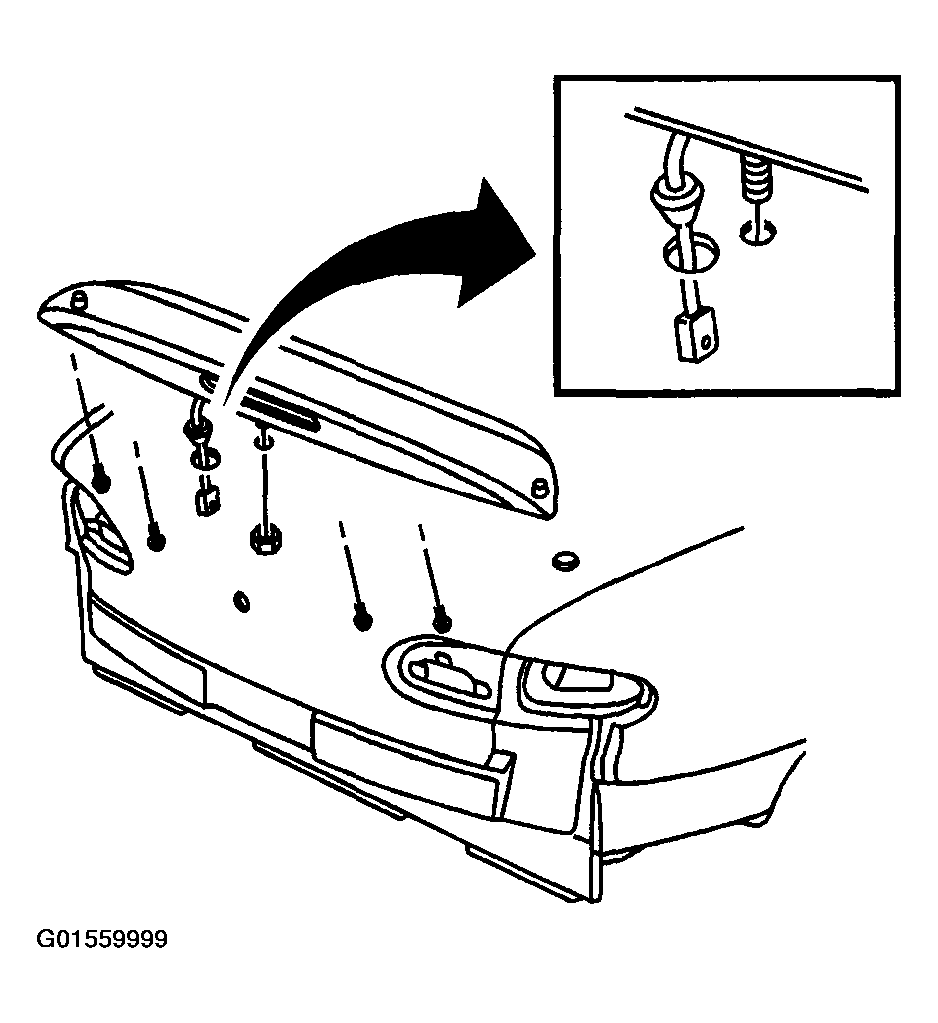

    Fig 3: Installing Spoiler Nuts
    G01559999Courtesy of GENERAL MOTORS CORP.
