Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool to release the retaining tabs for the rear compartment lid switch.

    Remove the switch from the Instrument Panel (IP) carrier.

  2. Disconnect the electrical connector.

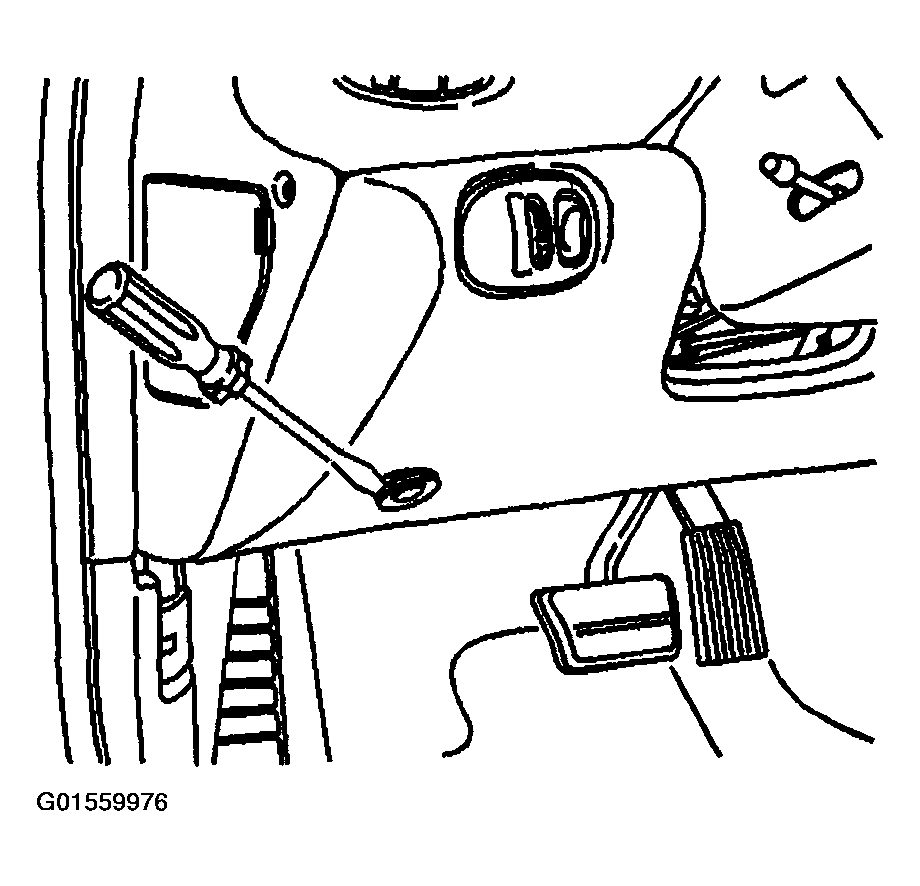

    Fig 1: Releasing Retaining Tabs For Rear Compartment Lid Switch Using A Flat-Bladed Tool
    G01559976Courtesy of GENERAL MOTORS CORP.
