Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (CHEVROLET) or FASCIA REPLACEMENT - REAR BUMPER (PONTIAC) .
  2. Pull back the rear compartment trim from the right rear corner in order to expose the quarter outer panel pressure relief valve.
  3. Remove the quarter outer panel pressure relief valve (1).

    Disengage the tabs from the inside of the rear compartment.

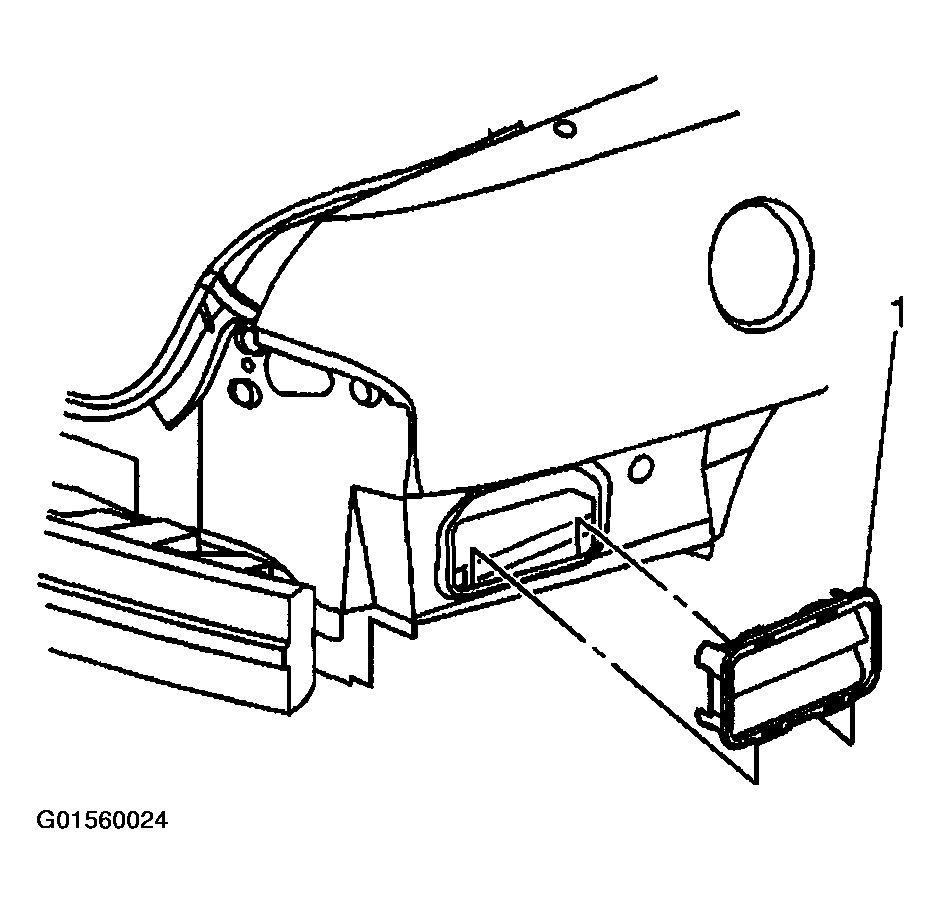

    Fig 1: Removing Pressure Relief Valve
    G01560024Courtesy of GENERAL MOTORS CORP.
