Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pressure relief valve (1) by sliding the valve into the opening and engaging the tabs.

    Fully engage the retaining tabs.

  2. Install the rear compartment trim.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (CHEVROLET) or FASCIA REPLACEMENT - REAR BUMPER (PONTIAC) .

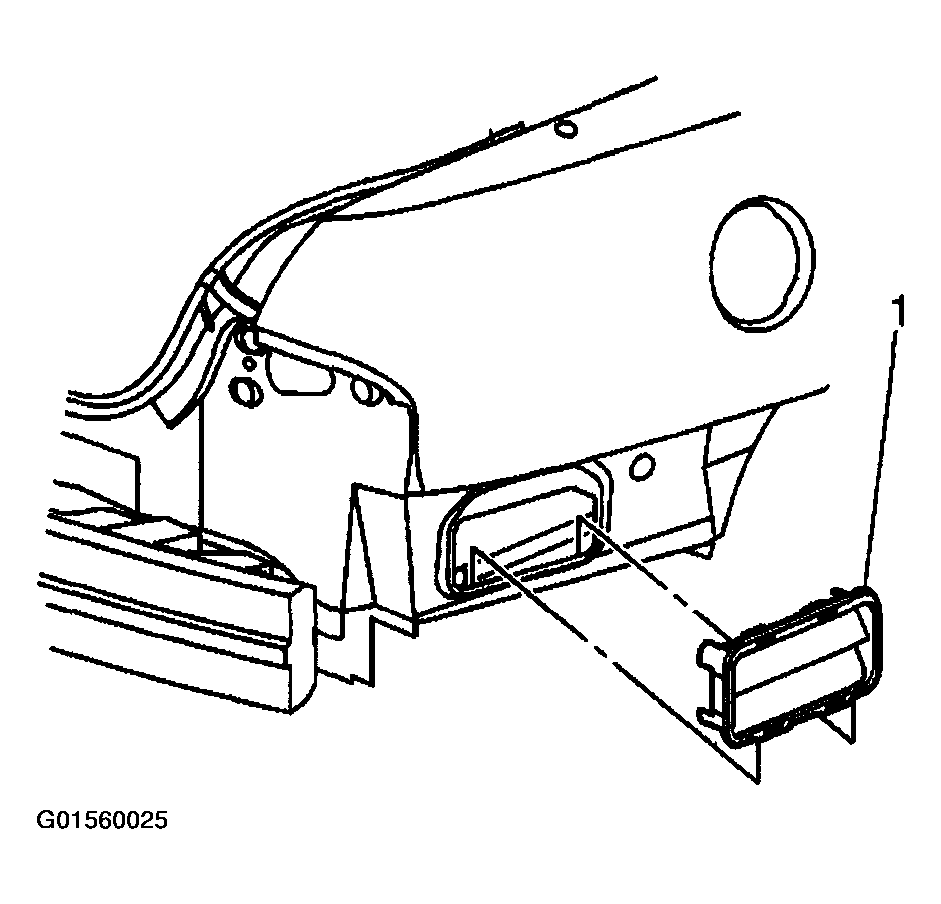

    Fig 1: Installing Pressure Relief Valve
    G01560025Courtesy of GENERAL MOTORS CORP.
