Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the rear compartment lid outer bumper (1) by unscrewing counterclockwise.

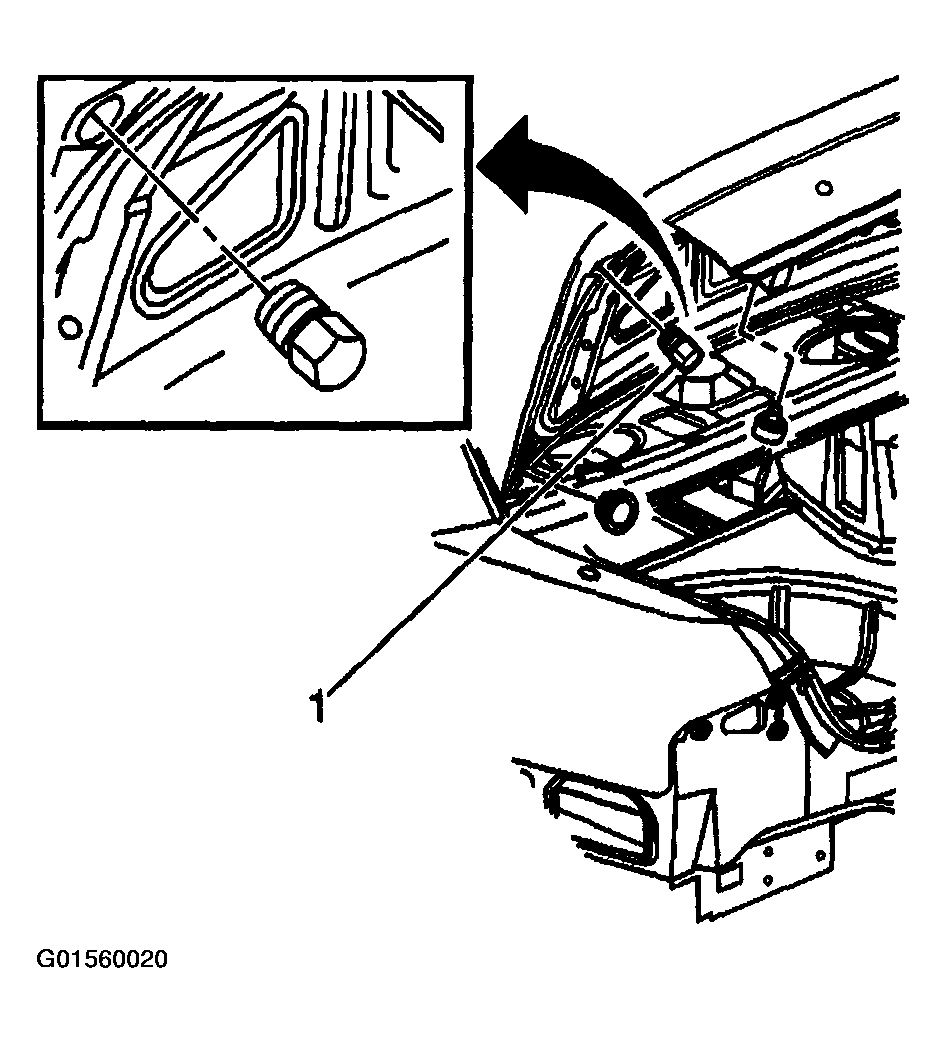

    Fig 1: Removing Rear Compartment Lid Outer Bumper
    G01560020Courtesy of GENERAL MOTORS CORP.
