Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear compartment lid outer bumper (1) by rotating the bumper until the lid is flush with the rear quarter.
  2. Close the rear compartment.
  3. Inspect the lid for proper fit.

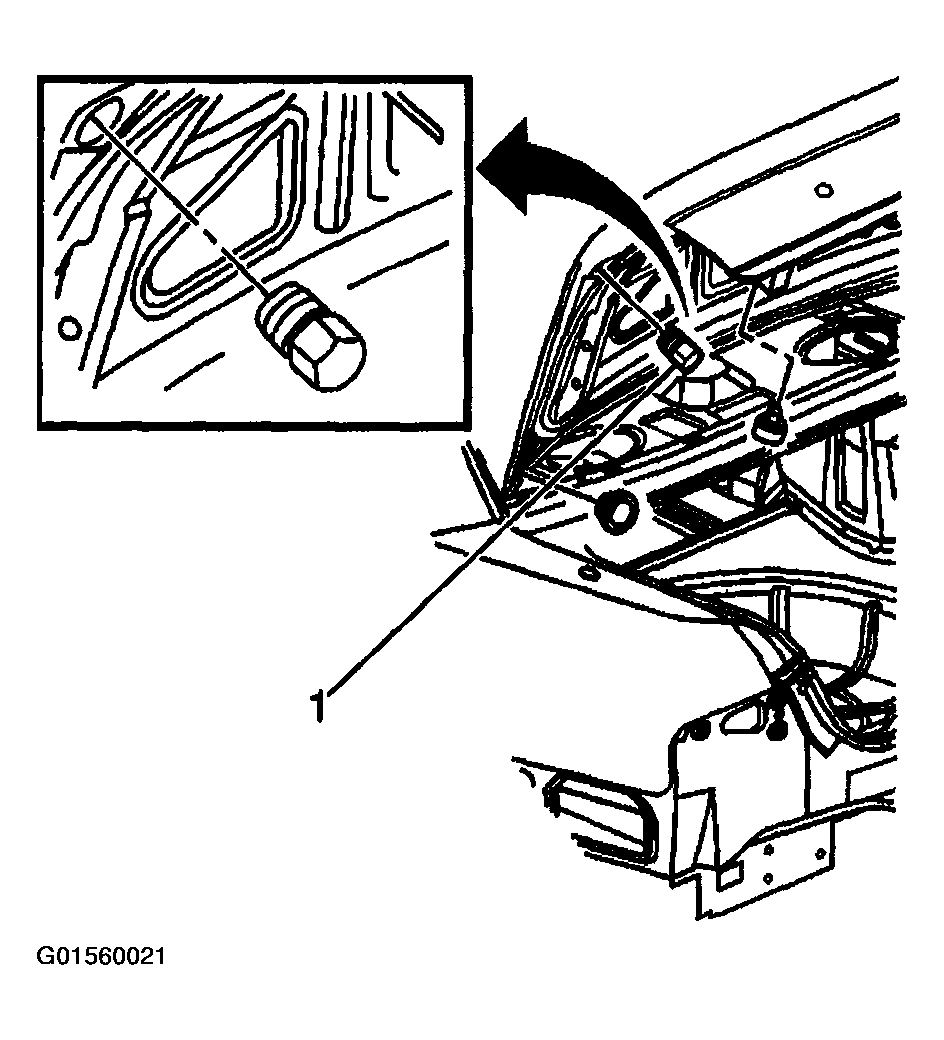

    Fig 1: Installing Rear Compartment Lid Outer Bumper
    G01560021Courtesy of GENERAL MOTORS CORP.
