Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment sill plate. Refer to COMPARTMENT SILL PLATE REPLACEMENT - REAR  .
  2. Pull back the rear compartment trim panel and with a grease pencil, mark the location of the lock striker.
  3. Remove the lock striker nuts (3).
  4. Remove the lock striker reinforcement plate (2).
  5. Remove the lock striker (1) from the rear compartment.

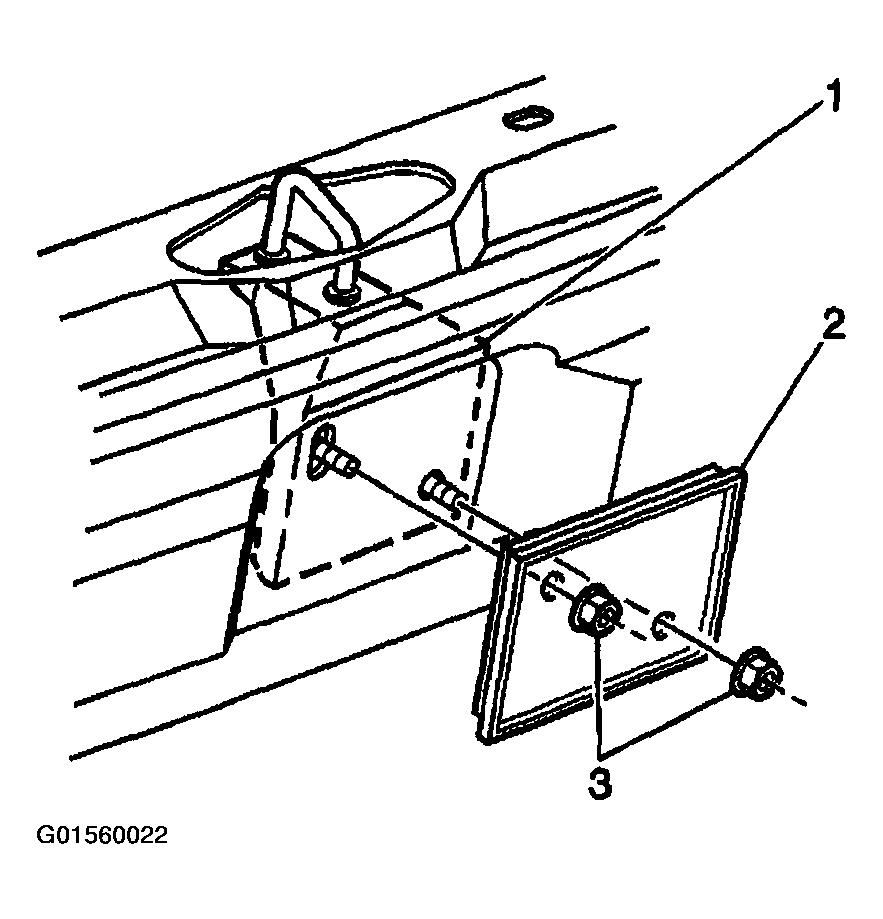

    Fig 1: Removing Lock Striker From Rear Compartment
    G01560022Courtesy of GENERAL MOTORS CORP.
