Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lock striker (1) to the alignment marks.
  2. Install the lock striker reinforcement plate (2).
  3. Install and hand tighten the striker nuts (3).
  4. Slowly close the compartment lid and check the striker alignment.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Tighten the lock striker nuts (3).

    Tighten

    Tighten the rear compartment lid lock striker nuts to 10 N.m (89 lb in).

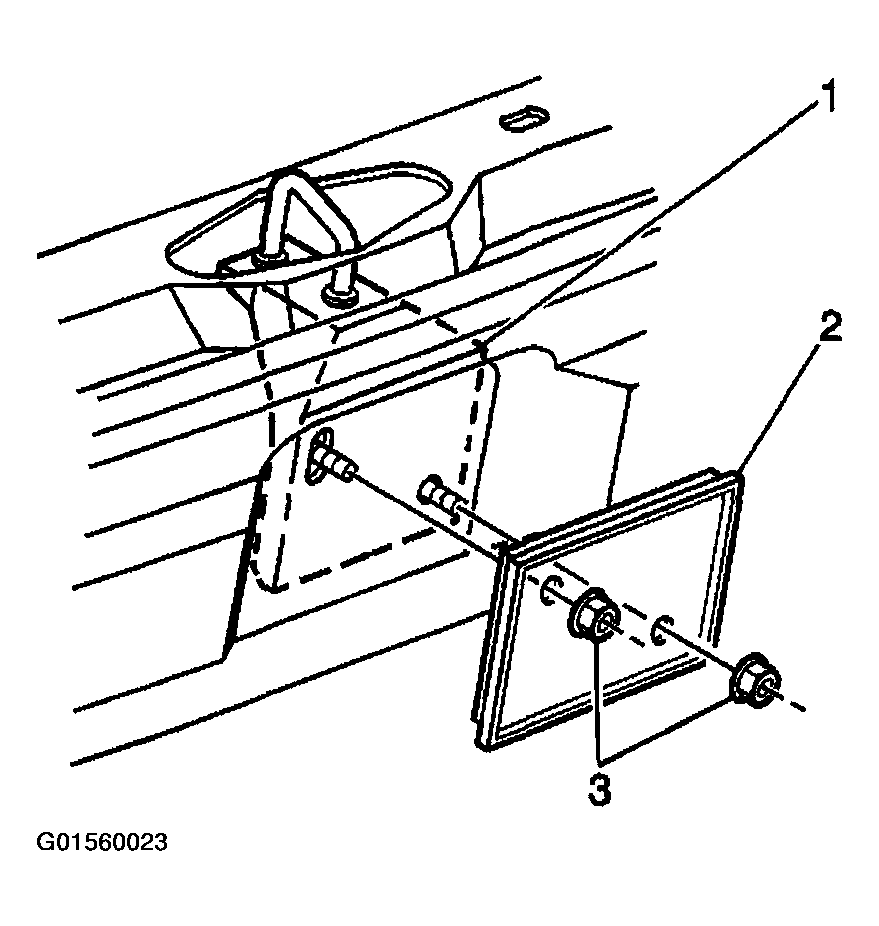

    Fig 1: Installing Lock Striker To Rear Compartment
    G01560023Courtesy of GENERAL MOTORS CORP.
