Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the compartment lid applique. Refer to COMPARTMENT LID APPLIQUE REPLACEMENT - REAR (PONTIAC SEDAN/CHEVROLET - ALL)  .
  2. Remove the compartment lid latch cable assembly (8) from behind the lid lock. Spread the black plastic housing and pull down.

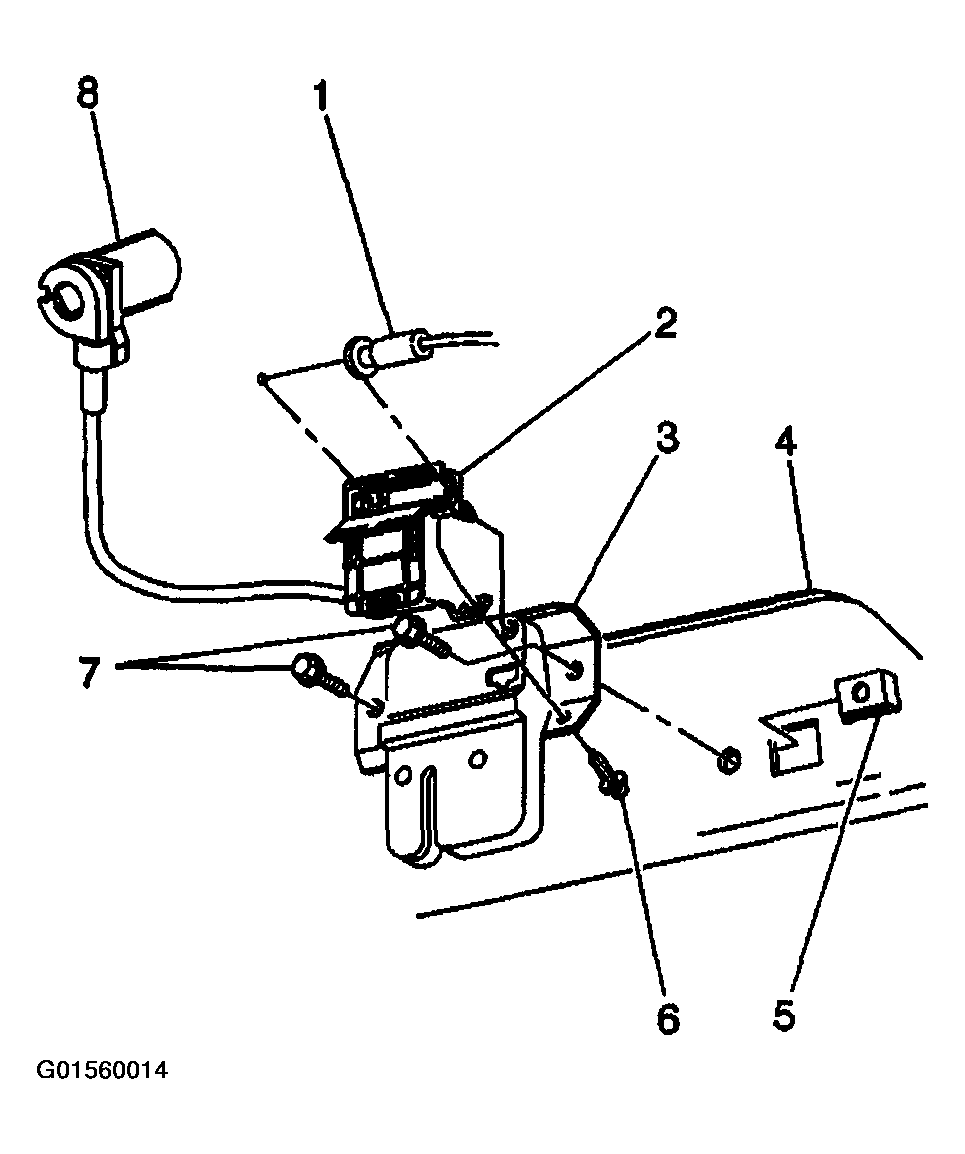

    Fig 1: Removing Compartment Lid Latch Cable Assembly From Behind Lid Lock
    G01560014Courtesy of GENERAL MOTORS CORP.
  3. For the Cavalier only, remove the compartment lid lock cylinder retainer (4).
  4. For the Sunfire only, drill out the rivets.
  5. Remove the compartment lid lock cylinder (1).

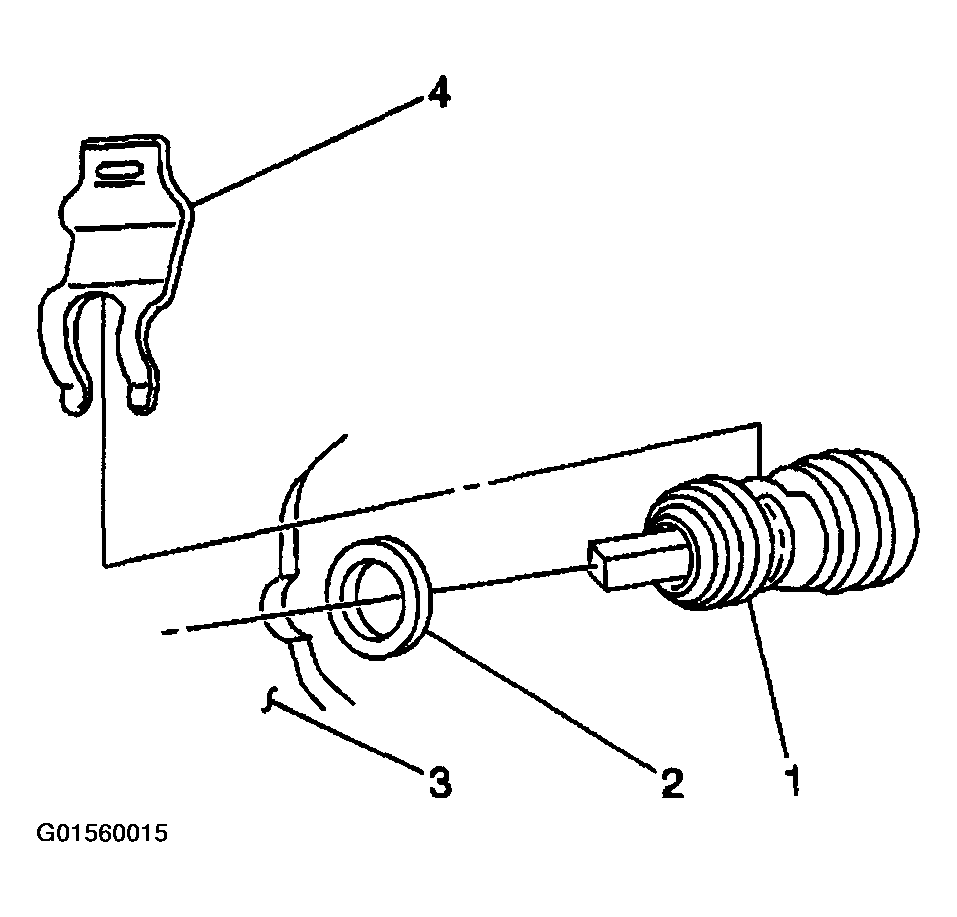

    Fig 2: Removing Compartment Lid Lock Cylinder
    G01560015Courtesy of GENERAL MOTORS CORP.
