Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the compartment lid lock cylinder (1).
  2. For the Cavalier only, install the compartment lid lock cylinder retainer (4).
  3. For the Sunfire only, install the spacer and the lock rivets Rivets.

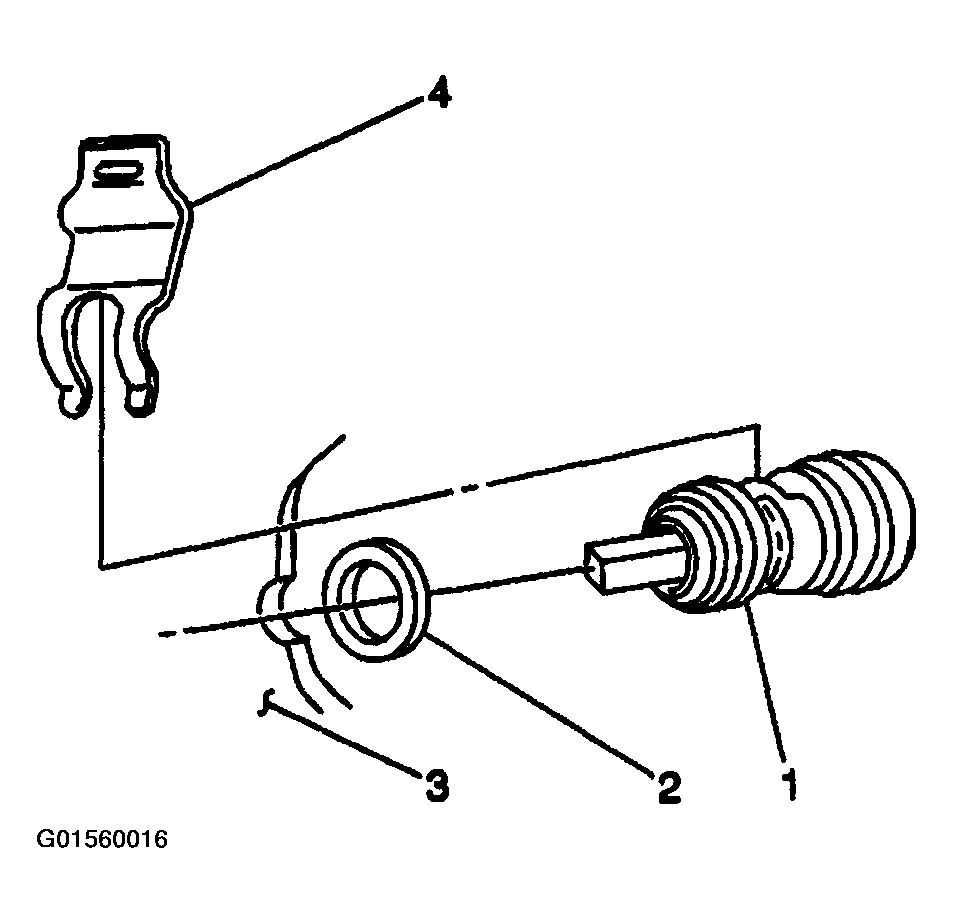

    Fig 1: Installing Compartment Lid Lock Cylinder
    G01560016Courtesy of GENERAL MOTORS CORP.
  4. Install the compartment lid lock cable assembly (8).
  5. Install the compartment lid applique. Refer to COMPARTMENT LID APPLIQUE REPLACEMENT - REAR (PONTIAC SEDAN/CHEVROLET - ALL)  .

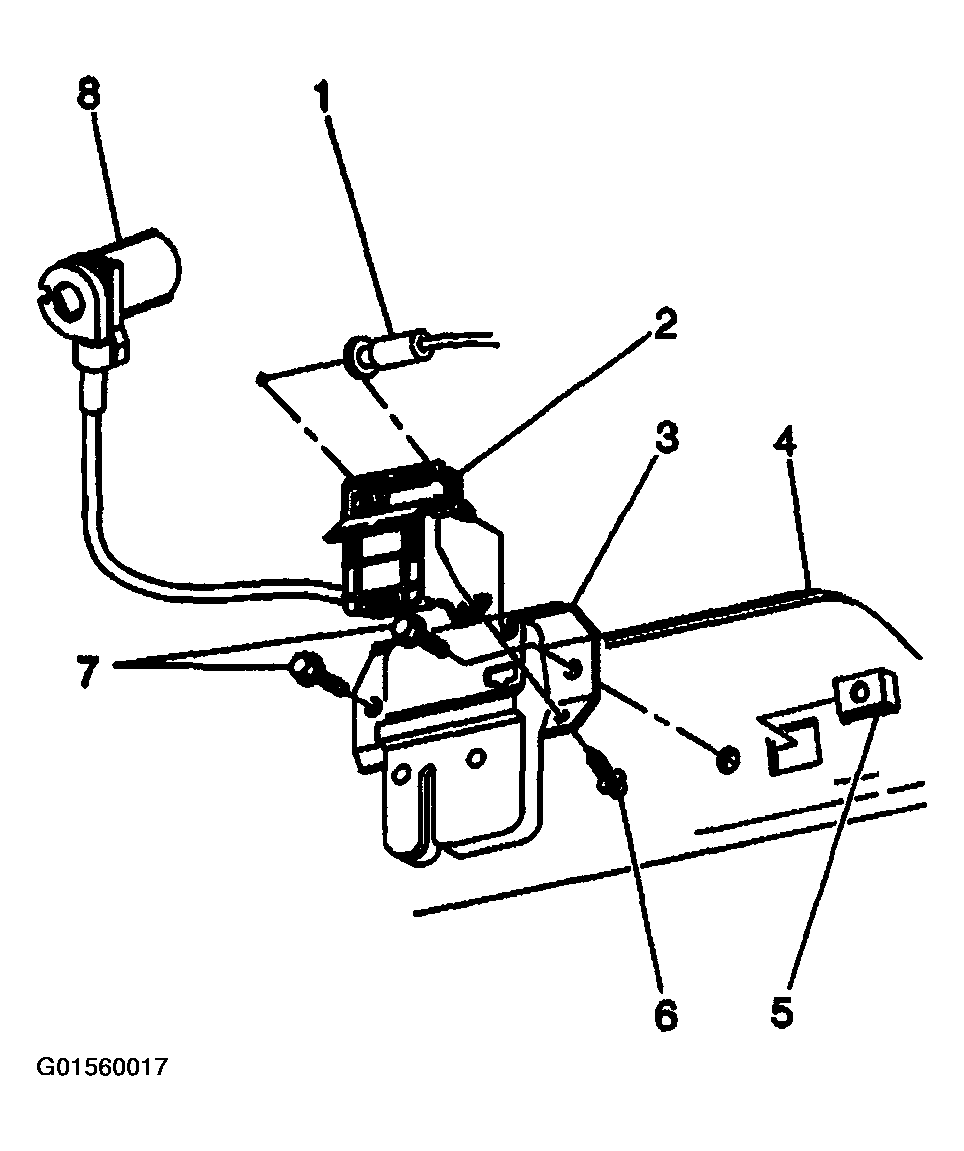

    Fig 2: Installing Compartment Lid Lock Cable Assembly
    G01560017Courtesy of GENERAL MOTORS CORP.
