Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. With a grease pencil, mark the location of the latch on the compartment lid.
  2. Remove the lock cable assembly (8).
  3. Unclip the cable door at the top of the lock release box (2) to expose the remote release cable, if equipped.
  4. Remove the remote release cable (1) from the lock release box, if equipped.
  5. Remove the latch cable assembly bolts (7).
  6. Remove the latch assembly (3).

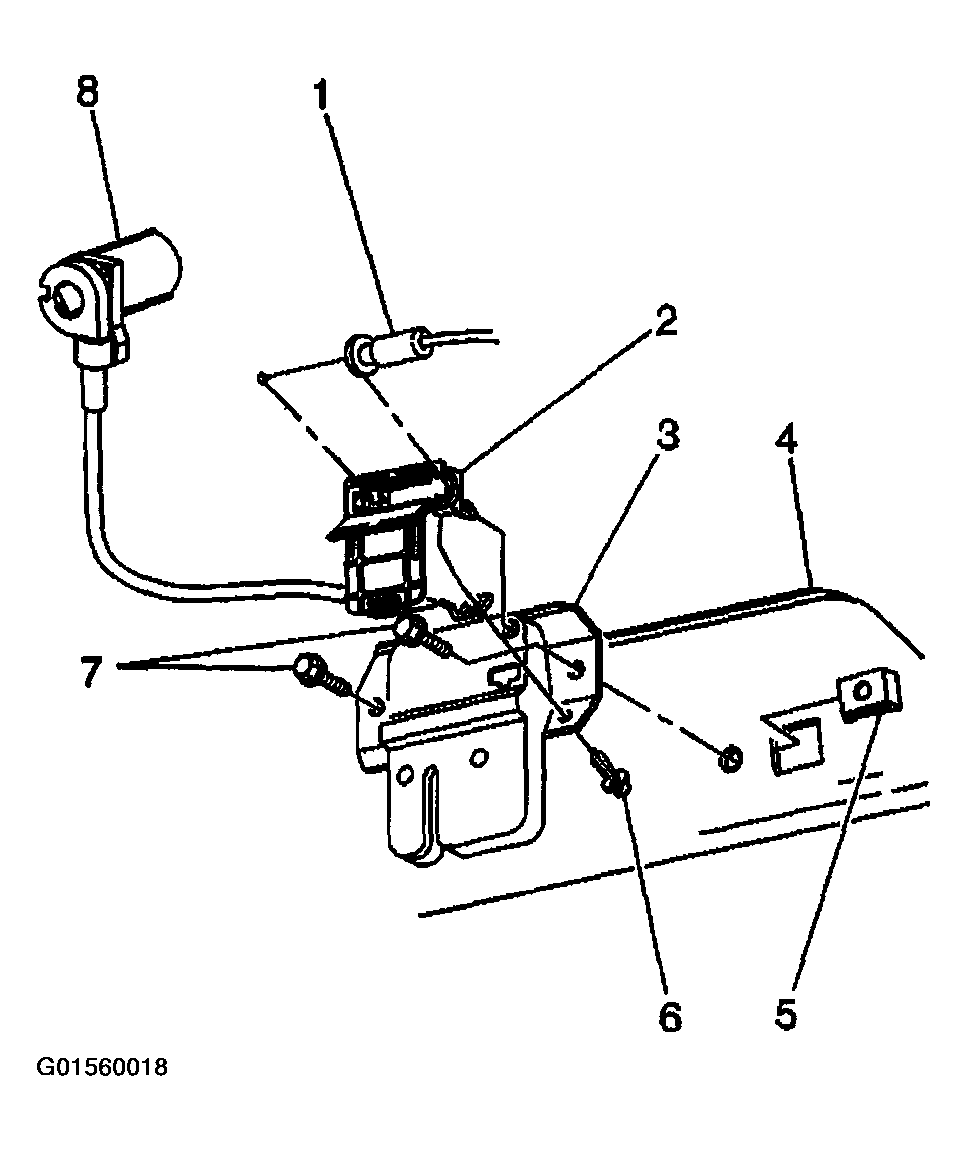

    Fig 1: Removing Latch Assembly
    G01560018Courtesy of GENERAL MOTORS CORP.
