Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the latch assembly (3) to the alignment marks.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the latch assembly bolts (7).

    Tighten

    Tighten the rear compartment lid latch assembly bolts to 6 N.m (53 lb in).

  3. Install the remote release cable (1) to the lock release box, if equipped.
  4. Clip the cable door at the top of the lock release box (2), if equipped.
  5. Install the lock cable assembly (8).

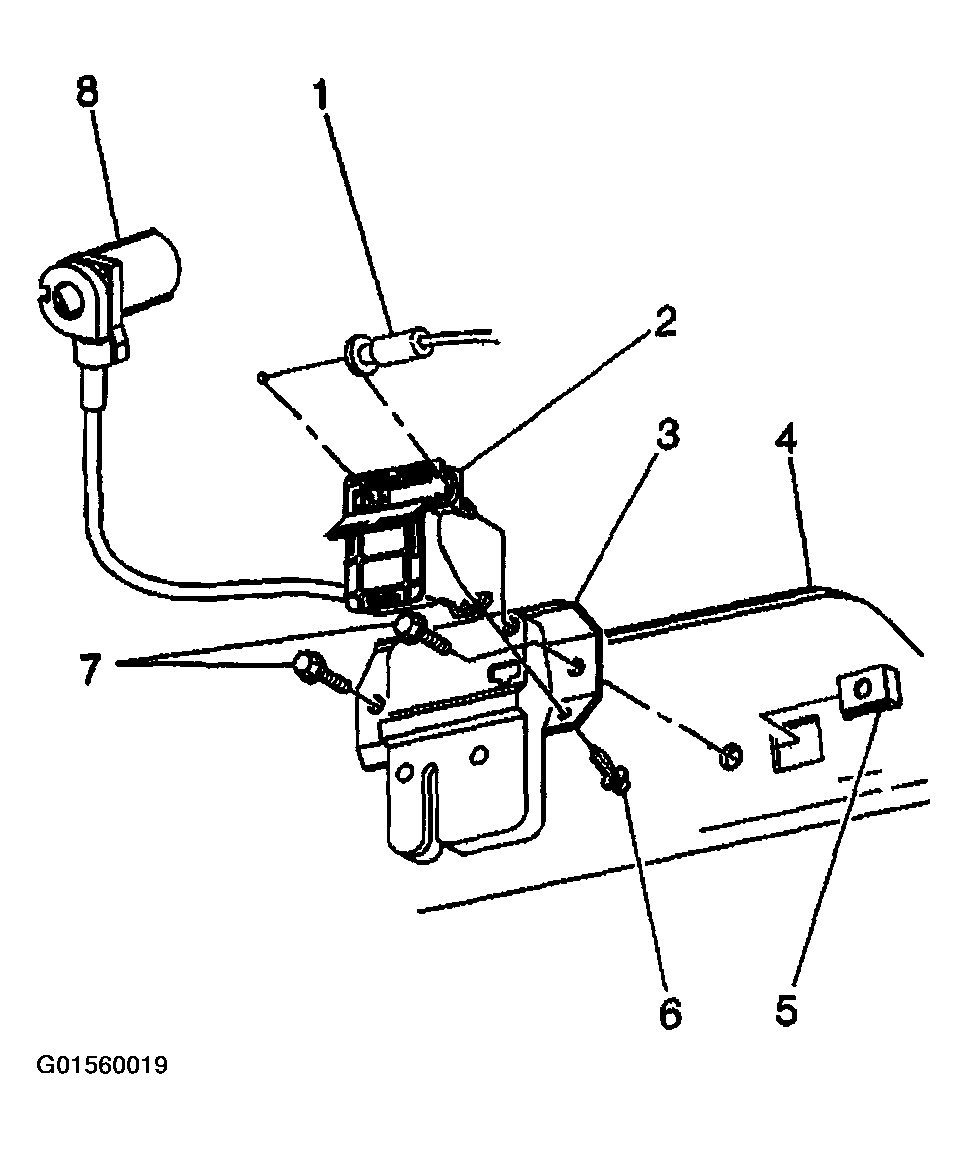

    Fig 1: Installing Latch Assembly
    G01560019Courtesy of GENERAL MOTORS CORP.
