Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the compartment lid. Refer to COMPARTMENT LID REPLACEMENT - REAR  .
  2. Remove the wire harness rosebuds from the hinge arm.
  3. Remove the compartment lid torque rods. Refer to TORQUE ROD REPLACEMENT - REAR COMPARTMENT LID  .
  4. Remove the rear panel window trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  5. Remove the compartment lid hinge bolts (3).
  6. Remove the compartment lid hinge (4).

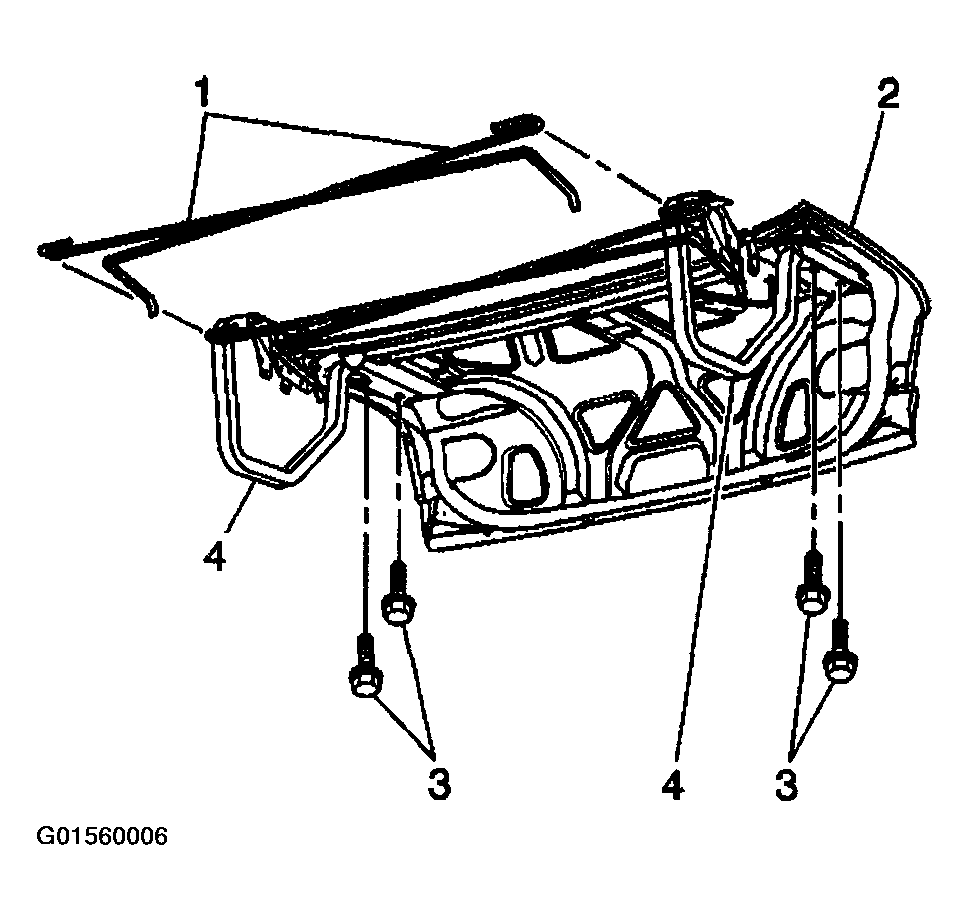

    Fig 1: Removing Compartment Lid Hinge
    G01560006Courtesy of GENERAL MOTORS CORP.
