Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the compartment lid hinge (4).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the hinge bolts (3) to the rear window panel.

    Tighten

    Tighten the rear compartment hinge to rear window panel bolt to 10 N.m (89 lb in).

  3. Install the rear panel window trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  4. Install the compartment lid torque rods. Refer to TORQUE ROD REPLACEMENT - REAR COMPARTMENT LID  .
  5. Install the compartment lid. Refer to COMPARTMENT LID REPLACEMENT - REAR  .
  6. Install the wire harness rosebuds to the hinge arm.
  7. Adjust the compartment lid. Refer to COMPARTMENT LID ADJUSTMENT - REAR  .

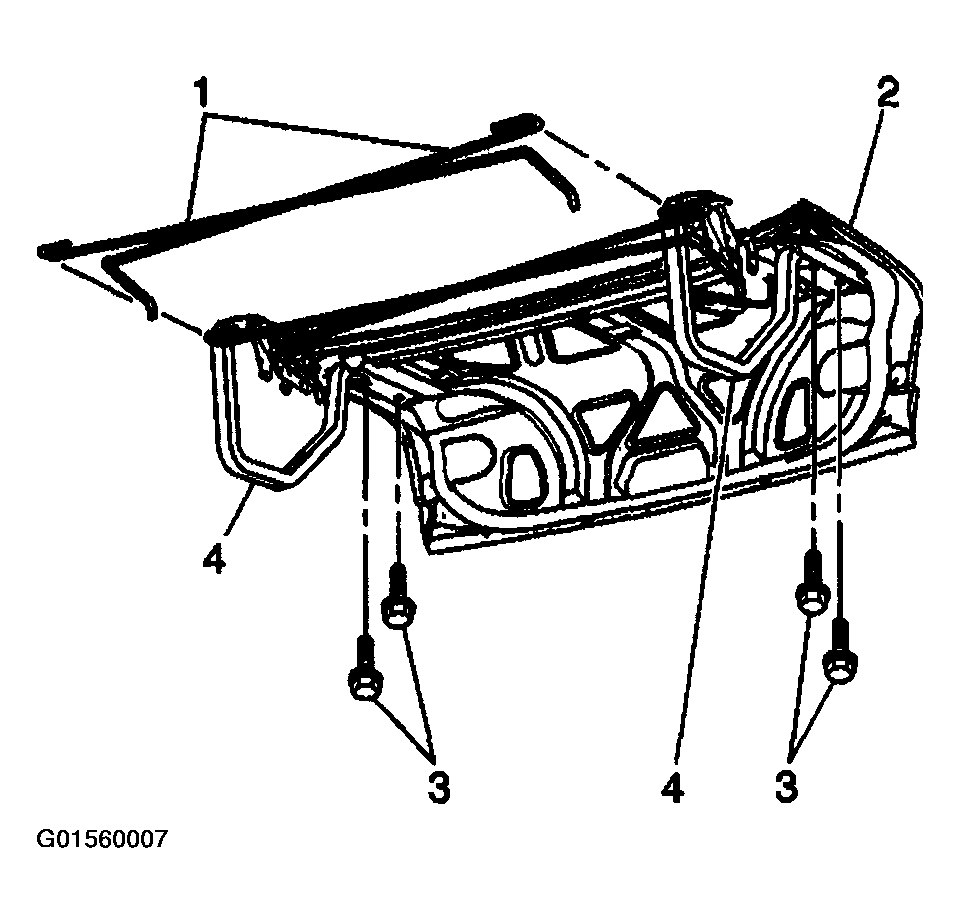

    Fig 1: Installing Compartment Lid Hinge
    G01560007Courtesy of GENERAL MOTORS CORP.
