Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel tank filler pocket (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts (2) to the fuel tank filler pocket.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  3. Install the gas cap.

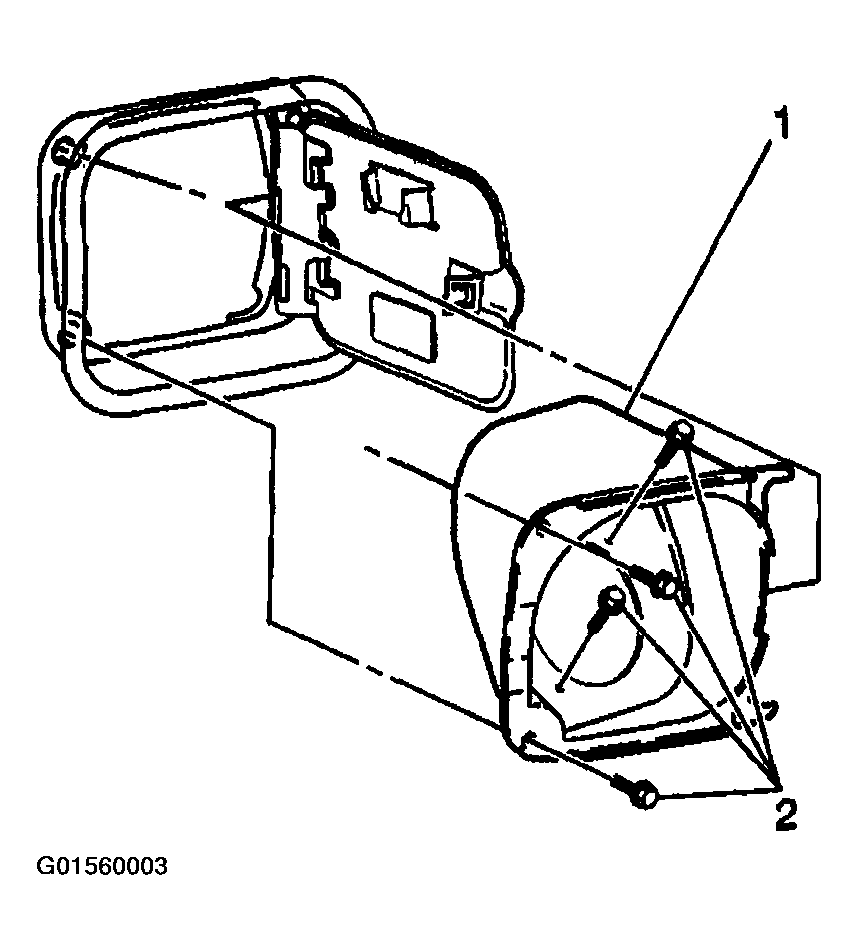

    Fig 1: Installing Fuel Tank Filler Pocket
    G01560003Courtesy of GENERAL MOTORS CORP.
