Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts (2) from the fuel tank filler door.
  2. Remove the fuel tank filler door (1).
  3. Remove the gas cap connector.

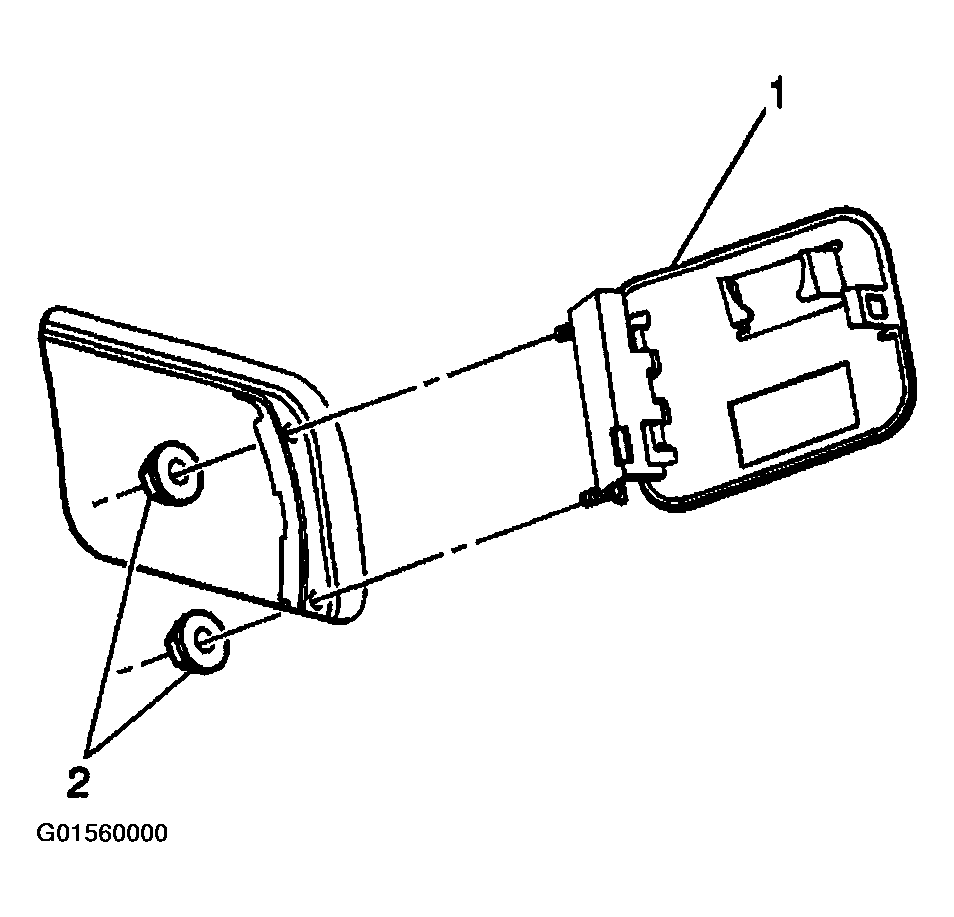

    Fig 1: Removing Fuel Tank Filler Door With Nuts
    G01560000Courtesy of GENERAL MOTORS CORP.
