Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the filler door gas cap connector.
  2. Install the fuel tank filler door.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nuts (2) to the filler door (1).

    Tighten

    Tighten the fuel tank filler door nuts to 2.8 N.m (24.8 lb in).

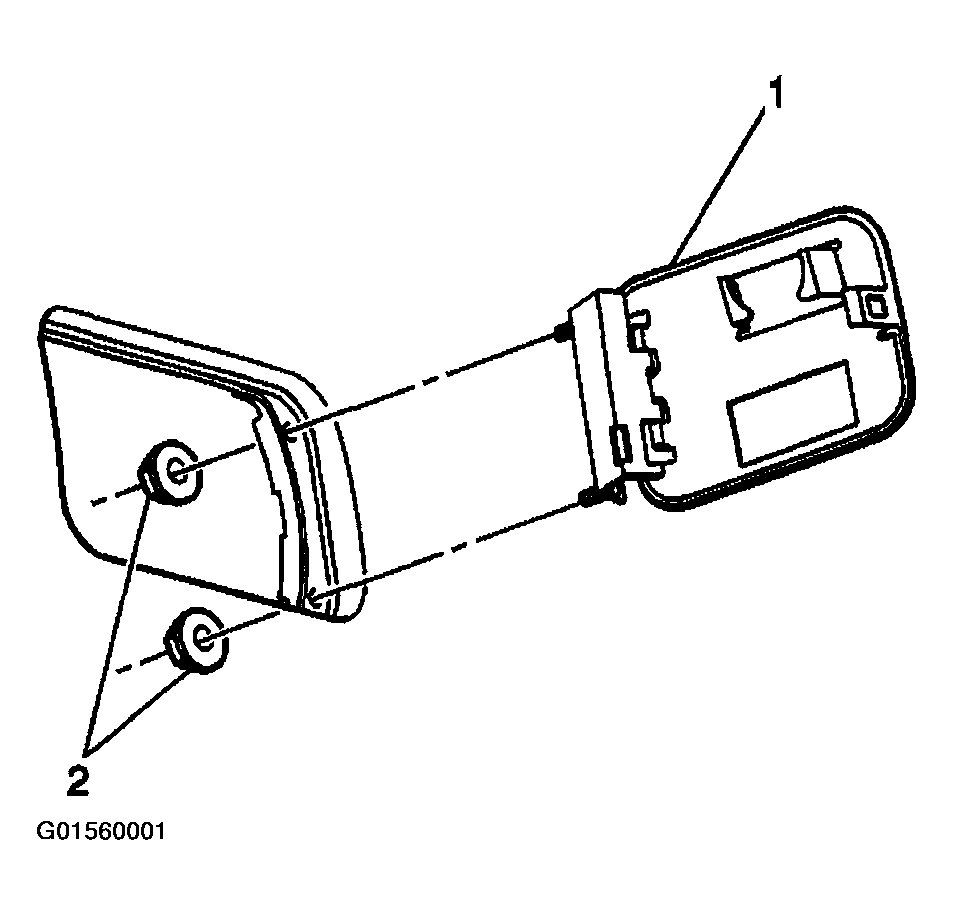

    Fig 1: Installing Fuel Tank Filler Door With Nuts
    G01560001Courtesy of GENERAL MOTORS CORP.
