Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment lid.
  2. Lift upward on the inner edge of the sill trim plate and remove the plate from the rear body panel.
  3. Remove the spare tire cover retainer.
  4. Remove the rear compartment spare tire cover.
  5. Remove the cargo net, if equipped.
  6. Remove the push-in retainers (2) near the tail lamps, if equipped.

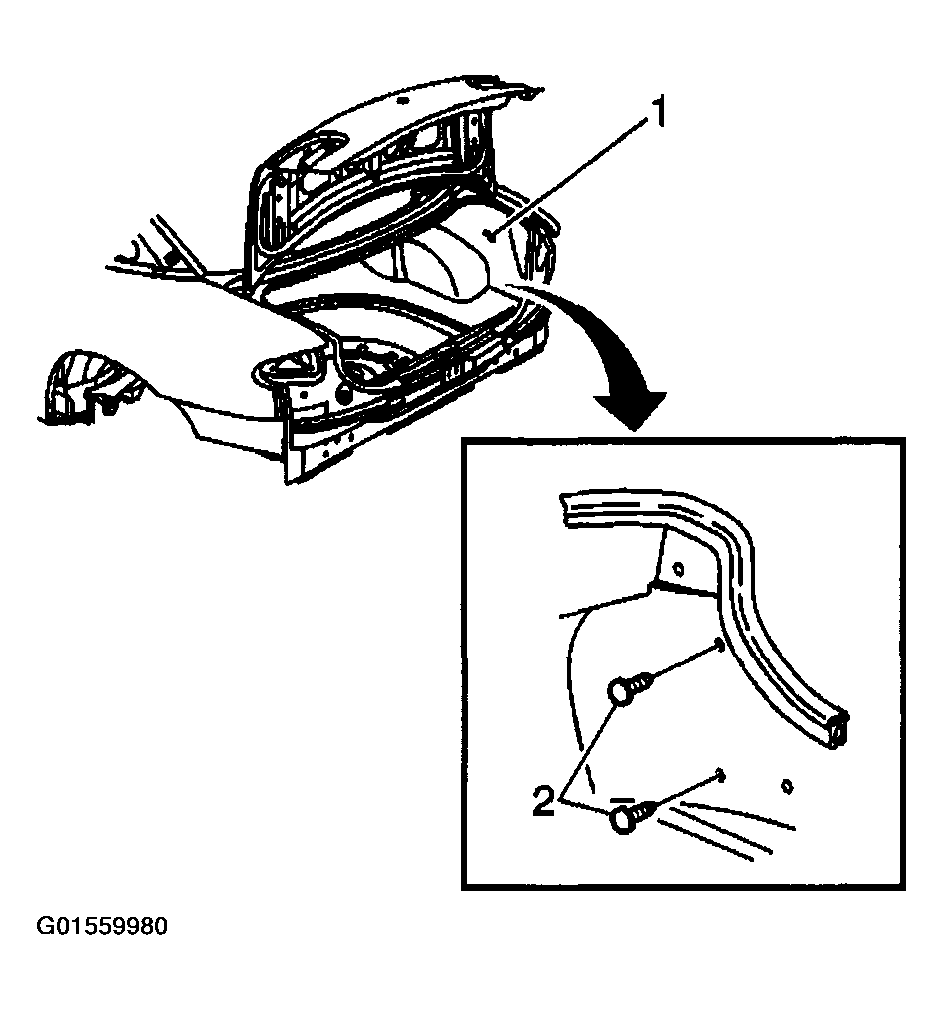

    Fig 1: Removing Retainers Near Tail Lamps
    G01559980Courtesy of GENERAL MOTORS CORP.
  7. Fold down the rear seat back.
  8. Remove the push-in retainer from the left rear shock tower.
  9. Fold the right section of the rear compartment trim panel toward the center of the compartment and remove it.

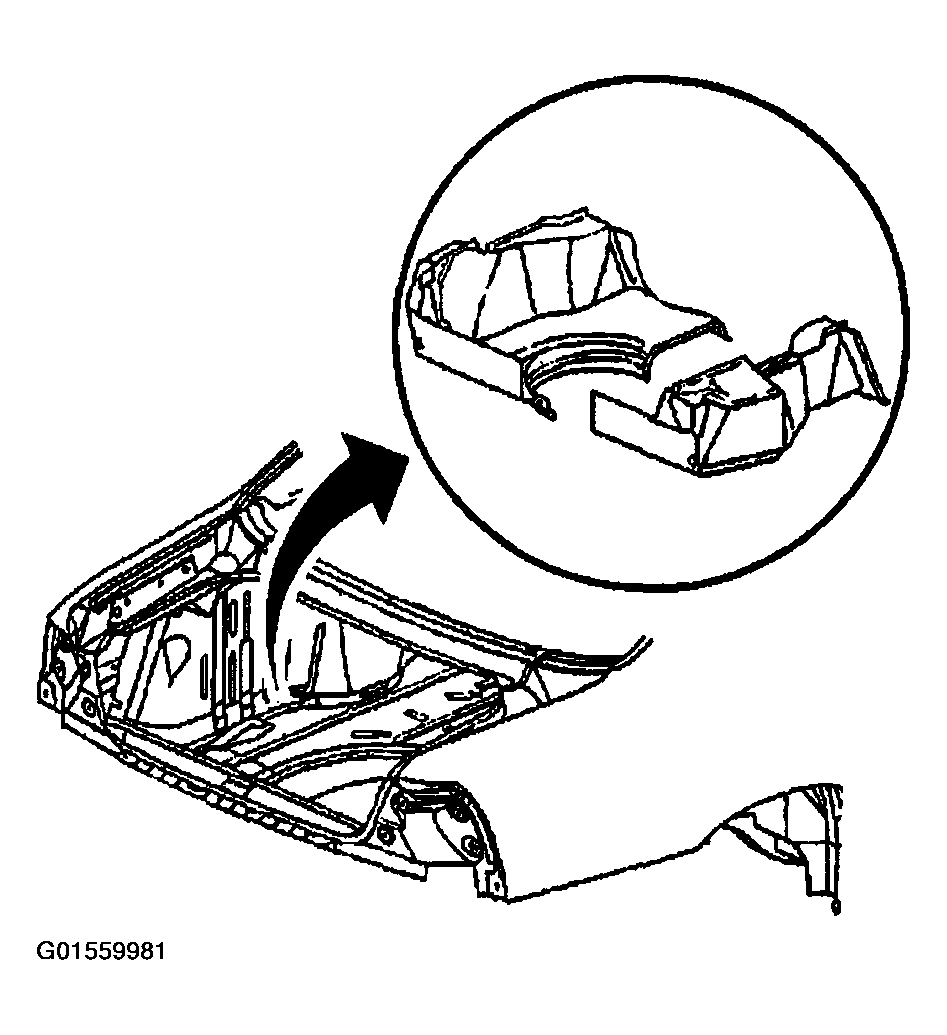

    Fig 2: Removing Trim Panel From Rear Compartment
    G01559981Courtesy of GENERAL MOTORS CORP.
