Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the wire harness sockets from the back-up light.
  2. Remove the nuts (1) from the rear compartment lid applique.
  3. Remove the lid applique (5) from the rear compartment.

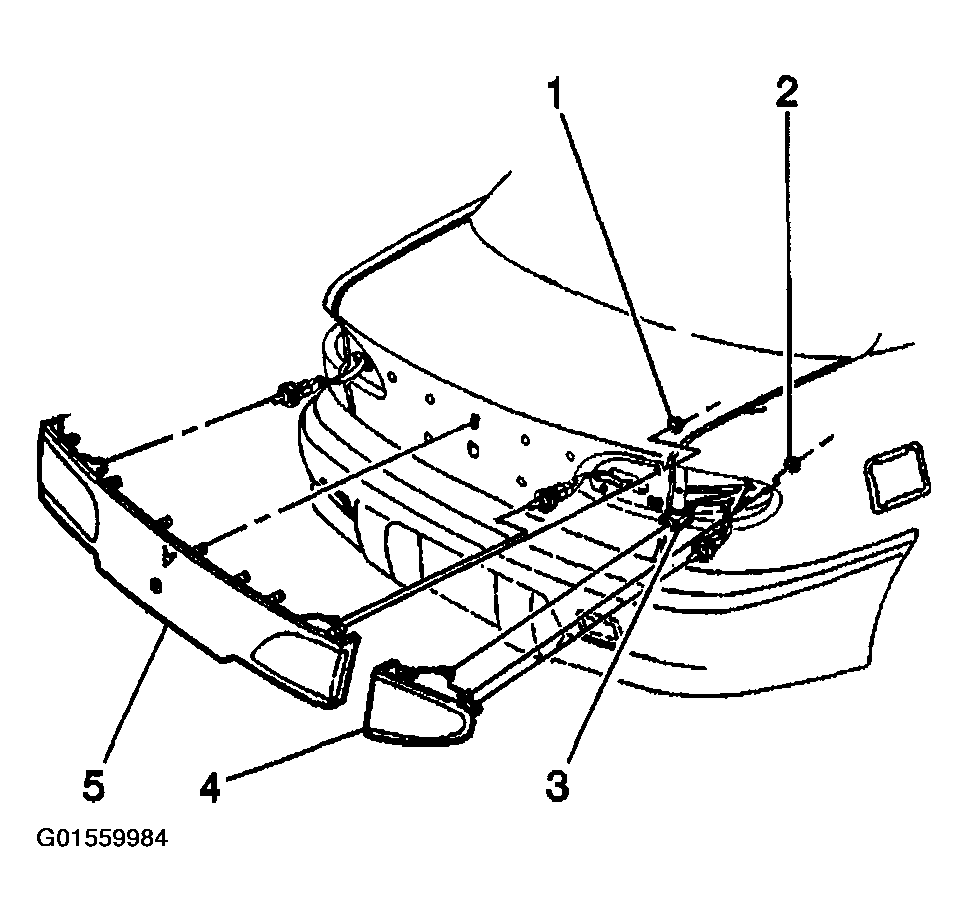

    Fig 1: Removing Lid Applique From Rear Compartment
    G01559984Courtesy of GENERAL MOTORS CORP.
