Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lid applique (5) to the rear compartment.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts (1) to the rear compartment lid applique.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

  3. Connect the wire harness sockets to the back-up light assemblies.

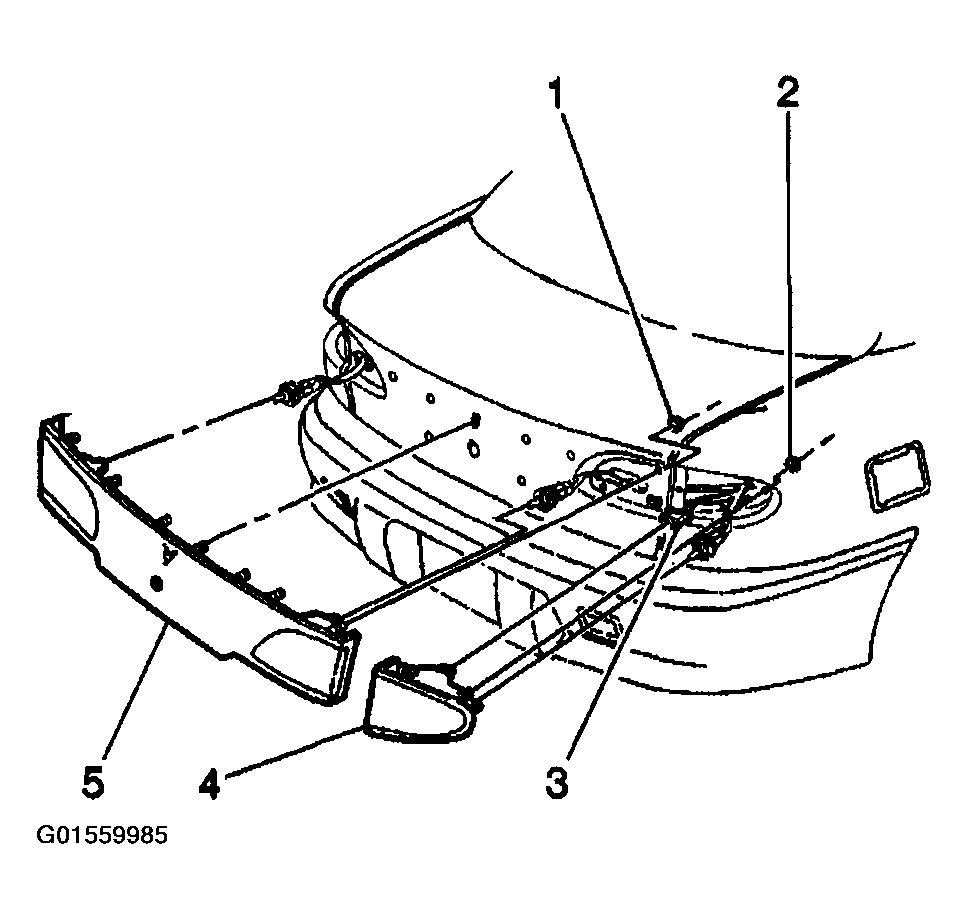

    Fig 1: Installing Lid Applique To Rear Compartment
    G01559985Courtesy of GENERAL MOTORS CORP.
