Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the center pillar trim panel (1) in the vehicle.
  2. Push the center pillar upper trim panel (1) in order to engage the clips.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the front seat shoulder belt guide bolt.

    Tighten

    Tighten the shoulder belt guide bolt to 41 N.m (30 lb ft).

  4. Install the front seat shoulder belt guide cover.

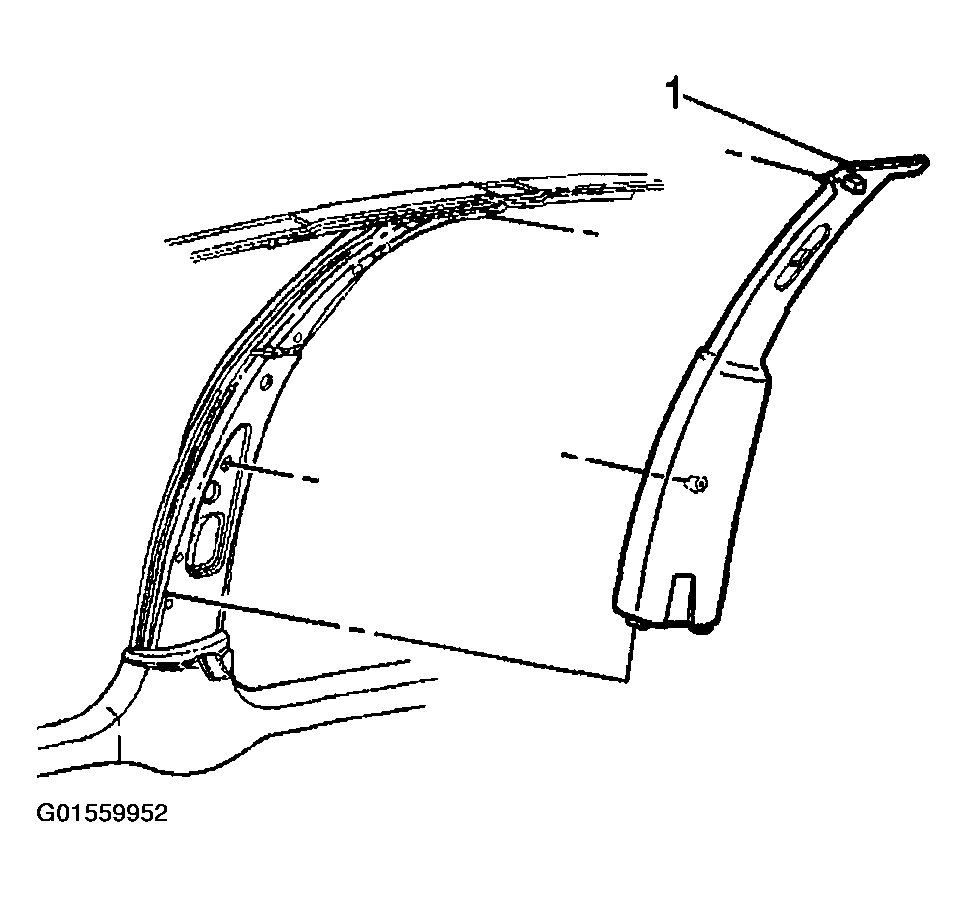

    Fig 1: Installing Center Pillar Trim Panel
    G01559952Courtesy of GENERAL MOTORS CORP.
