Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold down the rear seat backs.
  2. On sedan perform the following:
  3. On the coupe remove the quarter trim panel extensions. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER  .
  4. Lift up and remove the bezels (2) for the child tether anchors.
  5. Lift up and remove the bezel (1) for the center seat belt retractor.
  6. Route the seat belts through the T-slots (4) in the rear window trim panel (3).
  7. Route the center seat belts and bezel (1) through the opening in the trim panel (3).
  8. Remove the trim panel (3) from the rear shelf.

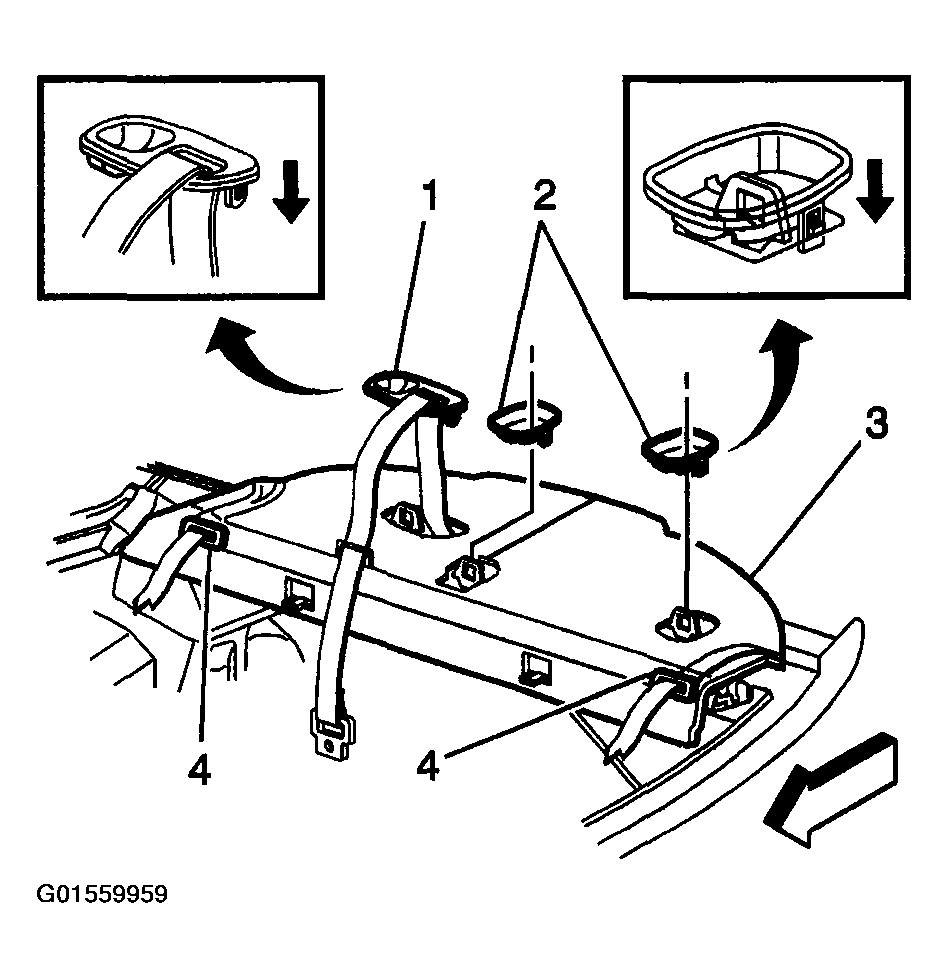

    Fig 1: Removing Bezel For Center Seat Belt Retractor
    G01559959Courtesy of GENERAL MOTORS CORP.
