Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

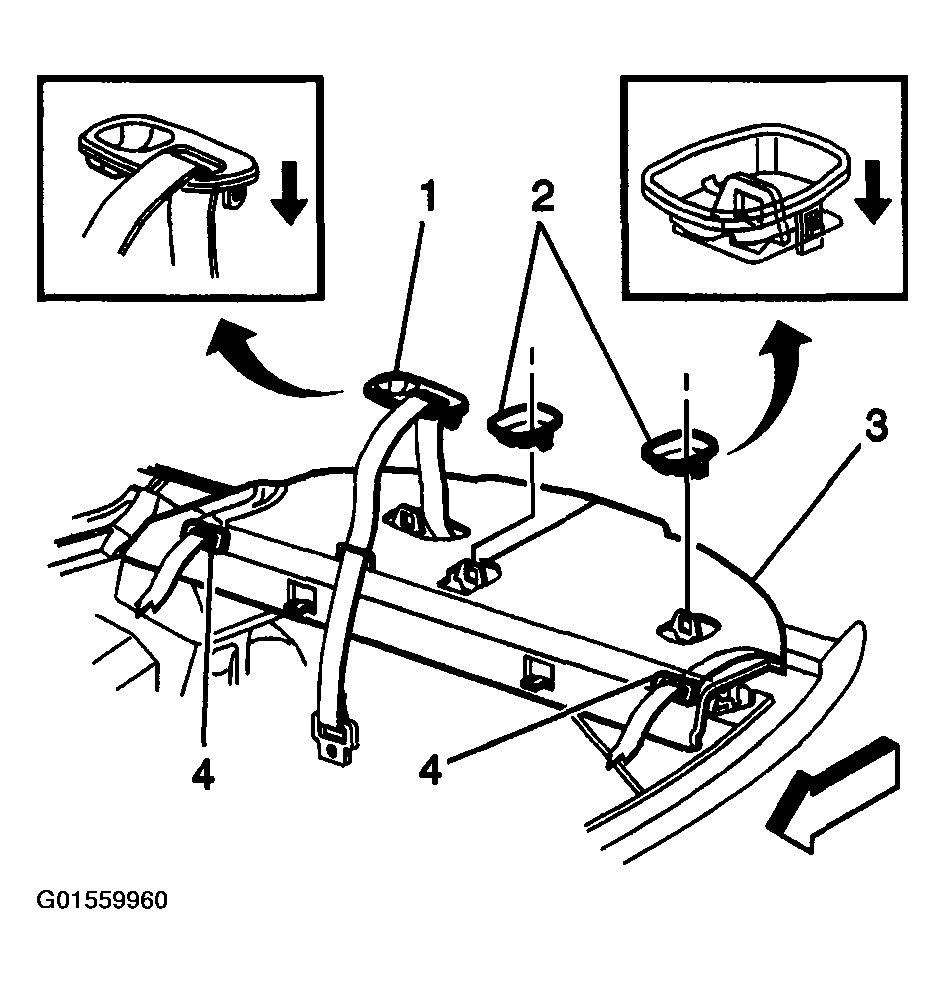

- Position the trim panel (3) in the rear shelf.
- Route the center seat belts and bezel (1) through the opening in the trim panel (3).
- Route the seat belts through the T-slots (4) in the rear window trim panel (3).
- Install the bezel (1) for the rear center seat belt retractor.
Press the bezel (1) until fully engaged into the trim panel (3).
- Install the bezels (2) for the child tether anchors.
Press the bezels (2) until fully engaged into the trim panel (3).
- On the coupe install the quarter trim panel extensions. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER .
- On sedan perform the following:
- Install the lower quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER
- Install the upper quarter trim panels. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER
- Return the rear seat backs to their upright position.
