Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel (3) into the vehicle.
  2. Route the seat belt (7) through the opening in the trim panel (3).
  3. Align the trim panel retainers with the openings in the inner quarter panel (1).
  4. Press the trim panel (3) firmly and evenly in order to engage the retainers to the inner quarter panel (1).
  5. Install the seat belt escutcheon (6) to the trim panel (3).
  6. Install the quarter trim panel extension (4).
  7. Install the push retainer (5) to the quarter trim panel extension.
  8. Install the front seat belt anchor bolt, and shoulder guide bolt. Refer to SEAT BELT RETRACTOR REPLACEMENT - FRONT (SEDAN) or SEAT BELT RETRACTOR REPLACEMENT - FRONT (COUPE) in Seat Belts.
  9. Install the coat hook. Refer to COAT HOOK REPLACEMENT  .
  10. Install the rear split folding seat back. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING in Seats.

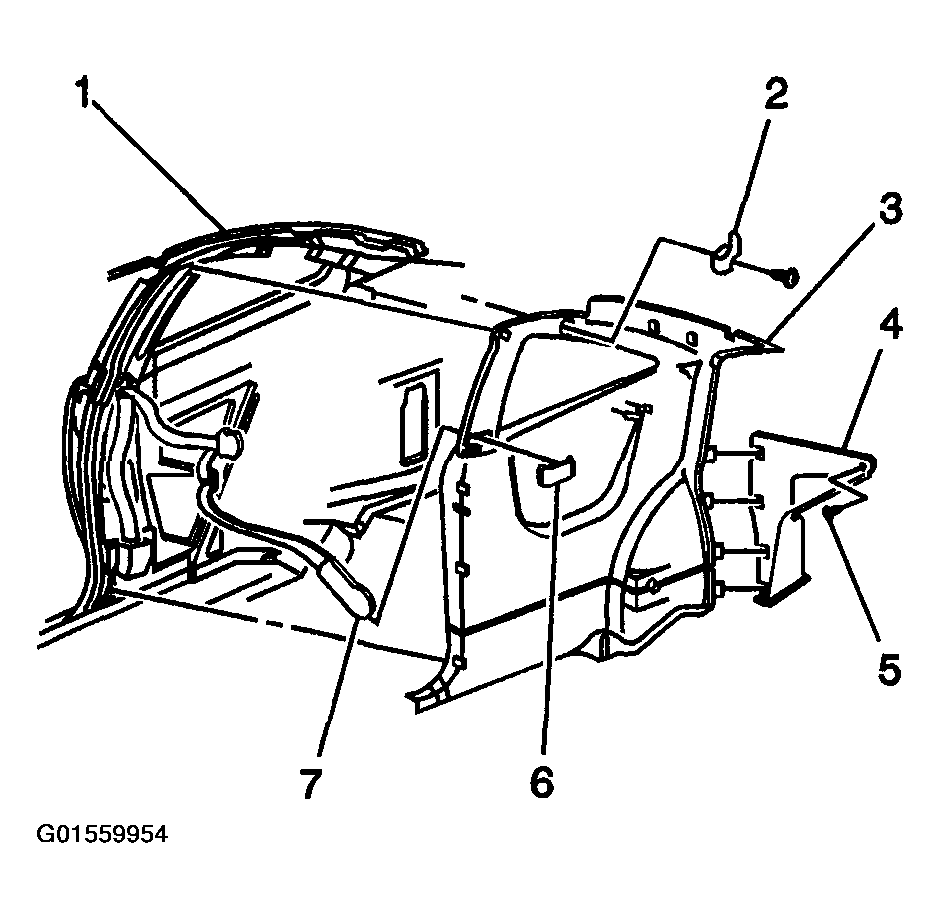

    Fig 1: Installing Pushin Retainer To Quarter Panel Extension
    G01559954Courtesy of GENERAL MOTORS CORP.
